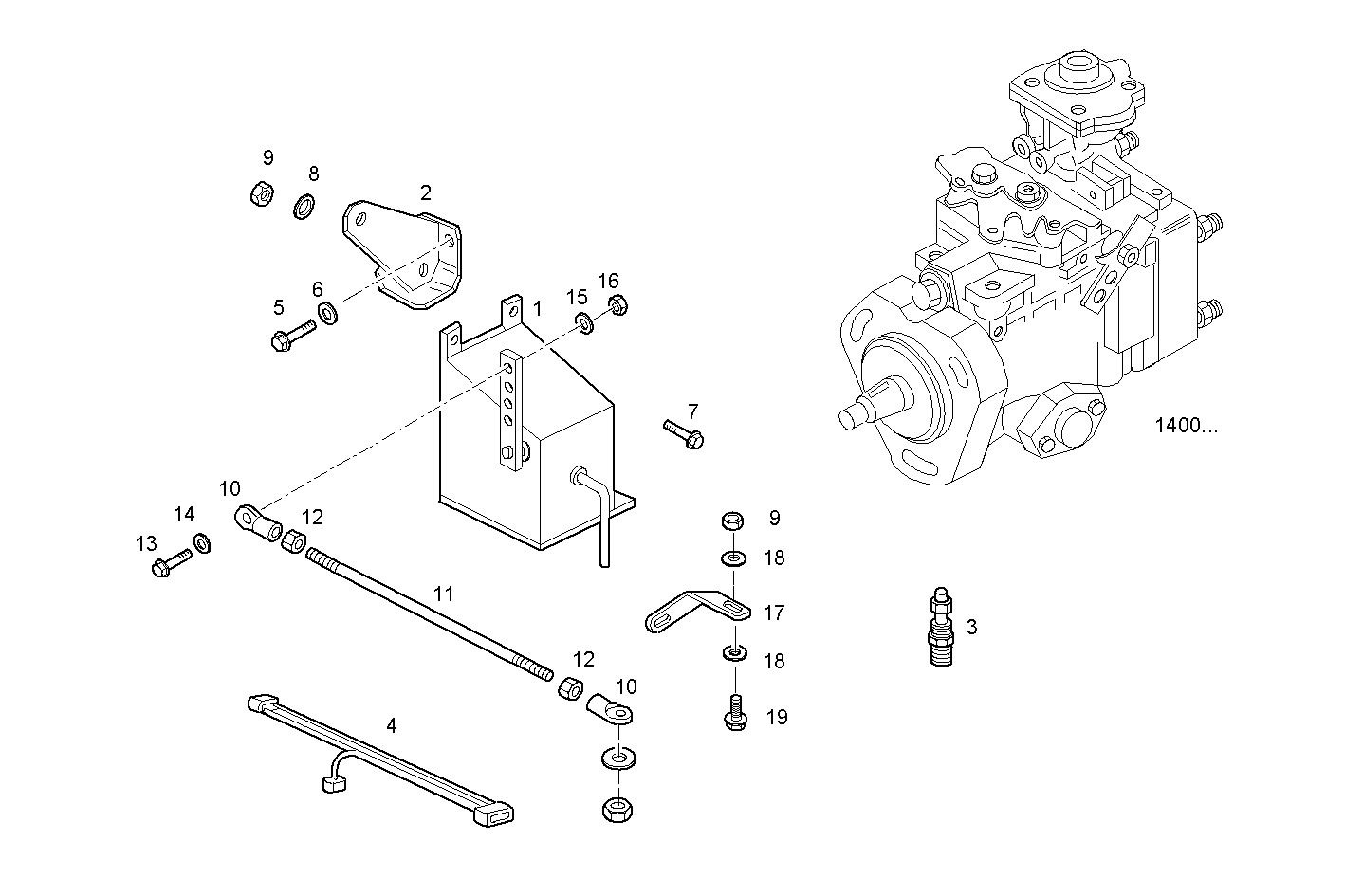

| Item |
Part number |
Description |
|
1 |
8018971 |
ENGINE ACTUATOR ASSY |
|
2 |
8027064 |
RETAINER |
|
3 |
8018673 |
PICK-UP |
|
4 |
8018968 |
ENGINE HARNESS |
|
5 |
16609825 |
HEXAGON BOLT M12X1,75X25 |
|
6 |
17091074 |
WASHER Ø12X24X2,8 MM |
|
7 |
16605734 |
HEXAGON BOLT M8X30 MM |
|
8 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
9 |
17037925 |
HEXAGON NUT M8X1,25 |
|
10 |
4934541 |
BRACE/STRUT |
|
11 |
8823237 |
TIE ROD |
|
12 |
17037821 |
HEXAGON NUT M6X1 |
|
13 |
10902633 |
HEXAGON BOLT M6X1X25 MM |
|
14 |
17094724 |
WASHER Ø6X12 MM |
|
15 |
17088474 |
WASHER Ø6X12 MM |
|
16 |
17152721 |
NUT M6 |
|
17 |
8026708 |
RETAINER |
|
18 |
17089774 |
SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
|
19 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
