8061SRi27.06

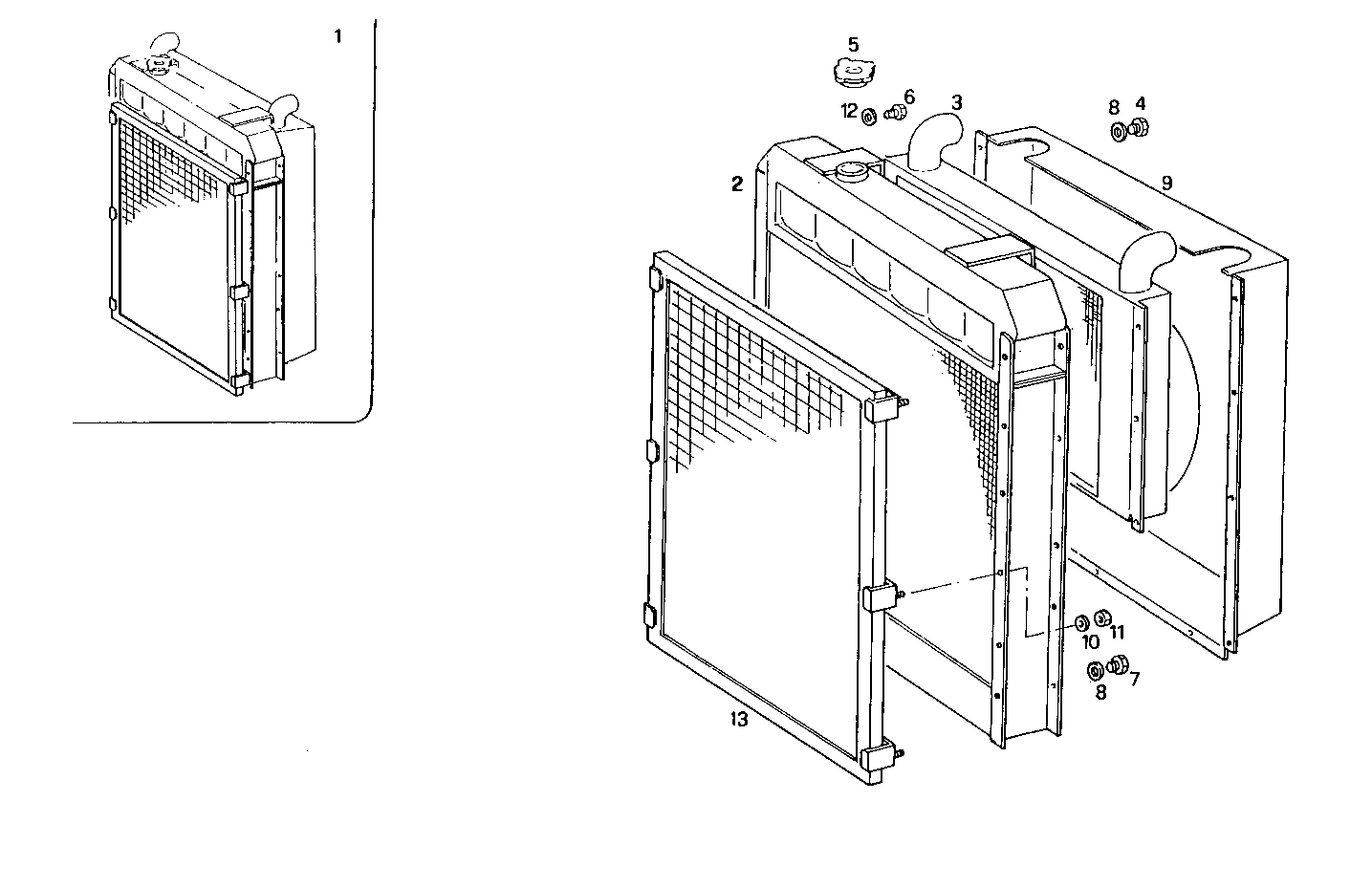

3300.021/01 RADIATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 8039037 | WATER RADIATOR |
| 1 | 8025180 | WATER RADIATOR ASSY |
| 2 | 8025288 | WATER RADIATOR |
| 3 | 8018492 | AIR/AIR INTERCOOLER |
| 4 | 8105096 | PLUG |
| 5 | 8107632 | RADIATOR PLUG |
| 6 | 16992211 | THREADED PLUG M12X1,5 |
| 7 | 16992340 | THREADED PLUG M14X1,5 |
| 8 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 9 | 8025181 | AIR HOOD |
| 10 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 11 | 17037921 | HEXAGON NUT M8X1,25 |
| 12 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 13 | 8108066 | PROTECTION |
