8061SRi27.06

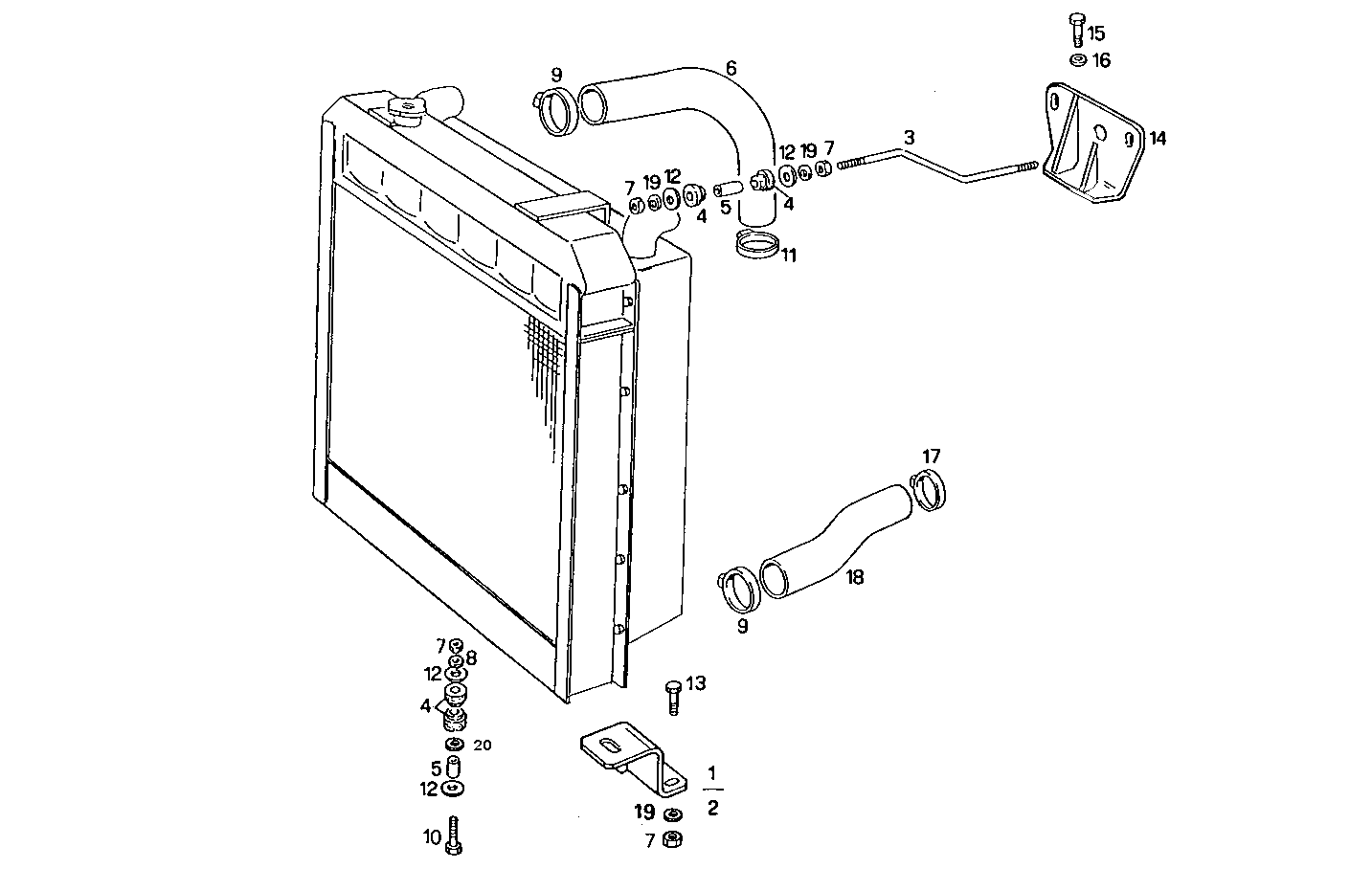

3300.030 RADIATOR

Iveco/FPT RADIATOR

Item Part number Description
1 8025187 SUPPORT LEFT
2 8025188 SUPPORT RIGHT
3 8024986 TIE ROD
4 741569 RUBBER LUG
5 8108634 SPACING BAR
6 8024991 RUBBER SLEEVE
7 17038131 HEXAGON NUT M10
8 17090174 SPRING WASHER Ø10X20 MM
9 17764991 CLIP Ø50/70 MM
10 16608524 HEXAGON BOLT M10X1,5X70 MM (8.8)
11 17764892 PIPE CLIP Ø40-60 MM
12 741570 WASHER Ø10X17 MM SP=2,3
13 16607824 HEXAGON BOLT M10X35 MM (8.8)
14 8035495 SUPPORT
15 16605424 SCREW M8X16 MM (8.8)
16 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
17 17764791 CLIP Ø32/50 MM
18 8025278 RUBBER SLEEVE
19 17090474 SPRING WASHER Ø10X27 MM SP=2,5
