8061SRi27.06

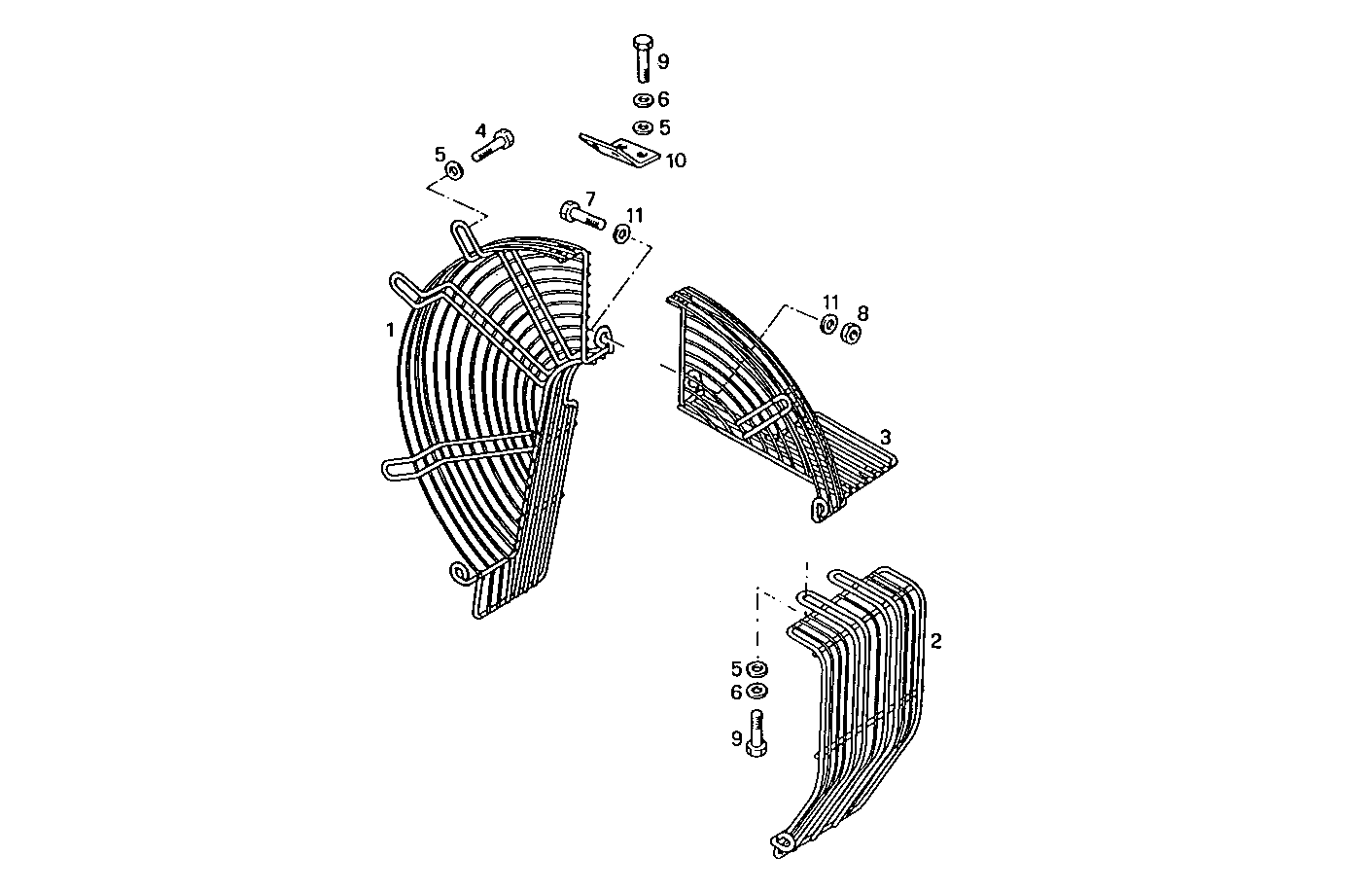

5770.029 SHIELDS
Item | Part number | Description |
---|---|---|
1 | 8025736 | PROTECTION |
2 | 8025737 | PROTECTION |
3 | 8025738 | PROTECTION |
4 | 16605534 | HEXAGON BOLT M8X20 MM (10.9) |
5 | 17089774 | SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
6 | 17088474 | WASHER Ø6X12 MM |
7 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
8 | 17037925 | HEXAGON NUT M8X1,25 |
9 | 16603734 | HEXAGON BOLT M6X20 MM |
10 | 8009454 | RETAINER |
11 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
