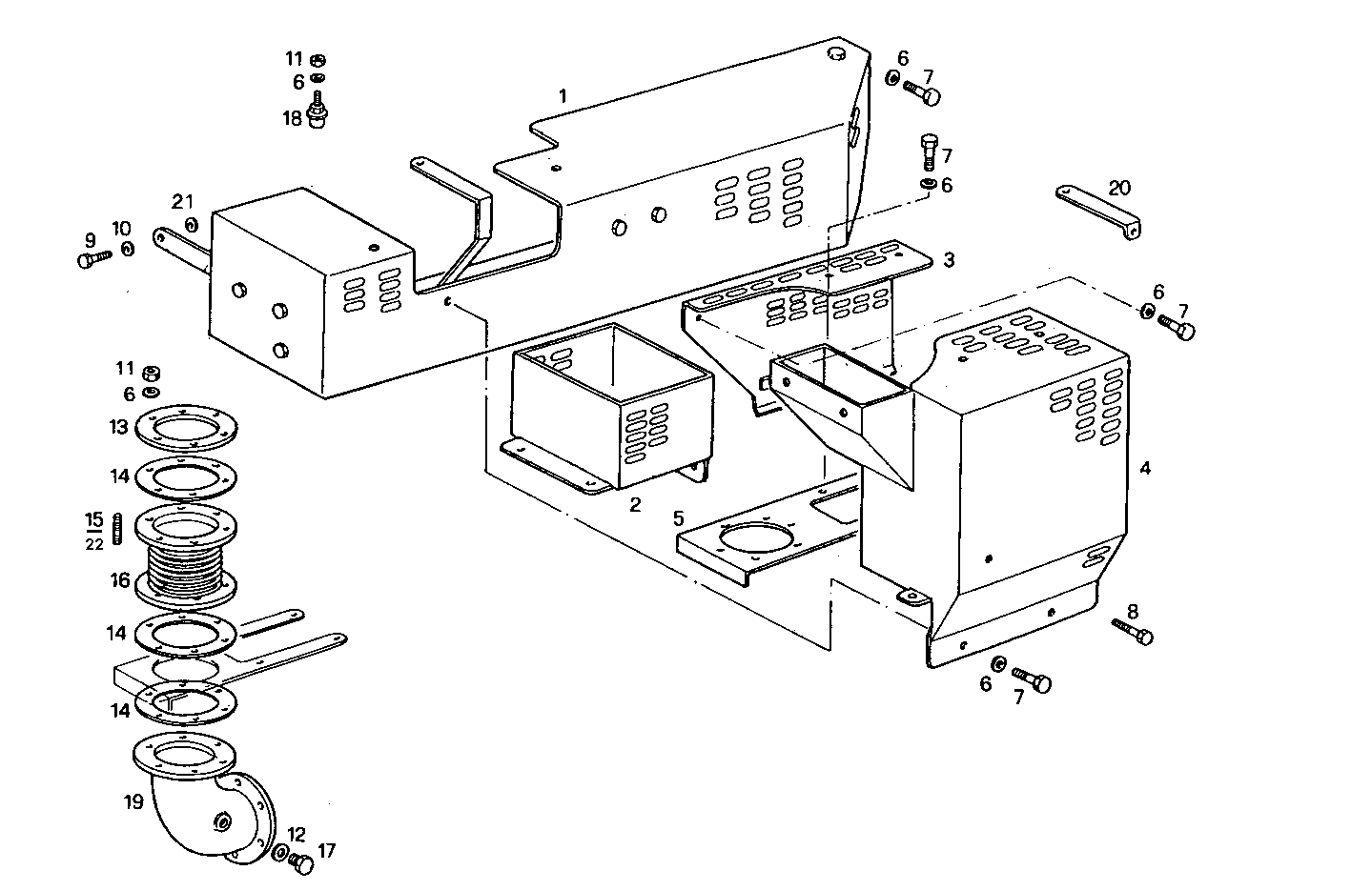

| Item |
Part number |
Description |
|
1 |
8020535 |
PROTECTION |
|
2 |
8020721 |
PROTECTION |
|
3 |
8020757 |
PROTECTION |
|
4 |
8025417 |
PROTECTION |
|
5 |
8029691 |
SUPPORT |
|
6 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
7 |
16605424 |
SCREW M8X16 MM (8.8) |
|
8 |
11306924 |
HEXAGON BOLT M10X1,25X30 MM |
|
9 |
15970524 |
HEXAGON BOLT M10X1,25X20 |
|
10 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
11 |
17037925 |
HEXAGON NUT M8X1,25 |
|
12 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
13 |
4919183 |
FLANGE |
|
14 |
8009606 |
GASKET |
|
15 |
16729524 |
STUD M8X1,25X30 |
|
16 |
4935378 |
EXHAUST BELLOWS |
|
17 |
16992211 |
THREADED PLUG M12X1,5 |
|
18 |
8009967 |
NUT |
|
19 |
8039822 |
EXHAUST ELBOW |
|
20 |
8011585 |
RETAINER |
|
21 |
16665604 |
WASHER Ø10X20 MM |
|
22 |
16729424 |
STUD M8X1,25X25 |
