8061SRi40.00

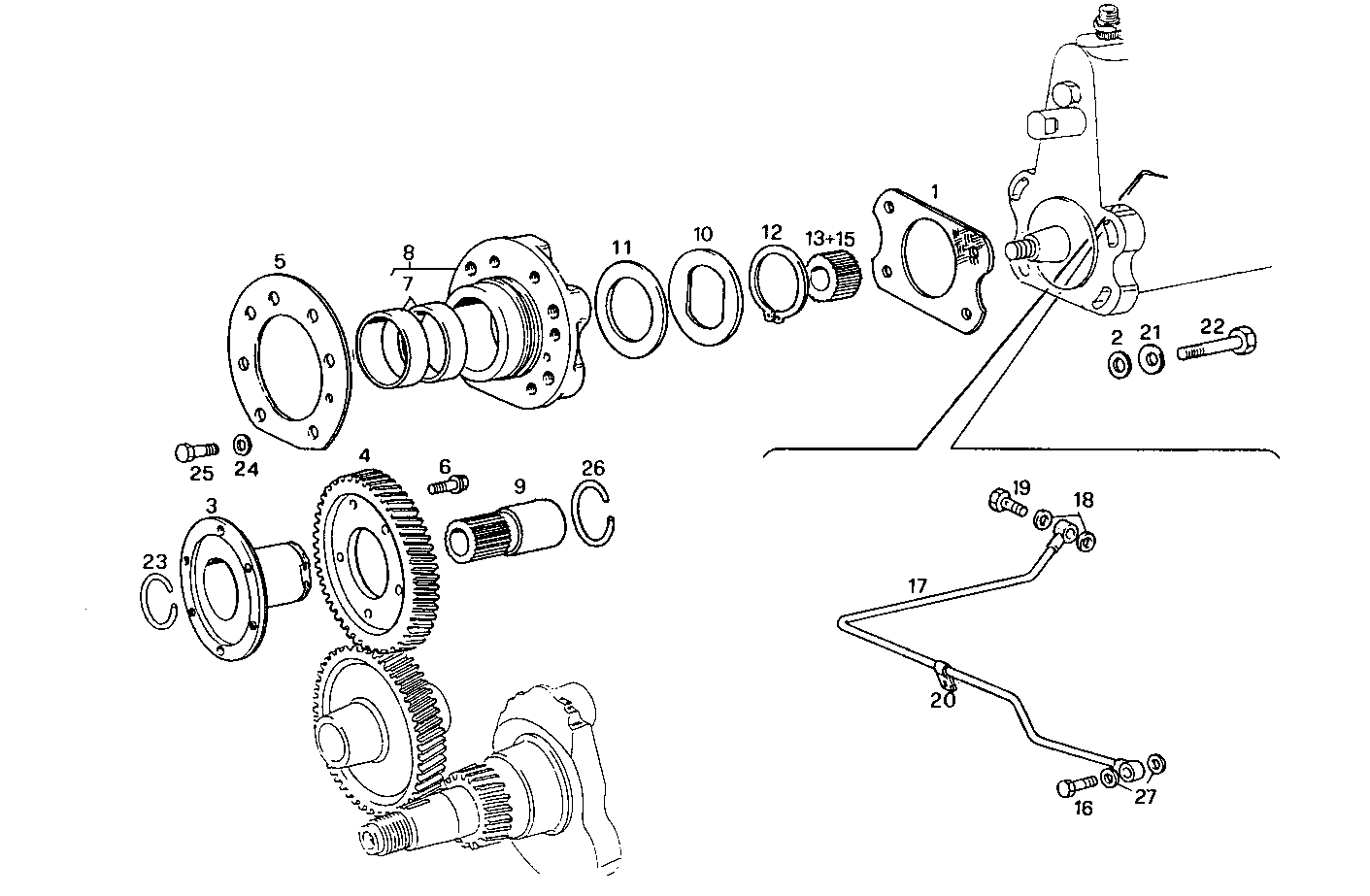

1410.107 INJECTION PUMP DRIVE

Iveco/FPT INJECTION PUMP DRIVE

Item Part number Description
1 98400793 FLAT ENGINE GASKET
2 759850 WASHER Ø10X21X2 MM
3 4785077 INJECT.PUMP SPIND
4 4769422 INJ.PUMP DRIV.GEA
5 4849996 FLAT ENGINE GASKET
6 98401723 HEXAGON BOLT M8X1,25X12 MM
7 4769427 BUSH VANDERVELL
8 4769424 SUPPORT ASSY
9 4769712 INJECT.PUMP BUSH
10 4667498 WASHER
11 4809425 WASHER Ø50 MM
12 4708213 CIRCLIP
13 4817460 BUSH 66ø30'ñ15'
14 4799482 BUSH 63ø30'ñ15'
15 4848559 BUSH 69ø30'ñ15'
16 4864079 SCREW CONNECTOR M10X1
17 98412645 OIL LINE
18 98474305 WASHER Ø10X17 MM SP=2,3
19 4864080 SCREW CONNECTOR M10X1,25
20 4804122 CLIP
21 17090174 SPRING WASHER Ø10X20 MM
22 11234721 HEXAGON BOLT M10X1,25X45 MM
23 17085376 CIRCLIP Ø30 MM
24 17094914 WASHER 8x16
25 16605624 HEXAGON BOLT M8X25 MM (8.8)
26 4770452 CIRCLIP
27 4858606 GASKET Ø10X14X1 MM
