8061SRi41.00

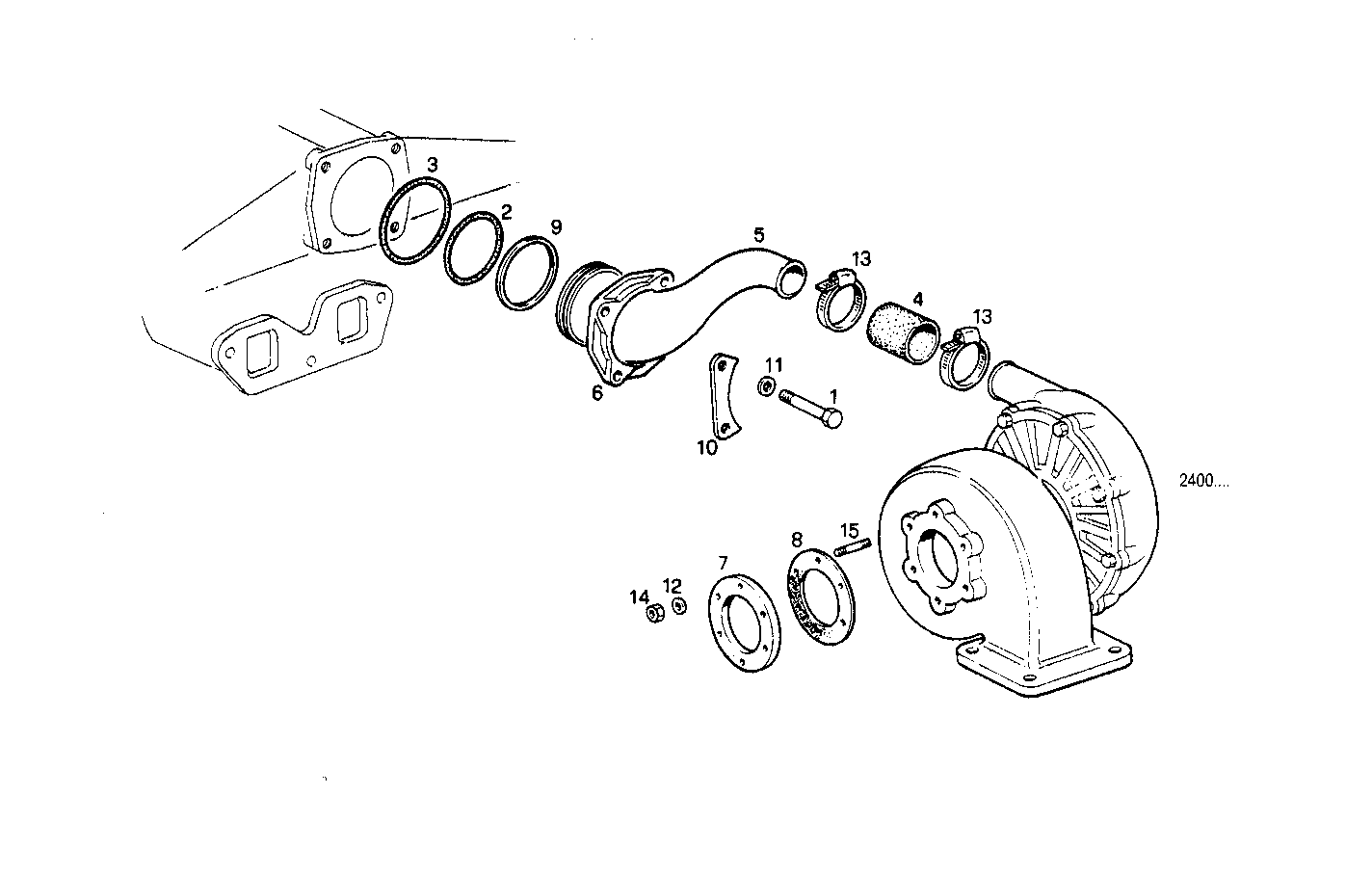

2420.105 SUPERCHARGING LINES
Item | Part number | Description |
---|---|---|
1 | 16605924 | SCREW M8X40 MM |
2 | 17290781 | O-RING Ø78,97X3,53 MM |
3 | 17291281 | O-RING Ø94,84 MM SP=3,53 MM |
4 | 98448211 | TURBOCHARGER HOSE M16X55 MM |
5 | 8013128 | AIR PIPE/DUCT |
6 | 8105950 | FLANGE |
7 | 8112930 | FLANGE |
8 | 8009489 | GASKET |
9 | 8105951 | CIRCLIP |
10 | 8105952 | PLATE |
11 | 17094914 | WASHER 8x16 |
12 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
13 | 4788416 | CLIP |
14 | 17037931 | HEXAGON NUT M8X1,25 |
15 | 16729524 | STUD M8X1,25X30 |
