8061SRi41.00

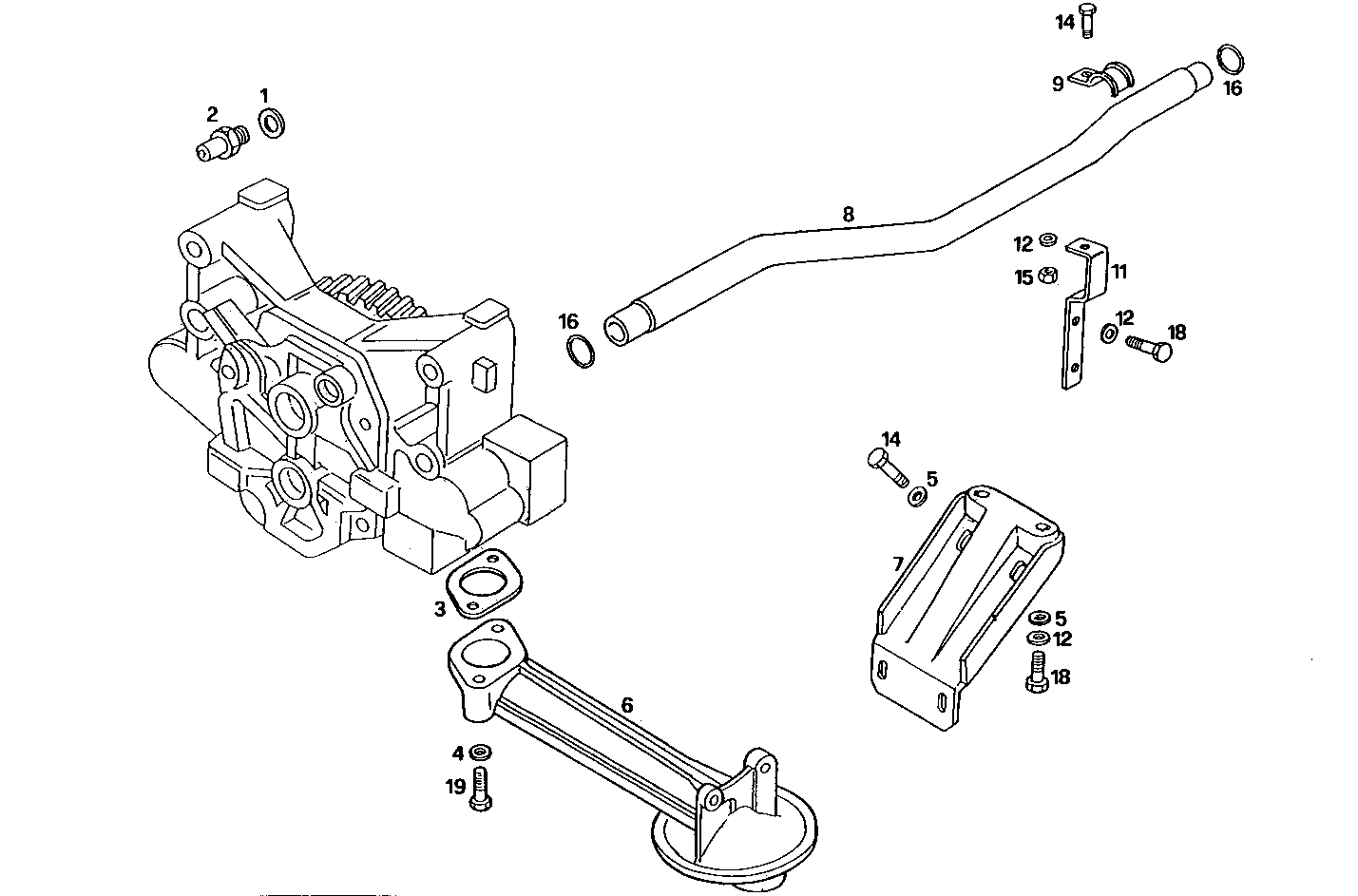

3010.166 LUBE OIL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 561293 | O-RING |
| 2 | 4785501 | SCREW CONNECTOR M10X1,25 |
| 3 | 4850953 | FLAT ENGINE GASKET |
| 4 | 17094914 | WASHER 8x16 |
| 5 | 12646704 | WASHER Ø8X21X1,5 MM |
| 6 | 98492949 | SUCTION STRAINER |
| 7 | 4817571 | RETAINER |
| 8 | 99486858 | OIL LINE |
| 9 | 500304834 | CLIP |
| 11 | 500304806 | FASTENING BRACKET |
| 12 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 14 | 16605524 | HEXAGON BOLT M8X20 MM |
| 15 | 17157021 | NUT M8X1,25 |
| 16 | 17282181 | O-RING Ø21,8 MM SP=2,6 MM |
| 18 | 16605424 | SCREW M8X16 MM (8.8) |
| 19 | 16606024 | SCREW M8X45 MM |
