8061SRi41.00

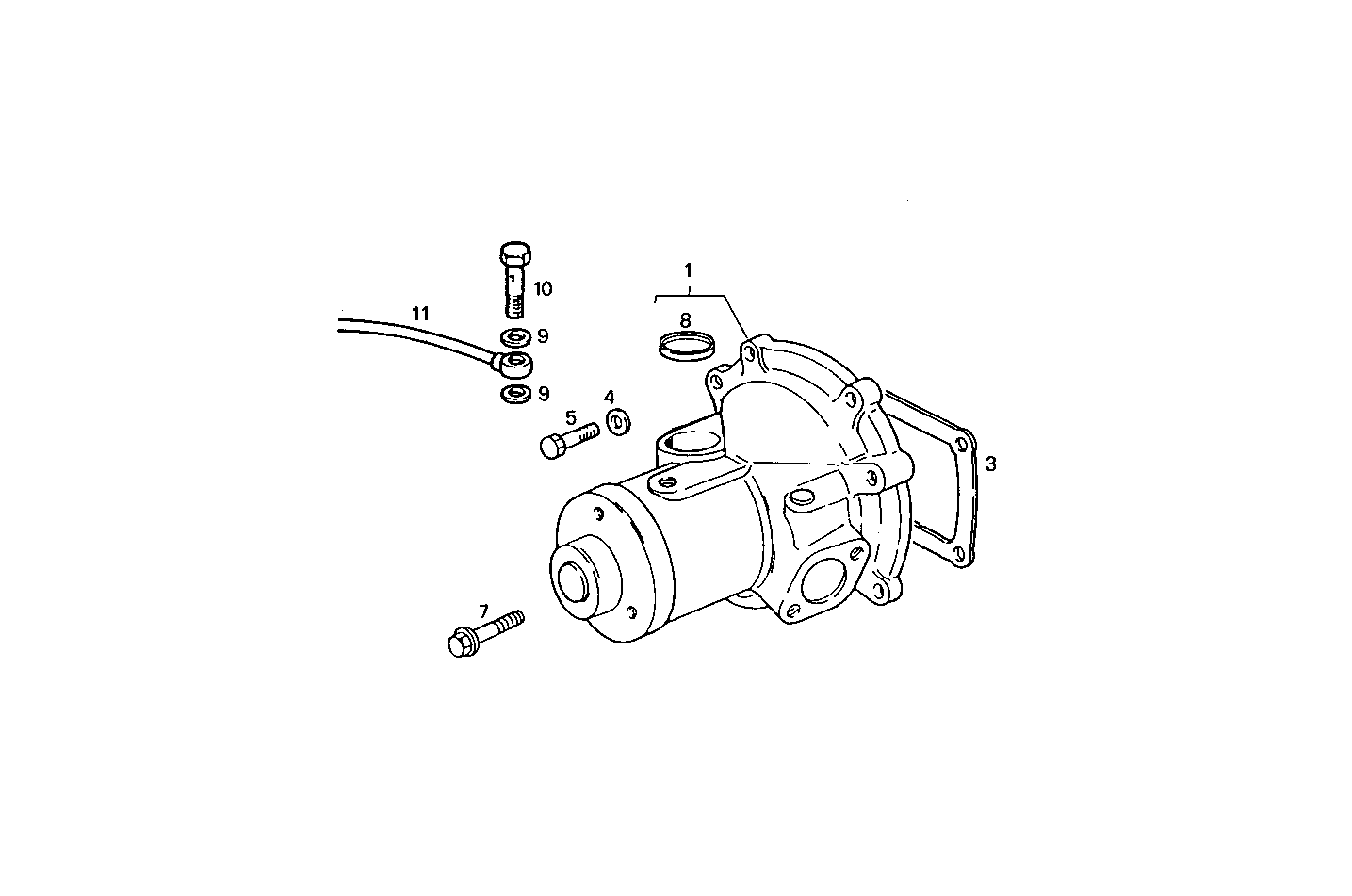

3200.099 WATER PUMP
Item | Part number | Description |
---|---|---|
1 | 8013363 | WATER PUMP ASSY |
3 | 98400776 | FLAT ENGINE GASKET |
4 | 17090174 | SPRING WASHER Ø10X20 MM |
5 | 15888721 | HEXAGON BOLT M10X1,25X55 MM |
7 | 16288624 | HEXAGON BOLT M10X1,25X35 MM |
8 | 8013358 | PLUG |
9 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
10 | 8009696 | SCREW CONNECTOR M12X1,5X25 |
11 | 8013424 | WATER PIPE |
