8061SRi41.00

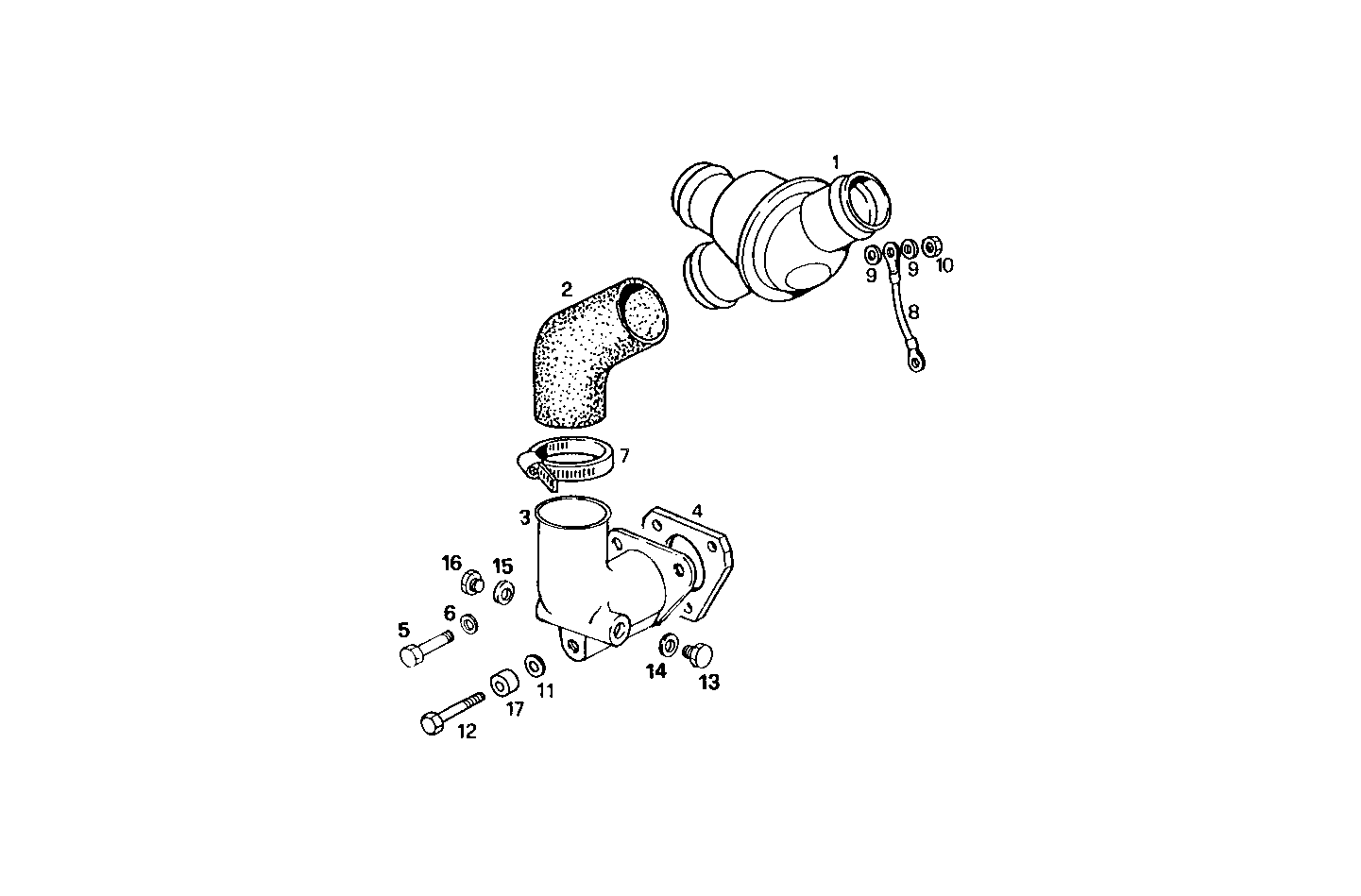

3220.114 THERMOSTAT
| Item | Part number | Description |
|---|---|---|
| 1 | 8819078 | THERMOSTAT |
| 2 | 4787630 | RUBBER SLEEVE |
| 3 | 8029664 | WATER PIPE |
| 4 | 4851926 | FLAT ENGINE GASKET |
| 5 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
| 6 | 17095004 | WASHER Ø10X18X2 MM |
| 7 | 17764891 | CLIP Ø40/60 MM |
| 8 | 8028546 | EARTH WIRE |
| 9 | 17094504 | WASHER Ø5,3X10 MM |
| 10 | 17037721 | NUT M5X0,8 |
| 11 | 17090174 | SPRING WASHER Ø10X20 MM |
| 12 | 15971821 | SCREW M10X1,25X100 |
| 13 | 16992611 | THREADED PLUG M22X1,5 |
| 14 | 16570660 | SEAL GASKET Ø22 MM |
| 15 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 16 | 16992311 | LOCK PLUG M14X1,5 |
| 17 | 4930712 | SPACING BAR |
