8061SRi41.00

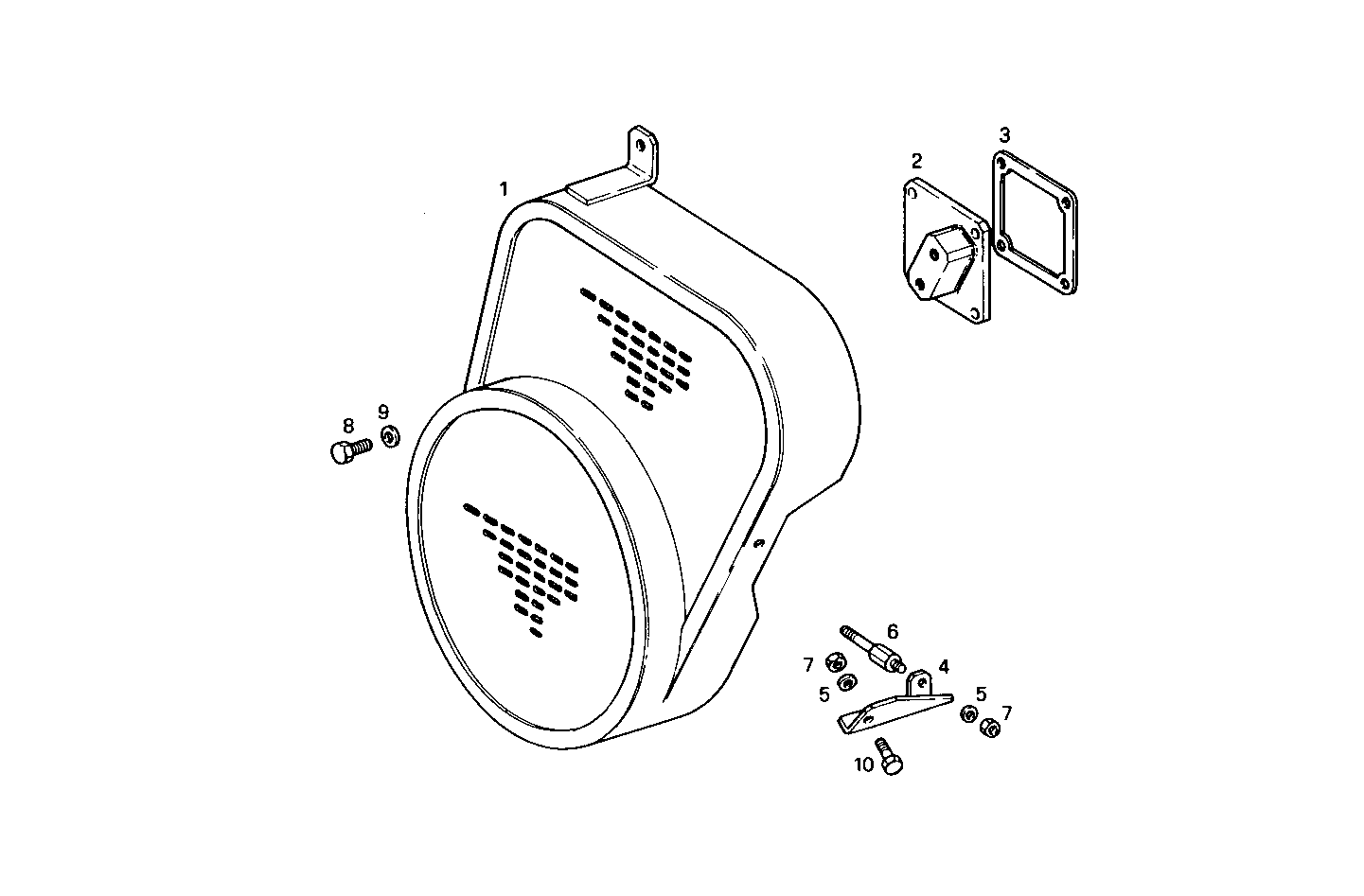

A48020036 GUARD - for pulley/belts
| Item | Part number | Description |
|---|---|---|
| 1 | 8029703 | PROTECTION |
| 2 | 8028090 | SUPPORT |
| 3 | 500378759 | FLAT ENGINE GASKET ASSY |
| 4 | 8107877 | RETAINER |
| 5 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 6 | 8029862 | SPACING BAR |
| 7 | 17037931 | HEXAGON NUT M8X1,25 |
| 8 | 15970521 | HEXAGON BOLT M10X20 MM |
| 9 | 17090074 | SPRING WASHER Ø10X20X1,9 MM |
| 10 | 16605424 | SCREW M8X16 MM (8.8) |
