8061SRM24.00

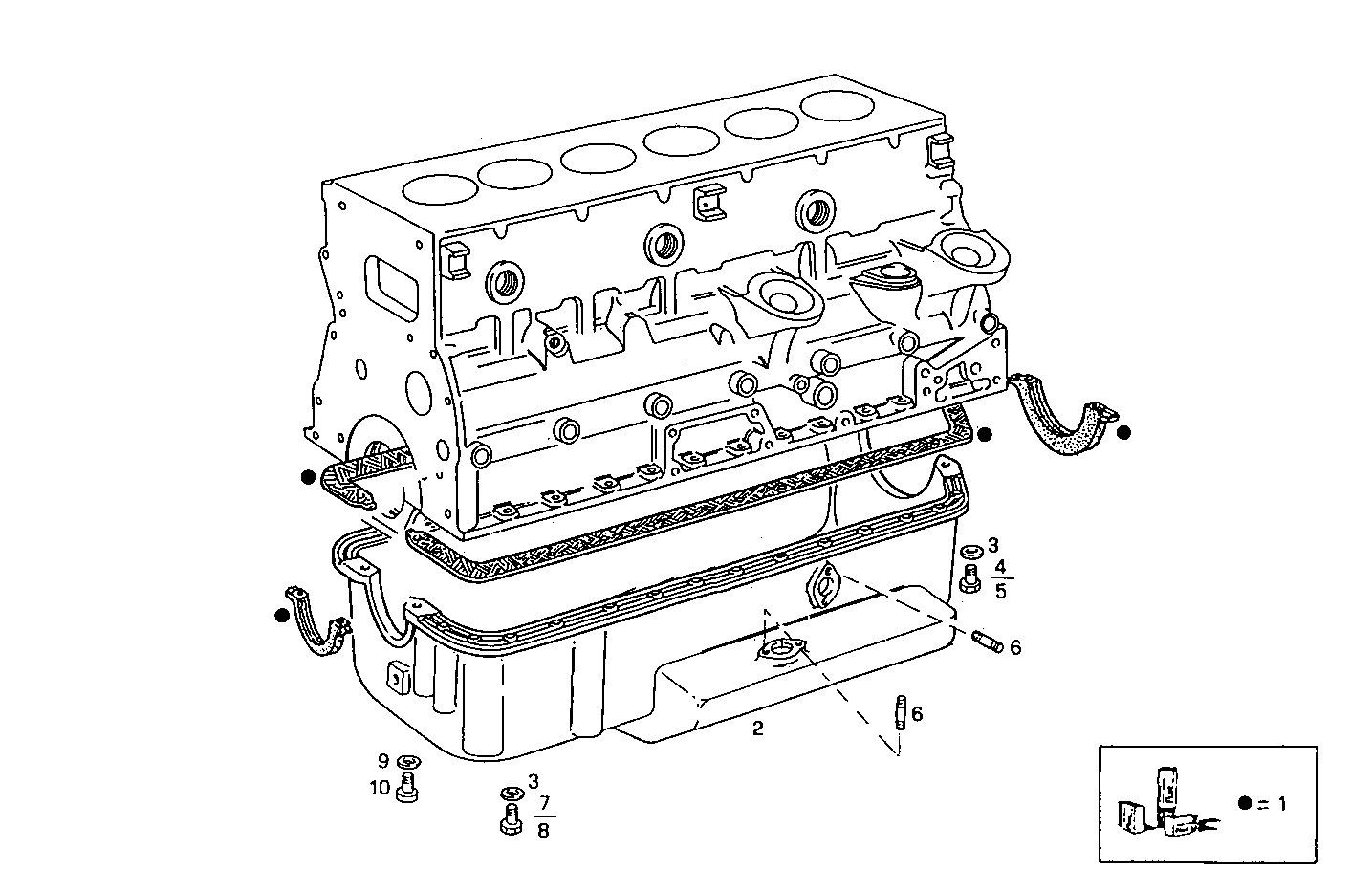

0420.014 OIL SUMP
Item | Part number | Description |
---|---|---|
1 | 1907561 | KIT-OILSUMP GASKET |
2 | 8113570 | OIL SUMP ASSY |
3 | 17095104 | WASHER Ø10X21X2 MM |
4 | 10923621 | HEXAGON BOLT M10X1,25X35 MM |
5 | 11343824 | HEXAGON BOLT M10X1,25X50 MM |
6 | 16744621 | STUD |
7 | 15971824 | SCREW M10X1,25X100 |
8 | 15970924 | HEXAGON BOLT M10X1,25X35 MM |
9 | 14308124 | SCREW |
10 | 17095004 | WASHER Ø10X18X2 MM |
