8061SRM24.00

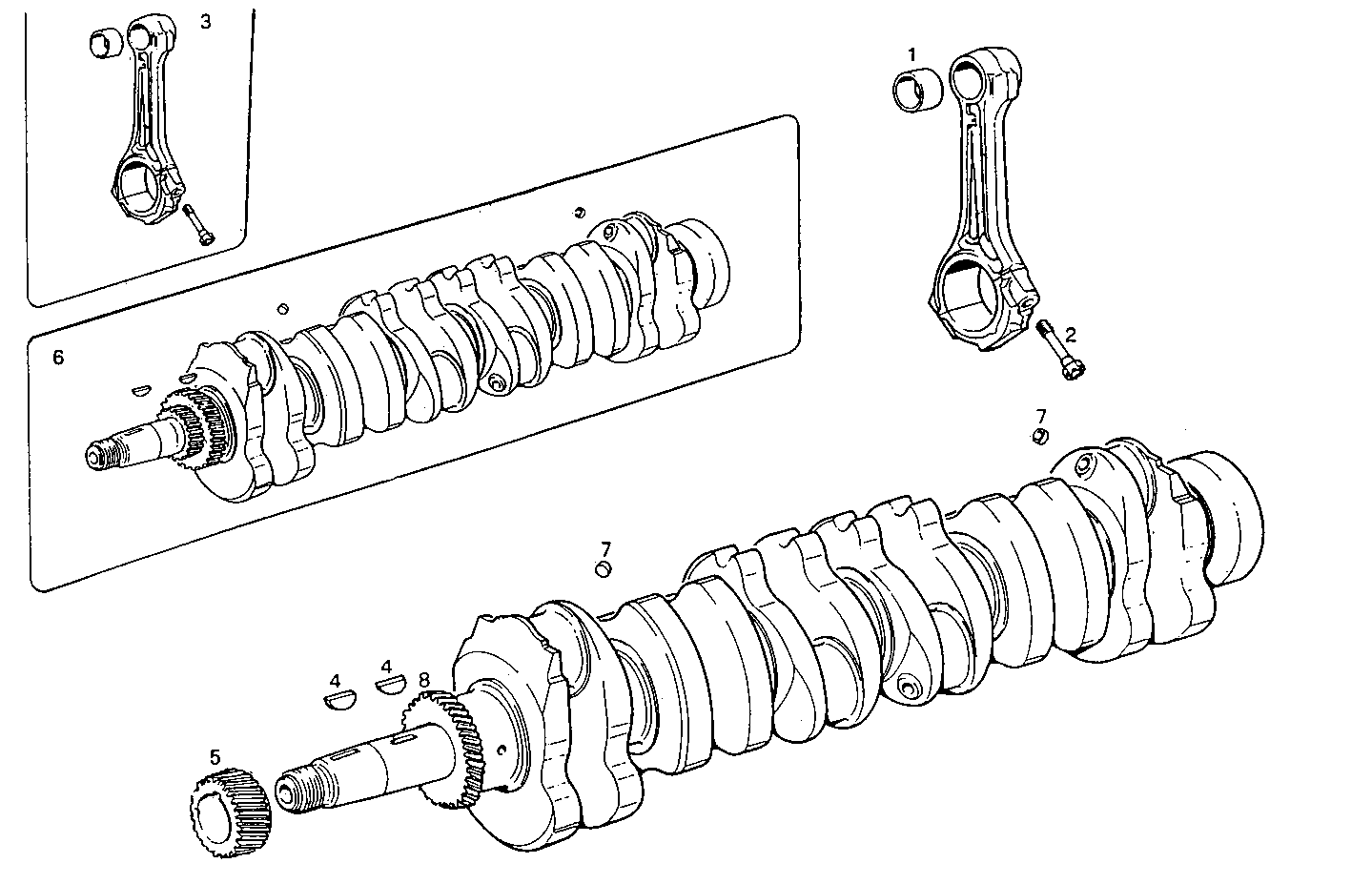

0800.062 CRANK SHAFT - CONNECTING RODS
Item | Part number | Description |
---|---|---|
1 | 98459977 | BIG-END BUSH VANDERVELL |
2 | 4780627 | BIG-END BOLT |
3 | 4781342 | CONN.ROD ASSY. |
4 | 4655844 | KEY |
5 | 4809524 | TIMING DRIVE GEAR |
6 | 4785107 | CRANK SHAFT ASSY |
7 | 14328101 | LOCK PLUG Ø8 MM |
8 | 4770255 | OIL PUMP DRIV.GEA |
