8061SRM24.00

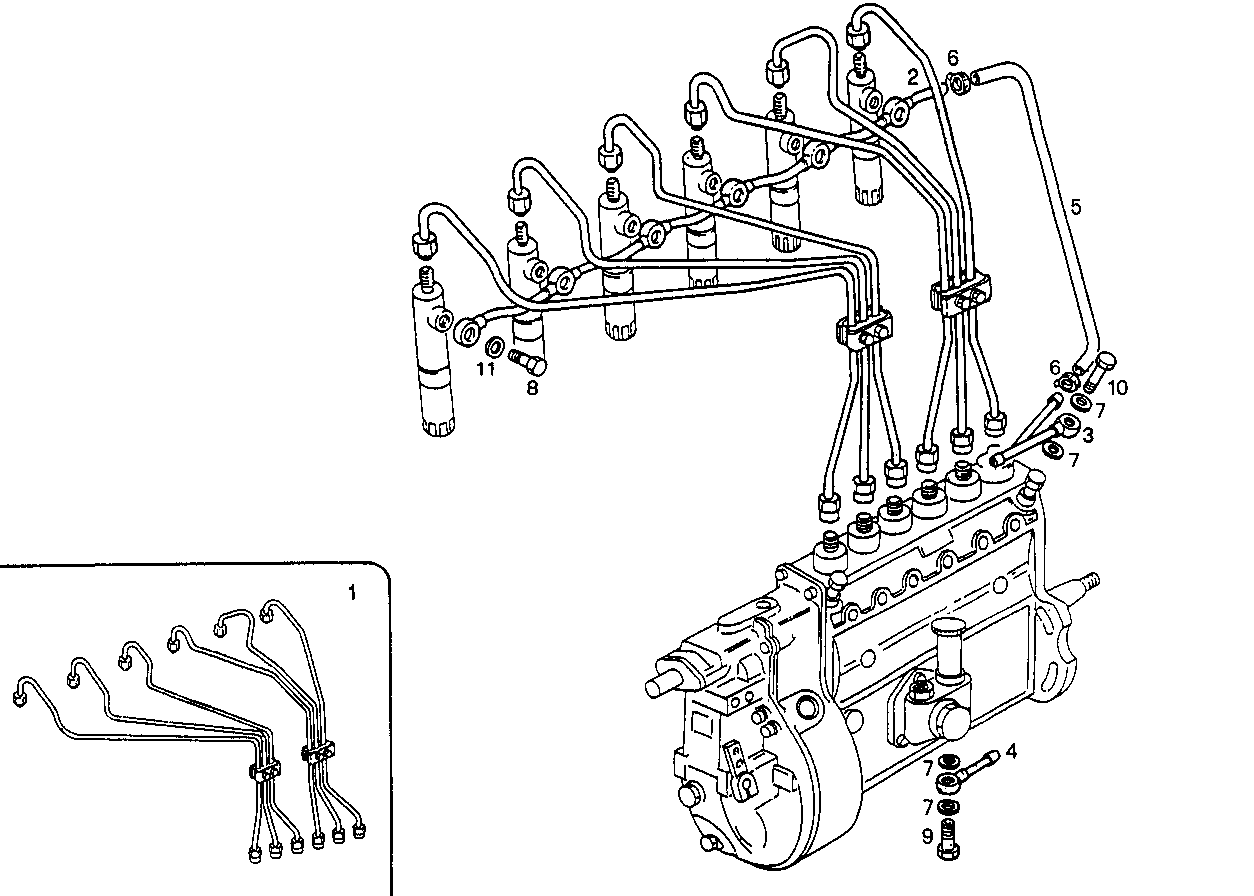

2020.009 INJECTION PIPES
| Item | Part number | Description |
|---|---|---|
| 1 | 8108212 | INJECTION LINE SET |
| 2 | 4788070 | INJECTION LINE 1C [up to 31-08-02] |
| 3 | 4927237 | PIPE SOCKET |
| 4 | 79010214 | PIPE SOCKET 1C |
| 5 | 8100143 | RUBBER SLEEVE |
| 6 | 17764293 | CLIP Ø10/16 MM |
| 7 | 98474308 | SEAL GASKET Ø14X22 MM |
| 8 | 93190600 | SCREW CONNECTOR M6 |
| 9 | 4932014 | PIPE SOCKET |
| 10 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
| 11 | 1118641 | WASHER Ø6X10 MM |
