8061SRM24.00

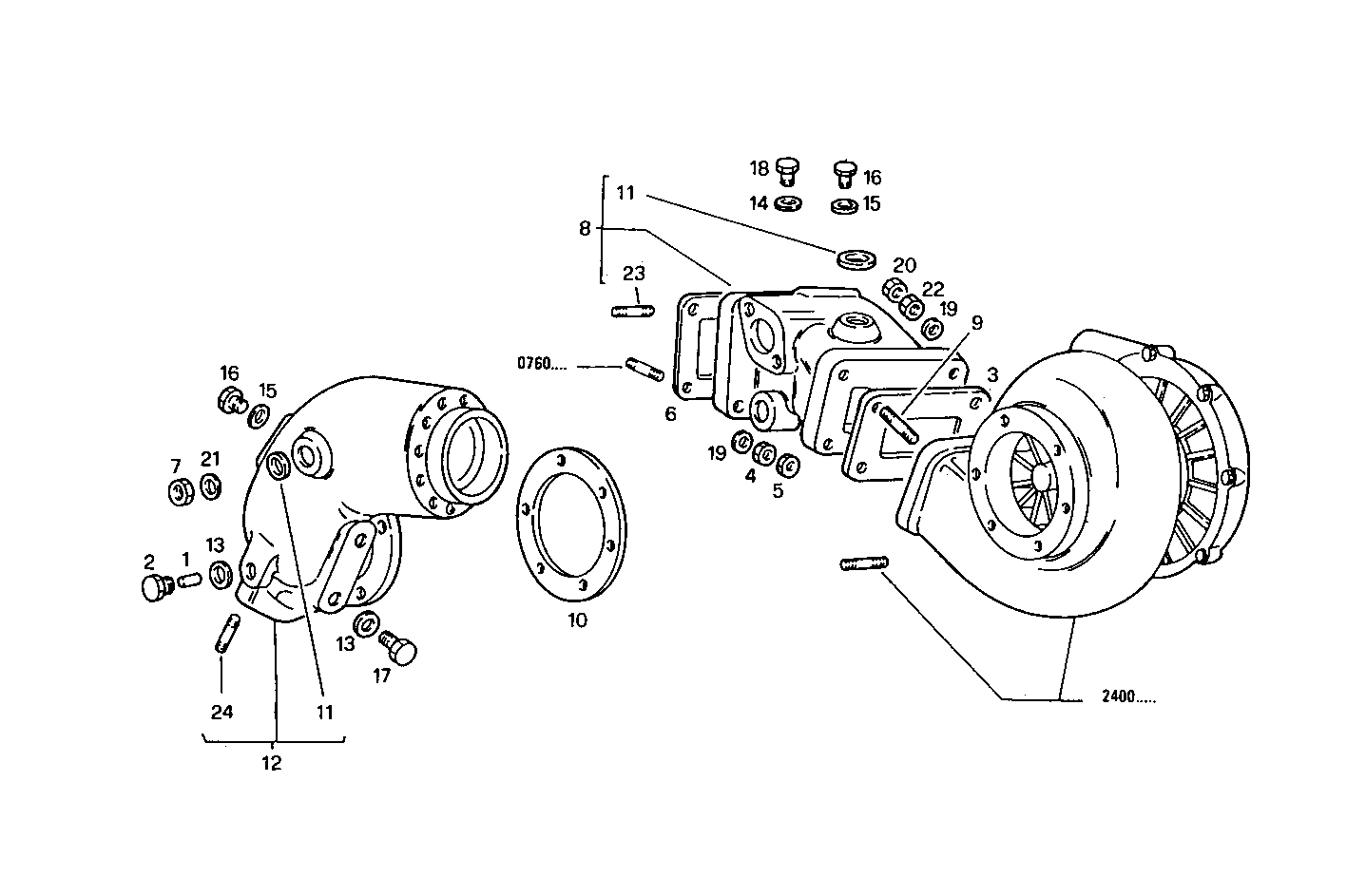

2420.008 SUPERCHARGING LINES

Iveco/FPT SUPERCHARGING LINES

Item Part number Description
1 8105277 SACRIFICAL ANODE Ø14 MM
2 4917793 PLUG M18
3 4632123 GASKET
4 4927248 NUT M10X1,25
5 8100961 NUT M10X1,25
6 8009603 GASKET
7 17037931 HEXAGON NUT M8X1,25
8 8100211 EXHAUST ELBOW ASSY
9 8100212 STUD
10 8107311 GASKET
11 14282470 LOCK PLUG Ø28 MM
12 8113434 EXHAUST COOL. ELBOW ASSY
13 10259960 WASHER Ø18,2X24 MM SP=1,5 MM
14 10257060 SEAL GASKET Ø16X22 MM SP=1,5 MM
15 10298460 SEAL GASKET Ø12X18 MM SP=1,5 MM
16 10300540 PLUG M12X1,5
17 10300840 LOCK PLUG M18X1,5
18 16992440 THREADED PLUG M16X1,5
19 10730501 WASHER Ø10,2 MM
20 10791021 HEXAGON NUT M10X1,25
21 11194071 WASHER Ø8X16X1,9 MM
22 17038221 HEXAGON NUT M10
23 13516821 STUD M8X12X20 MM
24 13517021 STUD M8X25 MM
