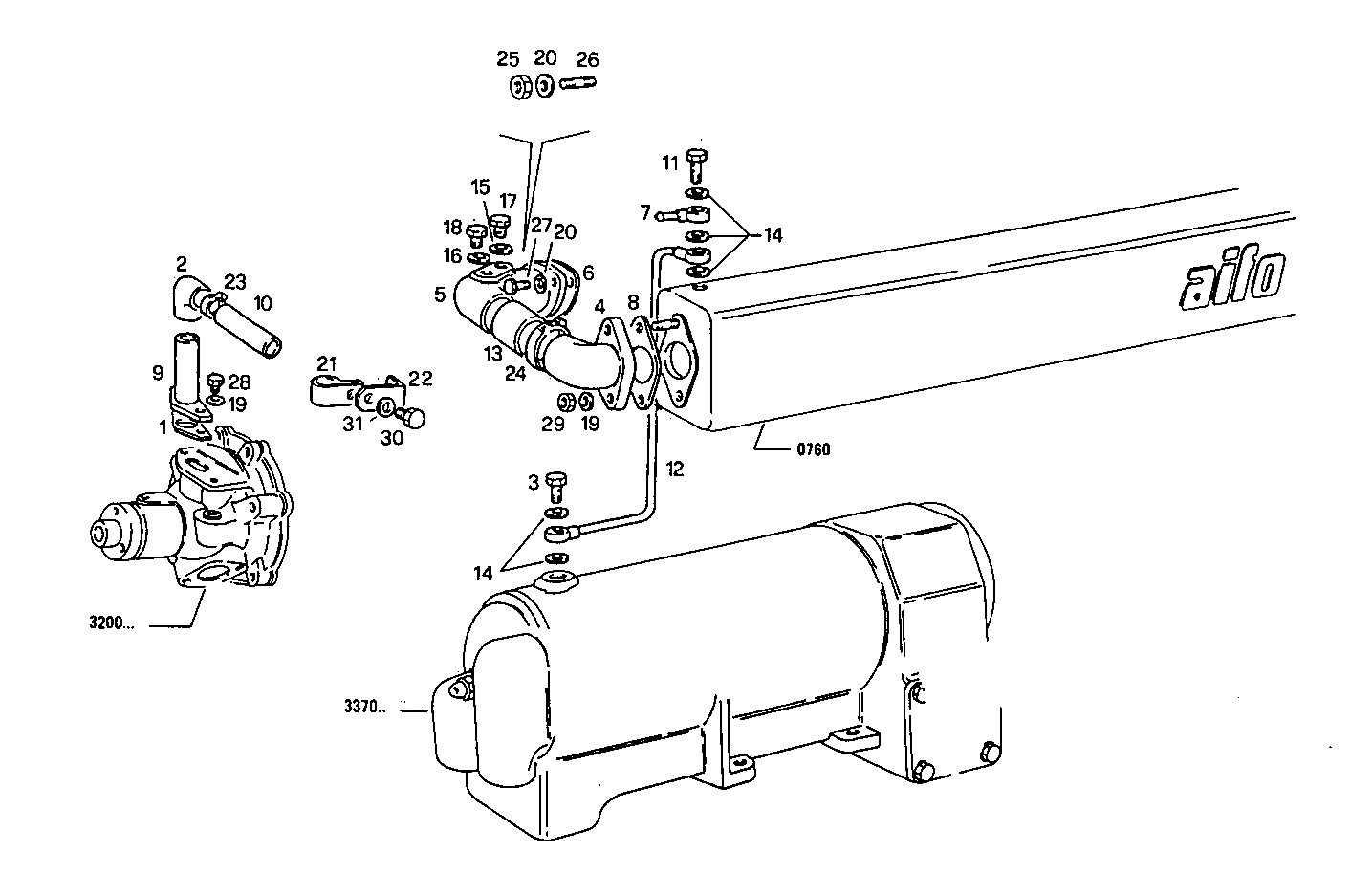

Item |
Part number |
Description |
1 |
4767560 |
GASKET |
2 |
4930352 |
WATER HOSE |
3 |
8009696 |
SCREW CONNECTOR M12X1,5X25 |
4 |
4919235 |
WATER PIPE |
5 |
4919685 |
WATER PIPE |
6 |
4770933 |
GASKET |
7 |
4636689 |
SWIVEL COUPLING |
8 |
4918835 |
GASKET |
9 |
8113806 |
WATER PIPE |
10 |
8113951 |
WATER PIPE |
11 |
8113807 |
PIPE SOCKET |
12 |
8108307 |
WATER PIPE |
13 |
10136587 |
WATER HOSE |
14 |
10298460 |
SEAL GASKET Ø12X18 MM SP=1,5 MM |
15 |
10278660 |
SEAL GASKET Ø16X22 MM SP=1 MM |
16 |
10279560 |
SEAL GASKET Ø22,2 MM |
17 |
16992440 |
THREADED PLUG M16X1,5 |
18 |
10305140 |
LOCK PLUG M22X1,5 |
19 |
11194079 |
SPRING WASHER Ø8X16 MM SP=1,9 MM |
20 |
11198371 |
SPRING WASHER Ø10X20 MM |
21 |
4936741 |
CLIP |
22 |
8102227 |
RETAINER |
23 |
17764592 |
CLIP Ø20/32 MM |
24 |
12177090 |
CLIP Ø32-52 MM |
25 |
12164711 |
HEXAGON NUT M10X1,25 |
26 |
13449521 |
STUD M10X15X25 |
27 |
15004021 |
HEXAGON BOLT M10X1,25X25 MM |
28 |
16043124 |
SCREW M8X14 MM |
29 |
17037931 |
HEXAGON NUT M8X1,25 |
30 |
10902121 |
HEXAGON BOLT M6X14 MM |
31 |
17088474 |
WASHER Ø6X12 MM |
