8061SRM24.00

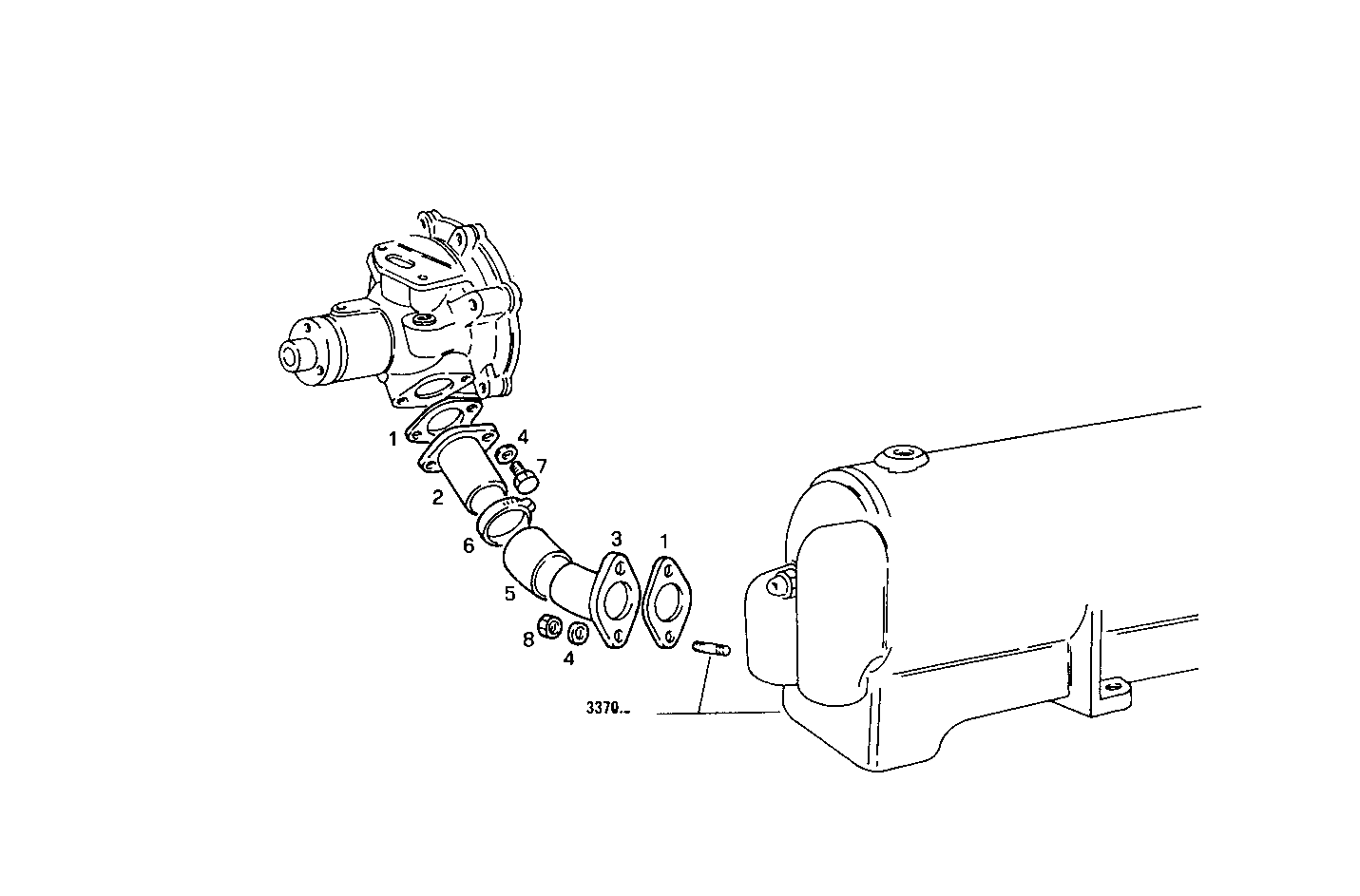

3210.015/02 WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 4599562 | FLAT ENGINE GASKET |
| 2 | 8100244 | WATER PIPE |
| 3 | 8100081 | WATER PIPE |
| 4 | 11194079 | SPRING WASHER Ø8X16 MM SP=1,9 MM |
| 5 | 17742687 | RUBBER SLEEVE |
| 6 | 12177090 | CLIP Ø32-52 MM |
| 7 | 16043421 | HEXAGON BOLT M8X20 MM |
| 8 | 17037931 | HEXAGON NUT M8X1,25 |
