8061SRM24.00

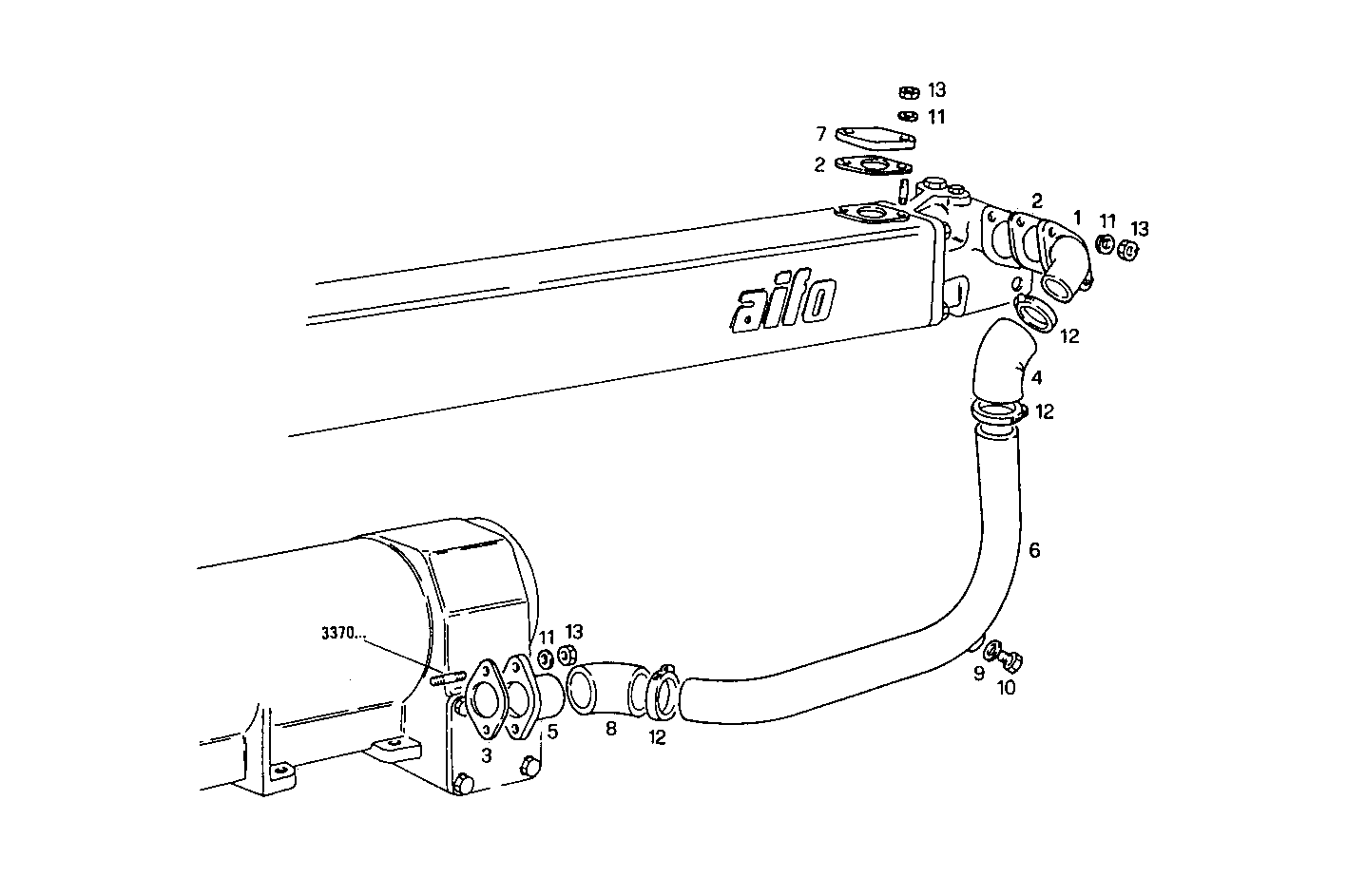

3210.015/03 WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 4919235 | WATER PIPE |
| 2 | 4918835 | GASKET |
| 3 | 4599562 | FLAT ENGINE GASKET |
| 4 | 4604779 | WATER HOSE |
| 5 | 8100081 | WATER PIPE |
| 6 | 8108306 | WATER PIPE |
| 7 | 8100154 | COVER |
| 8 | 10136187 | RUBBER SLEEVE |
| 9 | 10284460 | SEAL GASKET Ø10X16 MM |
| 10 | 11903040 | LOCK PLUG M10X1 |
| 11 | 11194079 | SPRING WASHER Ø8X16 MM SP=1,9 MM |
| 12 | 12177090 | CLIP Ø32-52 MM |
| 13 | 17037931 | HEXAGON NUT M8X1,25 |
