8061SRM24.00

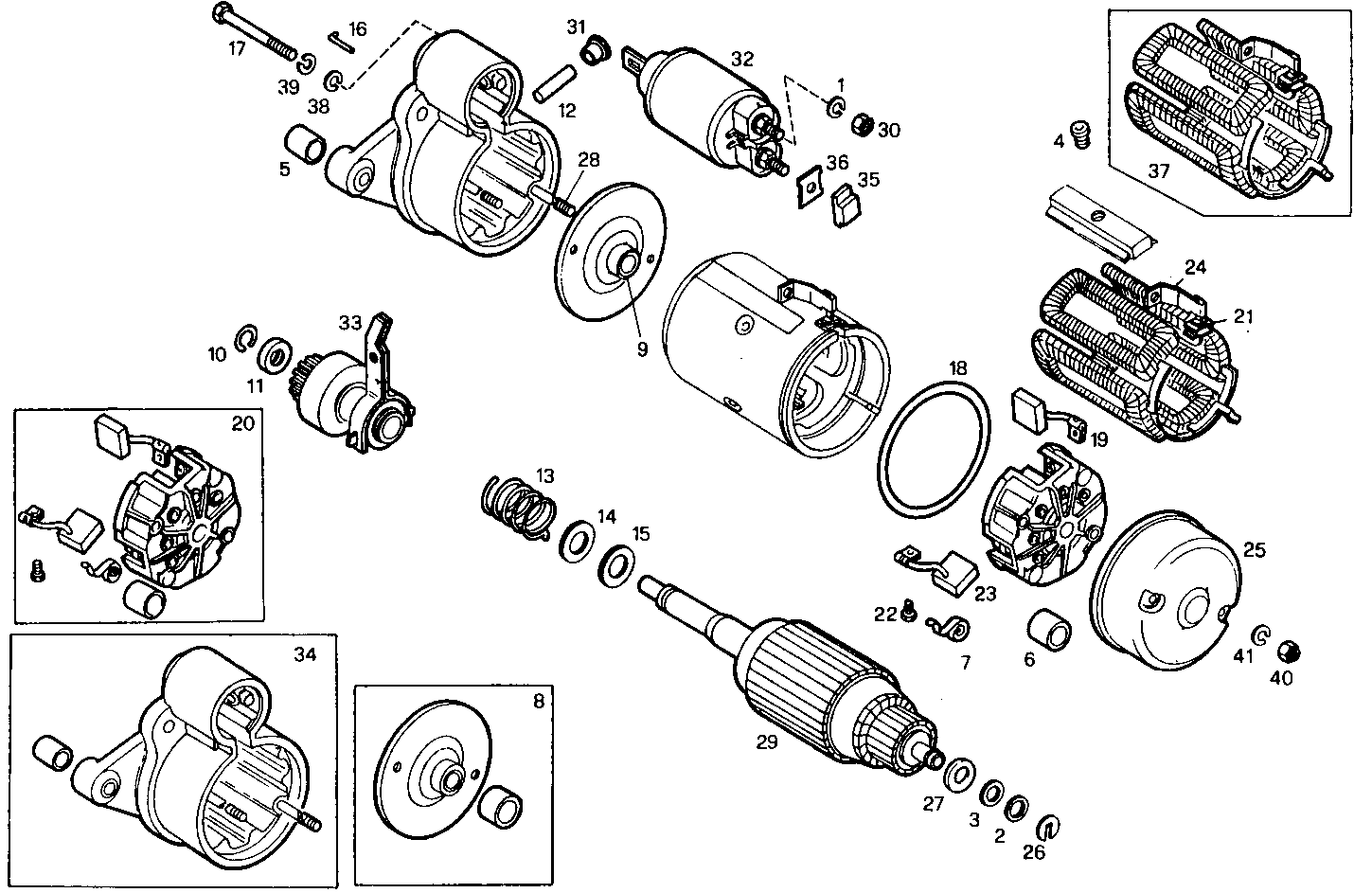

3630.005 STARTER MOTOR (COMPONENTS)
| Item |
Part number |
Description |
|
1 |
9902481 |
SPRING WASHER |
|
2 |
9909170 |
WASHER |
|
3 |
9909440 |
WASHER |
|
4 |
9909452 |
SCREW |
|
5 |
9927787 |
BUSH |
|
6 |
9927789 |
BUSH |
|
7 |
9927790 |
SPRING |
|
8 |
9927795 |
STARTER SUPPORT ASSY |
|
9 |
9927796 |
BUSH |
|
10 |
9927797 |
SPRING WASHER |
|
11 |
9927798 |
RING |
|
12 |
9927799 |
PIN |
|
13 |
9927800 |
SPRING |
|
14 |
9927801 |
INSULATING WASHER |
|
15 |
9927802 |
INSULATING WASHER |
|
16 |
9927806 |
PIN |
|
17 |
9927813 |
SCREW |
|
18 |
9927815 |
O-RING |
|
19 |
9928448 |
BRUSH |
|
20 |
9928451 |
SUPPORT ASSY |
|
21 |
9928452 |
RUBBER RING |
|
22 |
9928457 |
SCREW |
|
23 |
9929080 |
BRUSH |
|
24 |
9929083 |
PIPE SOCKET |
|
25 |
9933228 |
COVER |
|
26 |
9933229 |
SPRING WASHER |
|
27 |
9933234 |
WASHER |
|
28 |
9933235 |
TIE ROD |
|
29 |
9933236 |
STARTER WINDING |
|
30 |
9934288 |
NUT |
|
31 |
9956559 |
PLUG |
|
32 |
9957705 |
SOLENOID |
|
33 |
9957707 |
SWITCHGEAR |
|
34 |
9957708 |
SUPPORT ASSY |
|
35 |
9957709 |
PLATE |
|
36 |
9957710 |
DOWEL |
|
37 |
9957711 |
STARTER WINDING ASSY |
|
38 |
10519301 |
WASHER |
|
39 |
11195471 |
SPRING WASHER Ø5,1 MM |
|
40 |
12574214 |
HEXAGON NUT |
|
41 |
13550201 |
WASHER Ø6,4 MM |
