8061SRM24.00

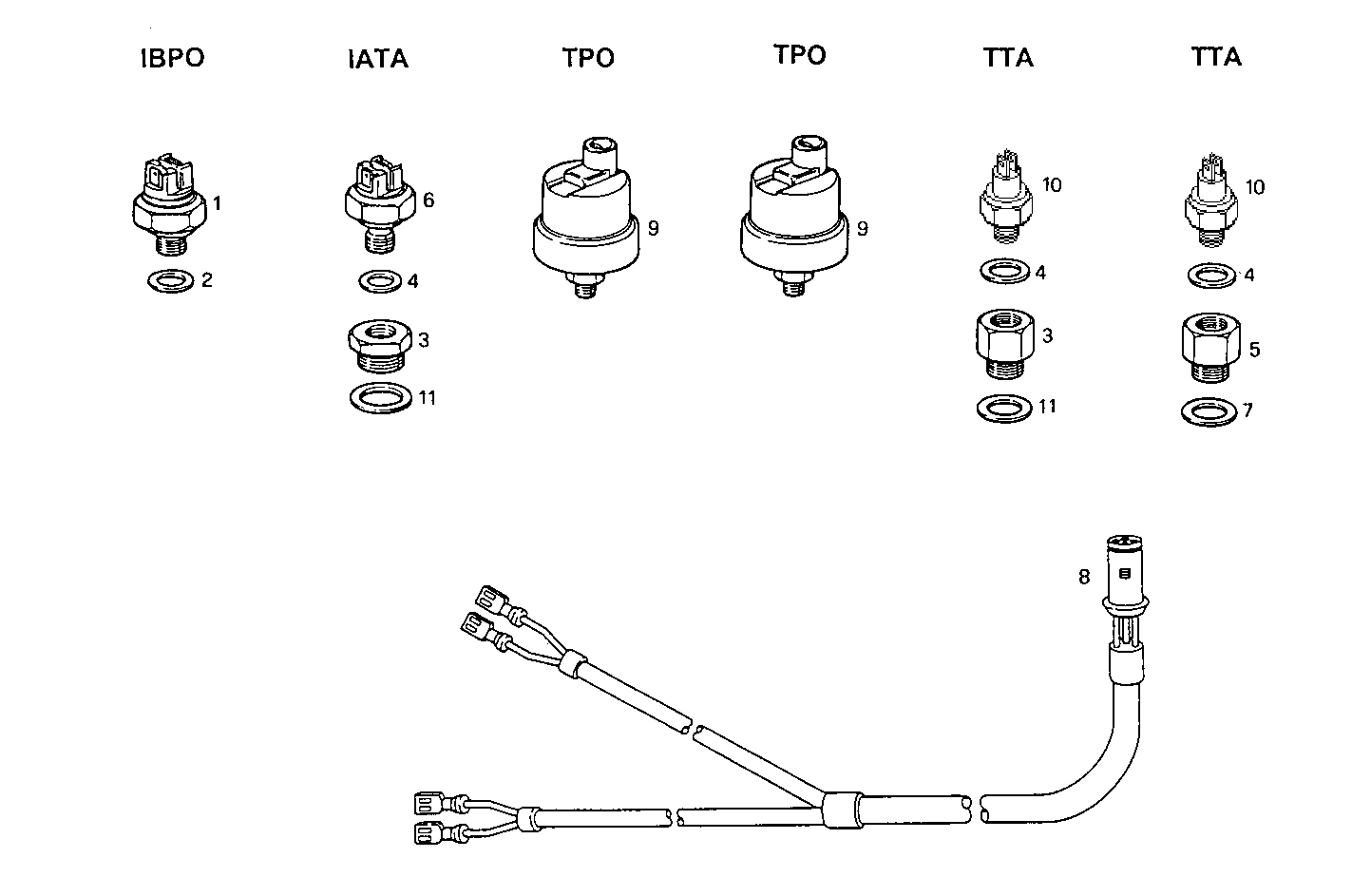

A38560001 SENDER UNITS FOR INSTRUMENTS - double 12/24V - VDO

Iveco/FPT SENDER UNITS FOR INSTRUMENTS

Item Part number Description
1 8114030 TRANSMITTER IBPO
2 4858607 WASHER Ø12X17 MM SP=1,5 MM
3 4927760 PIPE SOCKET M22X1,5
4 4858608 SEAL GASKET dia.14x19,5x1,5
5 4928330 PIPE SOCKET M16X1,5/M14X1,5
6 8019334 TRANSMITTER IATA
7 4858609 WASHER Ø16X22 MM SP=1,5 MM
8 8108457 ENGINE HARNESS
9 8100417 TRANSMITTER TPO
10 8100418 TRANSMITTER TTA
11 10263460 WASHER Ø22X28X1,5 MM
