8061SRM24.10

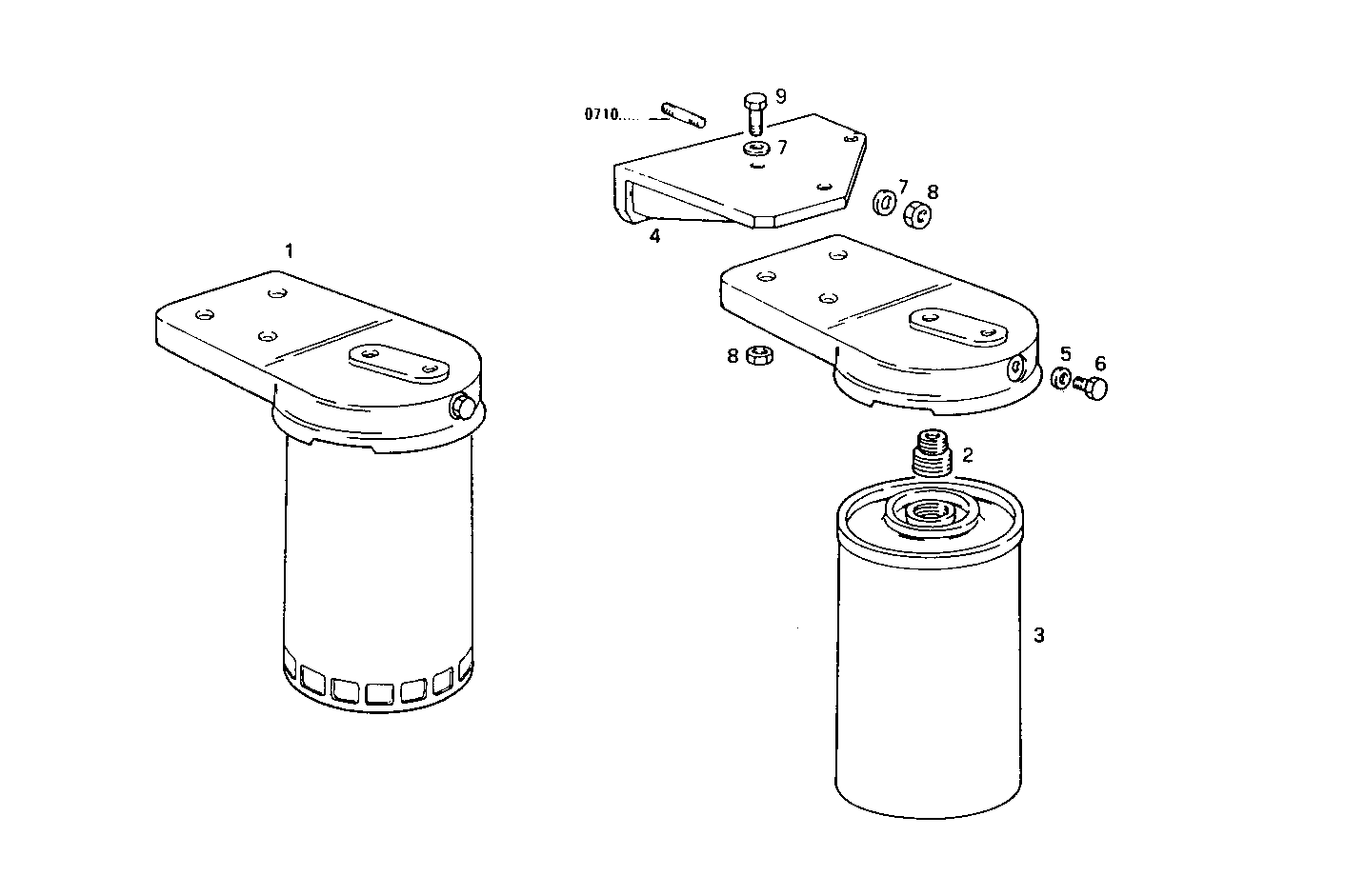

2000.009 FUEL FILTER
| Item | Part number | Description |
|---|---|---|
| 1 | 4802377 | FUEL FILTER ASSY |
| 2 | 4626466 | THREADED UNION |
| 3 | 1901605 | FUEL FILTER ELEM. PRIMARY |
| 4 | 8111015 | RETAINER |
| 5 | 4626468 | SEAL GASKET |
| 6 | 4626467 | SCREW CAP/PLUG |
| 7 | 11198379 | SPRING WASHER Ø10X20 MM SP=2,6 |
| 8 | 12164711 | HEXAGON NUT M10X1,25 |
| 9 | 15970921 | HEXAGON BOLT M10X1,25X35 MM |
