8061SRM24.10

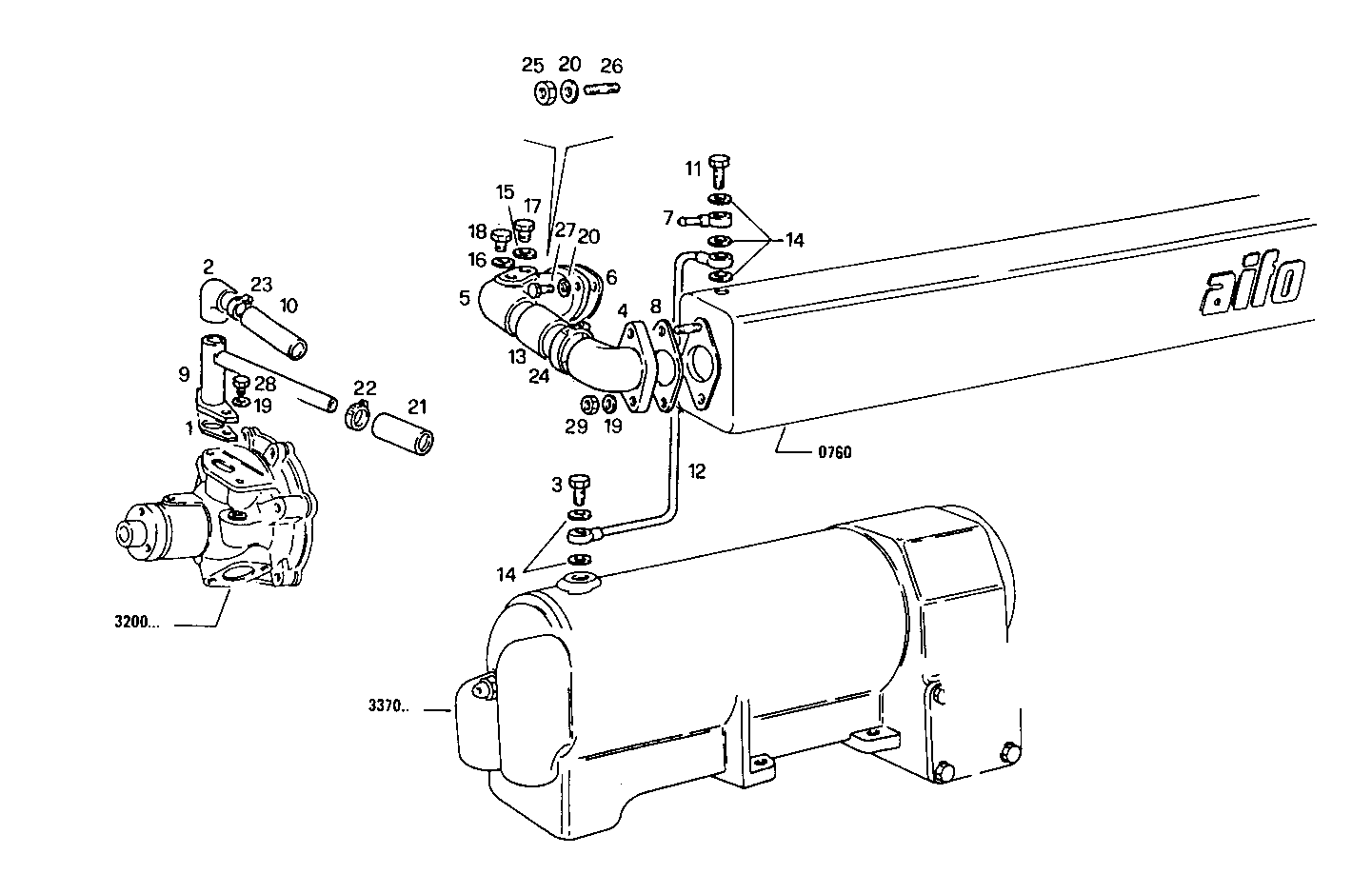

3210.016/01 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 4767560 GASKET
2 4930352 WATER HOSE
3 4927823 SCREW CONNECTOR
4 4919235 WATER PIPE
5 4919685 WATER PIPE
6 4770933 GASKET
7 4636689 SWIVEL COUPLING
8 4918835 GASKET
9 8113950 WATER PIPE
10 8113951 WATER PIPE
11 8113807 PIPE SOCKET
12 8108307 WATER PIPE
13 10136587 WATER HOSE
14 10298460 SEAL GASKET Ø12X18 MM SP=1,5 MM
15 10278660 SEAL GASKET Ø16X22 MM SP=1 MM
16 10279560 SEAL GASKET Ø22,2 MM
17 16992440 THREADED PLUG M16X1,5
18 10305140 LOCK PLUG M22X1,5
19 11194079 SPRING WASHER Ø8X16 MM SP=1,9 MM
20 11198371 SPRING WASHER Ø10X20 MM
21 12075087 WATER HOSE
22 12176790 CLIP
23 17764592 CLIP Ø20/32 MM
24 12177090 CLIP Ø32-52 MM
25 12164711 HEXAGON NUT M10X1,25
26 13449521 STUD M10X15X25
27 15004021 HEXAGON BOLT M10X1,25X25 MM
28 16043124 SCREW M8X14 MM
29 17037931 HEXAGON NUT M8X1,25
