8061SRM24.10

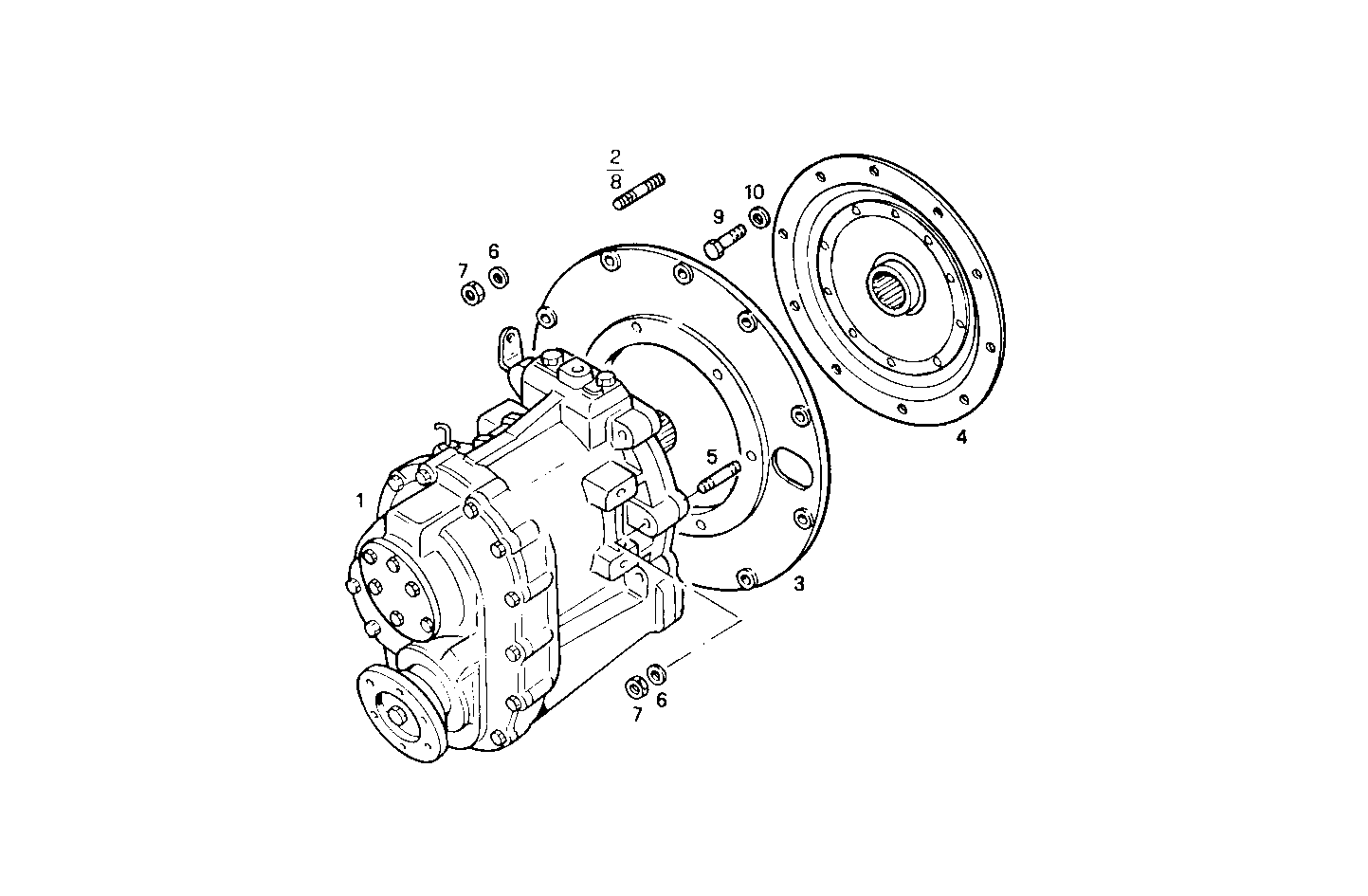

A51740002 MARINE GEAR ZF-MPM IRM 50 A2 - ratio 2.00:1
Item | Part number | Description |
---|---|---|
1 | 8006174 | MARINE GEAR 2,00:1 |
2 | 13449821 | STUD M10X1,25X15 MM |
3 | 4934782 | COUPLING BELL |
4 | 8113696 | FLEXIBLE COUPLING |
5 | 13547521 | STUD |
6 | 11198379 | SPRING WASHER Ø10X20 MM SP=2,6 |
7 | 12164711 | HEXAGON NUT M10X1,25 |
8 | 13449721 | STUD M10X15X30 |
9 | 15970521 | HEXAGON BOLT M10X20 MM |
10 | 10571879 | WASHER |
