8061SRM25.10

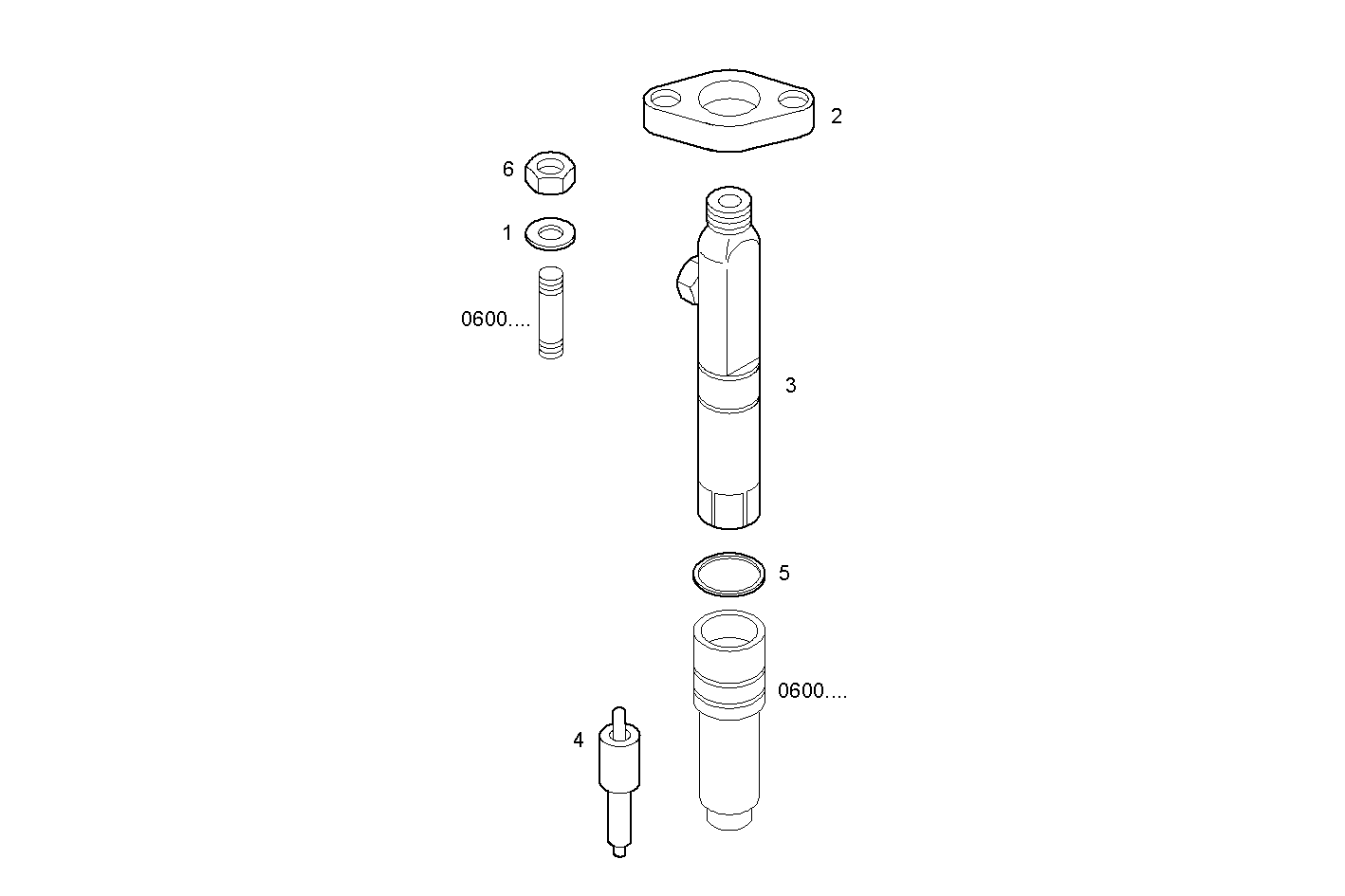

1420.012 INJECTORS
Item | Part number | Description |
---|---|---|
1 | 771326 | WASHER Ø11,5 MM |
2 | 4780612 | FASTENING BRACKET |
3 | 775949 | NOZZLE HOLDER ASSY |
4 | 775725 | FUEL NOZZLE |
5 | 17278581 | O-RING Ø18,77 MM SP=1,78 MM |
6 | 17037931 | HEXAGON NUT M8X1,25 |
