8061SRM25.10

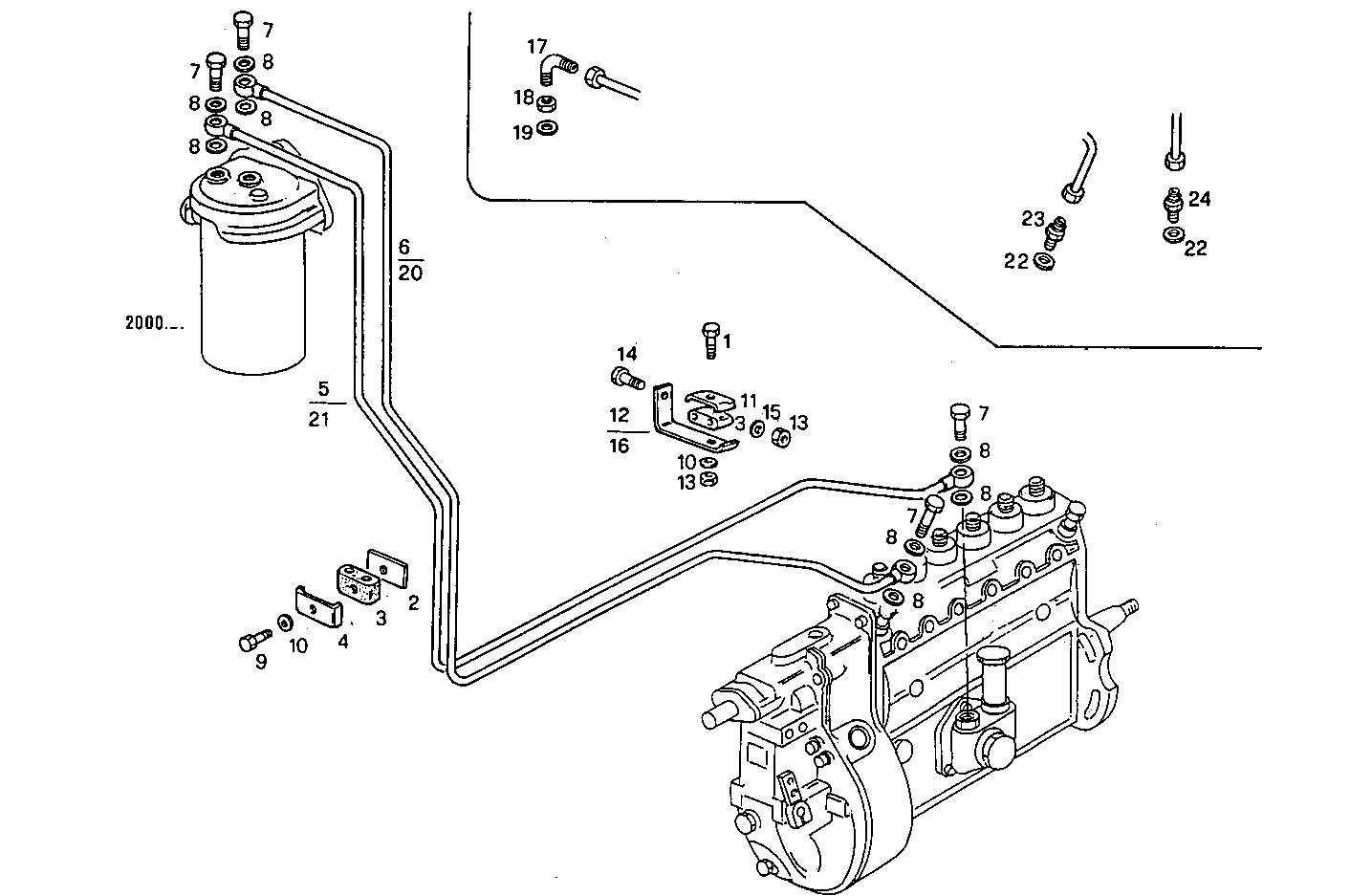

2030.140 FUEL LINES

Iveco/FPT FUEL LINES

Item Part number Description
1 16603924 HEXAGON BOLT M6X30 MM
2 4644289 CLIP
3 4871771 RUBBER LUG
4 4644288 CLIP
5 8011616 FUEL LINE [up to 05-92]
6 8011615 FUEL LINE [up to 05-92]
7 4864083 SCREW CONNECTOR M14X1,5X30 MM
8 4858608 SEAL GASKET dia.14x19,5x1,5
9 16603824 SCREW M6X25
10 17088474 WASHER Ø6X12 MM
11 4641551 CLAMP
12 8110499 RETAINER
13 17038221 HEXAGON NUT M10
14 15970621 SCREW M10X1,25X22
15 17090174 SPRING WASHER Ø10X20 MM
16 8013432 CLAMP [from 05-92]
17 8006222 PIPE SOCKET [from 05-92]
18 16508711 NUT M14X1,5 [from 05-92]
19 17281581 O-RING Ø12,37X2,62 MM
20 8012963 INJECTION LINE [from 05-92]
21 8012962 FUEL LINE [from 05-92]
22 98474308 SEAL GASKET Ø14X22 MM
23 4740771 SWIVEL COUPLING [from 05-92]
24 16500211 THREADED UNION
