8061SRM25.10

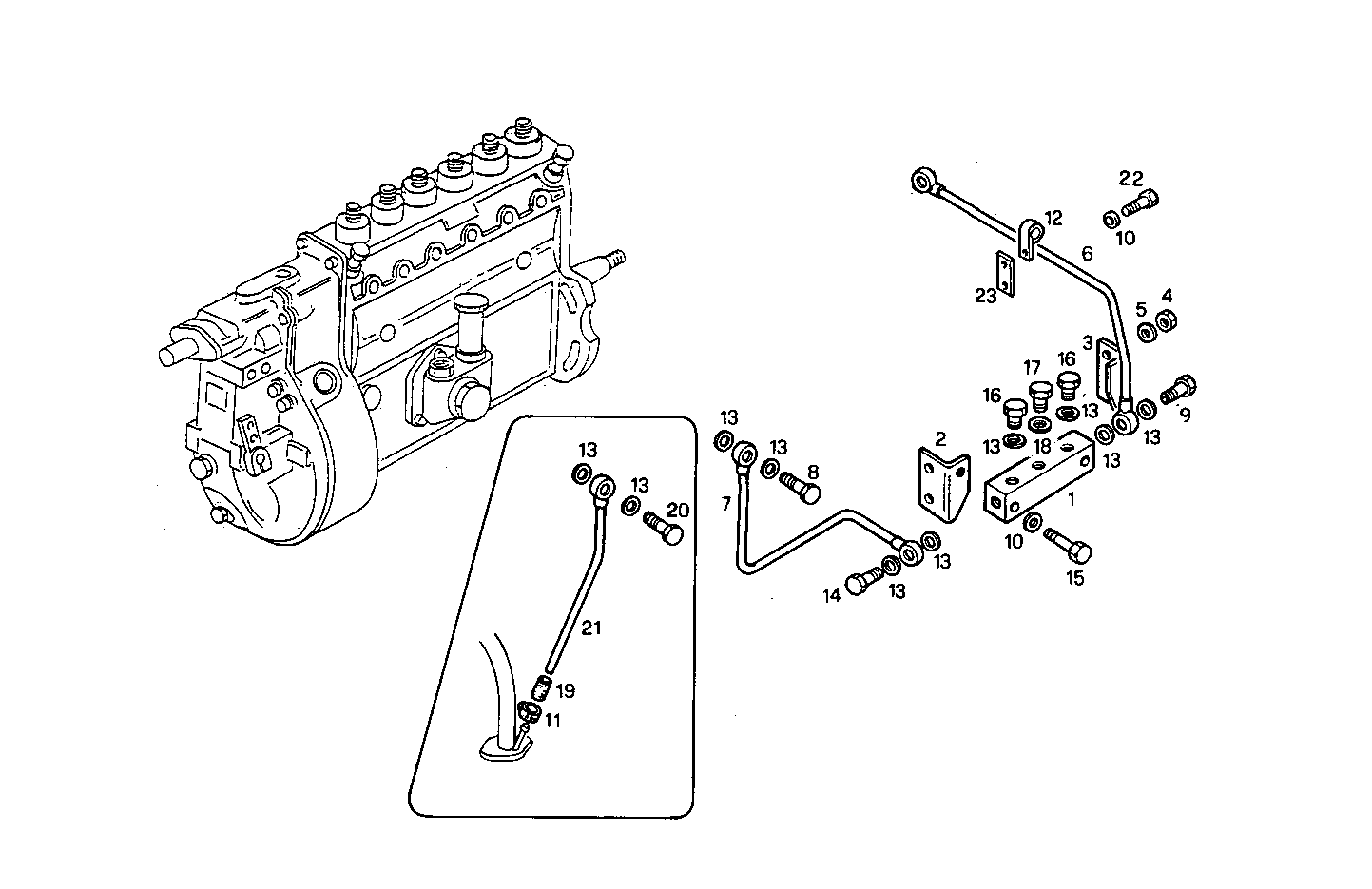

3010.046/01 LUBE OIL LINES

Iveco/FPT LUBE OIL LINES

Item Part number Description
1 8100229 CHOCK
2 8006524 RETAINER
3 8100231 RETAINER
4 15896211 HEXAGON NUT M6
5 17088474 WASHER Ø6X12 MM
6 8009179 OIL LINE
7 8009168 OIL LINE
8 4864079 SCREW CONNECTOR M10X1
9 4864080 SCREW CONNECTOR M10X1,25
10 11194074 WASHER Ø8,4 MM
11 18088392 CLIP Ø16/25 MM
12 10449890 PIPE CLIP Ø53 MM
13 4858608 SEAL GASKET dia.14x19,5x1,5
14 8012660 SCREW CONNECTOR
15 16044021 HEXAGON BOLT M8X1,25X40 MM
16 11903040 LOCK PLUG M10X1
17 10500511 PLUG M12
18 10298460 SEAL GASKET Ø12X18 MM SP=1,5 MM
19 4935362 RUBBER SLEEVE
20 1390713 SCREW CONNECTOR M10X1
21 8009310 OIL LINE [up to 03-92]
22 16043221 HEXAGON BOLT M8X16 MM
23 4716869 RETAINER
