8061SRM25.10

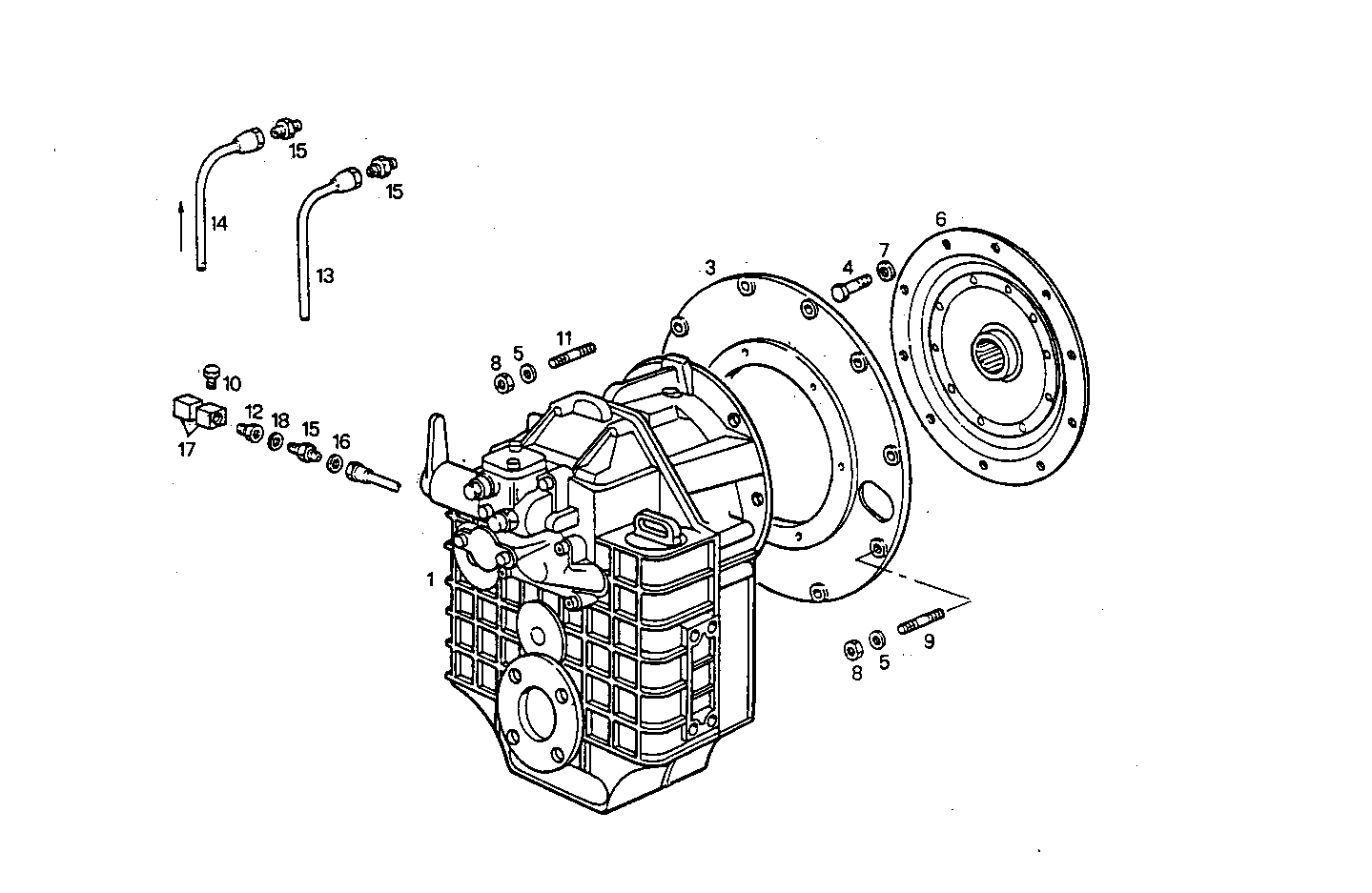

A51900008 MARINE GEAR HURTH HSW 630 V - ratio 2.48:1
Item | Part number | Description |
---|---|---|
1 | 8005807 | MARINE GEAR 2,48:1 |
3 | 4934782 | COUPLING BELL |
4 | 15970521 | HEXAGON BOLT M10X20 MM |
5 | 11198371 | SPRING WASHER Ø10X20 MM |
6 | 8113696 | FLEXIBLE COUPLING |
7 | 10571879 | WASHER |
8 | 12164711 | HEXAGON NUT M10X1,25 |
9 | 13449721 | STUD M10X15X30 |
10 | 10183317 | LOCK PLUG M16X1,5 |
11 | 13546321 | STUD M10X25 MM |
12 | 8105826 | PIPE SOCKET |
13 | 4935780 | OIL HOSE |
14 | 8111496 | HOSE |
15 | 4935465 | PIPE SOCKET |
16 | 10257060 | SEAL GASKET Ø16X22 MM SP=1,5 MM |
17 | 8107173 | PIPE SOCKET |
18 | 11270460 | GASKET Ø17X21X1,5 MM |
