8061SRM25.10

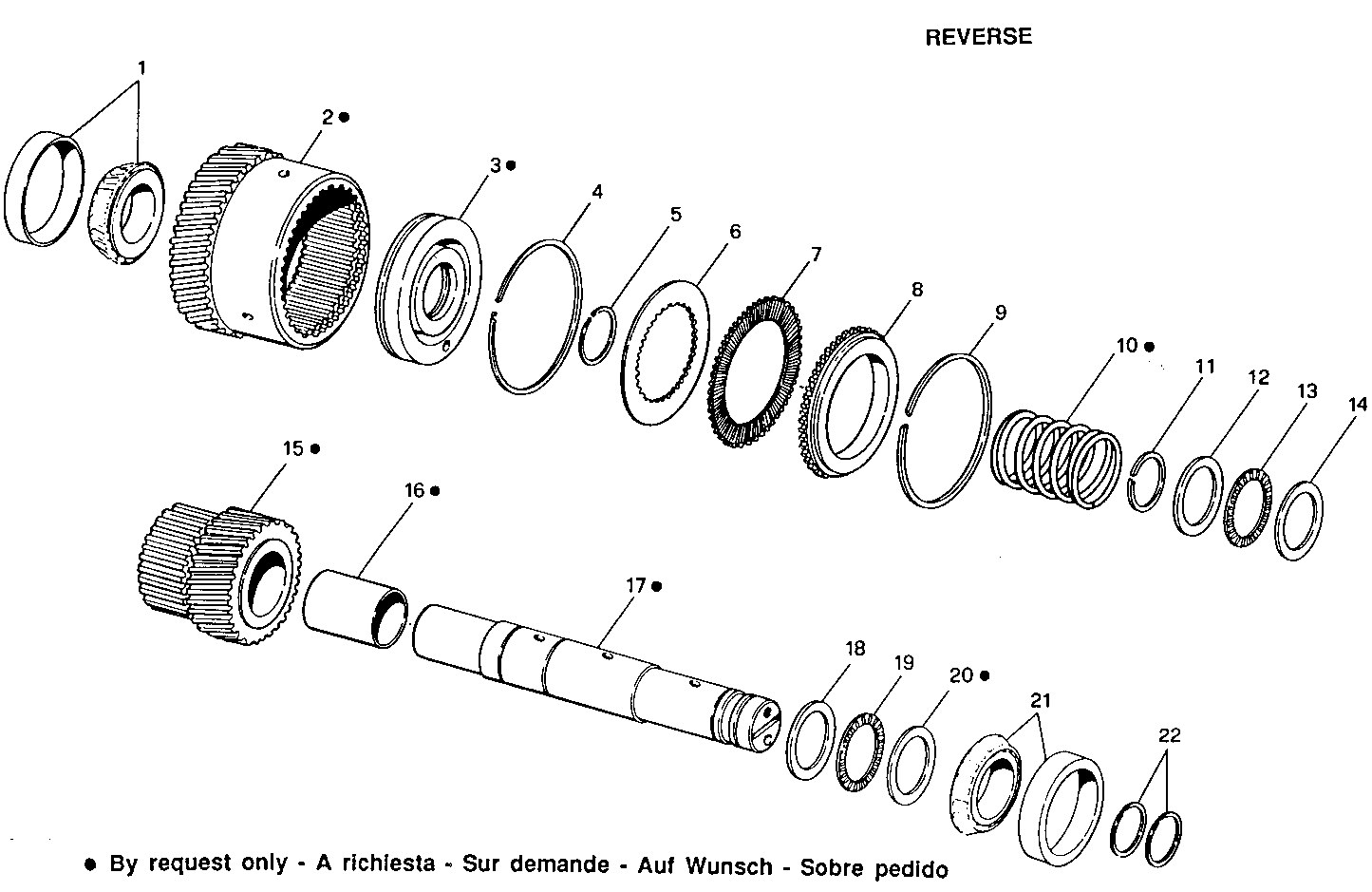

T5114001/04 MARINE GEAR - (components)
Item | Part number | Description |
---|---|---|
1 | 8090464 | DRIVE BEARING |
4 | 8090465 | CIRCLIP |
5 | 8090466 | O-RING |
6 | 8090467 | RING |
7 | 8090468 | RING |
8 | 8090469 | RING |
9 | 8090470 | CIRCLIP |
11 | 8090471 | CIRCLIP |
12 | 8090580 | WASHER |
13 | 8090472 | DRIVE BEARING |
14 | 8090581 | WASHER |
22 | 8090473 | CIRCLIP |
