8061SRM25.12

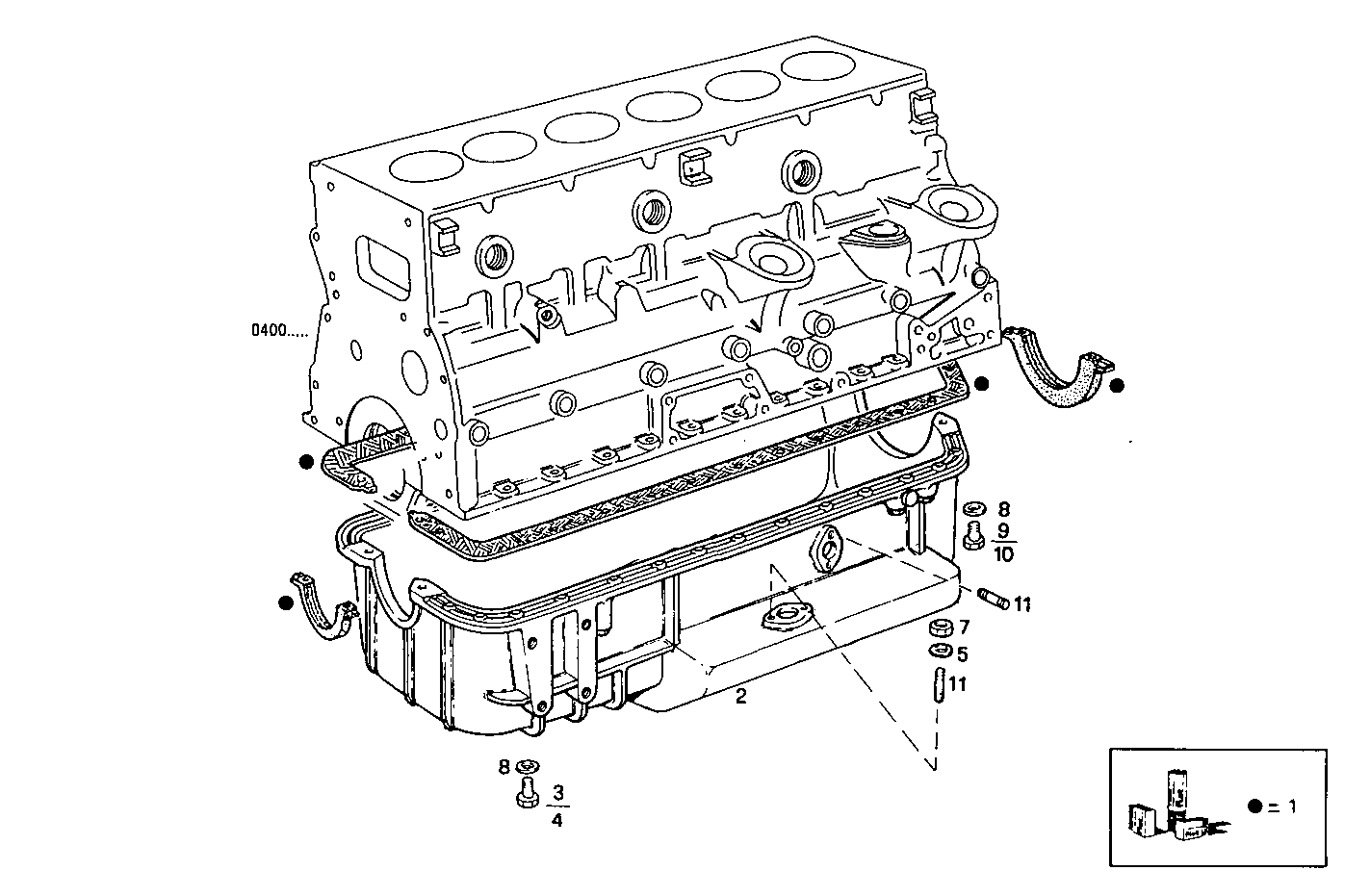

0420.065 OIL SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 1907561 | KIT-OILSUMP GASKET |
| 2 | 8018048 | OIL SUMP ASSY |
| 3 | 15971824 | SCREW M10X1,25X100 |
| 4 | 15970924 | HEXAGON BOLT M10X1,25X35 MM |
| 5 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 7 | 17037931 | HEXAGON NUT M8X1,25 |
| 8 | 17095104 | WASHER Ø10X21X2 MM |
| 9 | 10923621 | HEXAGON BOLT M10X1,25X35 MM |
| 10 | 11343824 | HEXAGON BOLT M10X1,25X50 MM |
| 11 | 16746624 | STUD M8X20 MM (8.8) |
