8061SRM25.12

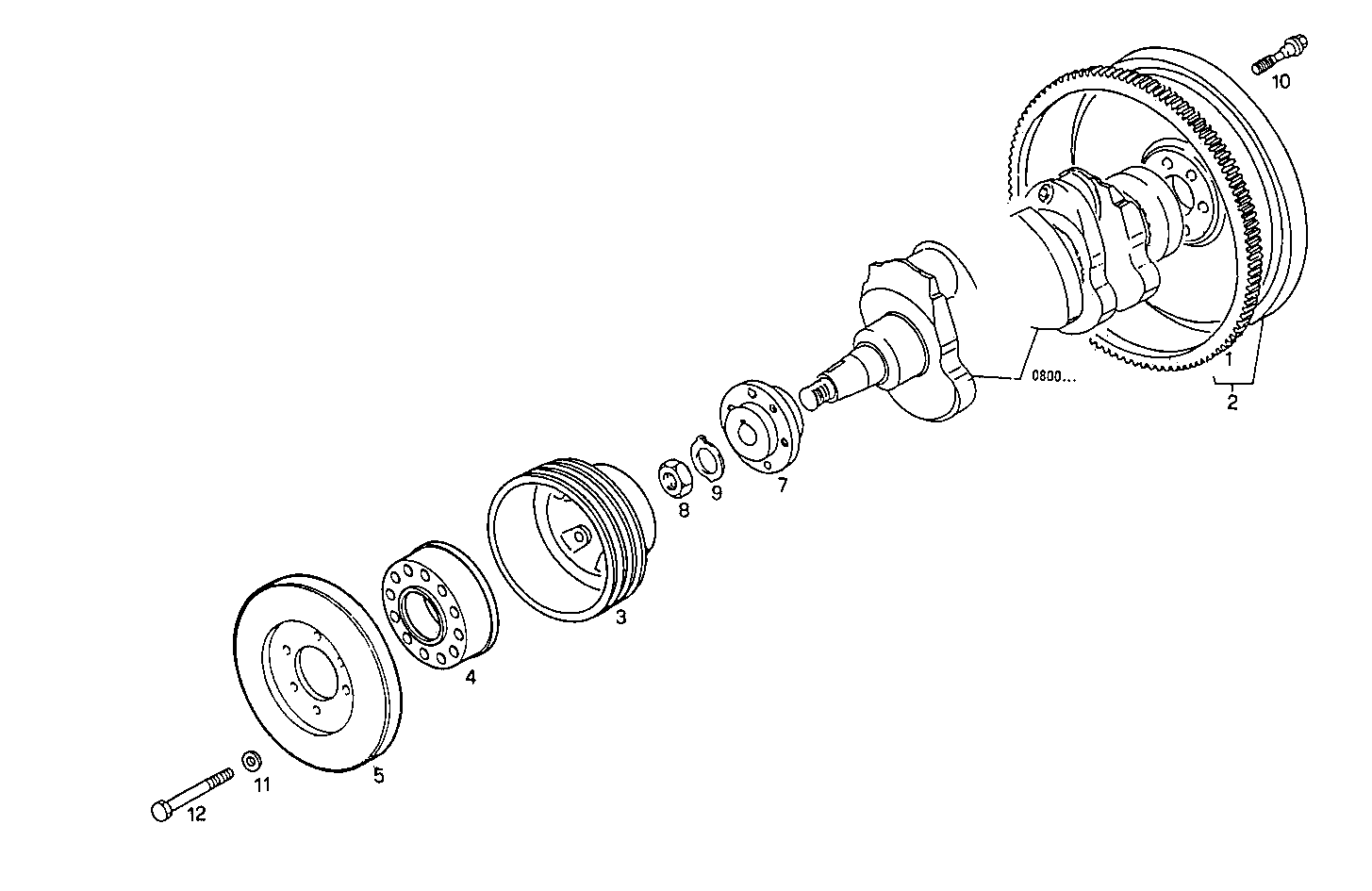

0830.069 ENGINE FLYWHEEL - DAMPER
Item | Part number | Description |
---|---|---|
1 | 4862411 | RING GEAR |
2 | 98402078 | FLYWHEEL ASSY |
3 | 8018890 | PULLEY |
4 | 8018891 | SPACING BAR |
5 | 4829151 | VIBRATION DAMPER CINOTTO |
7 | 4655847 | HUB |
8 | 4600189 | NUT |
9 | 4600190 | LOCKING PLATE |
10 | 4779122 | HEXAGON BOLT |
11 | 17090174 | SPRING WASHER Ø10X20 MM |
12 | 15971621 | HEXAGON BOLT M10X1,25X90 MM |
