8061SRM25.12

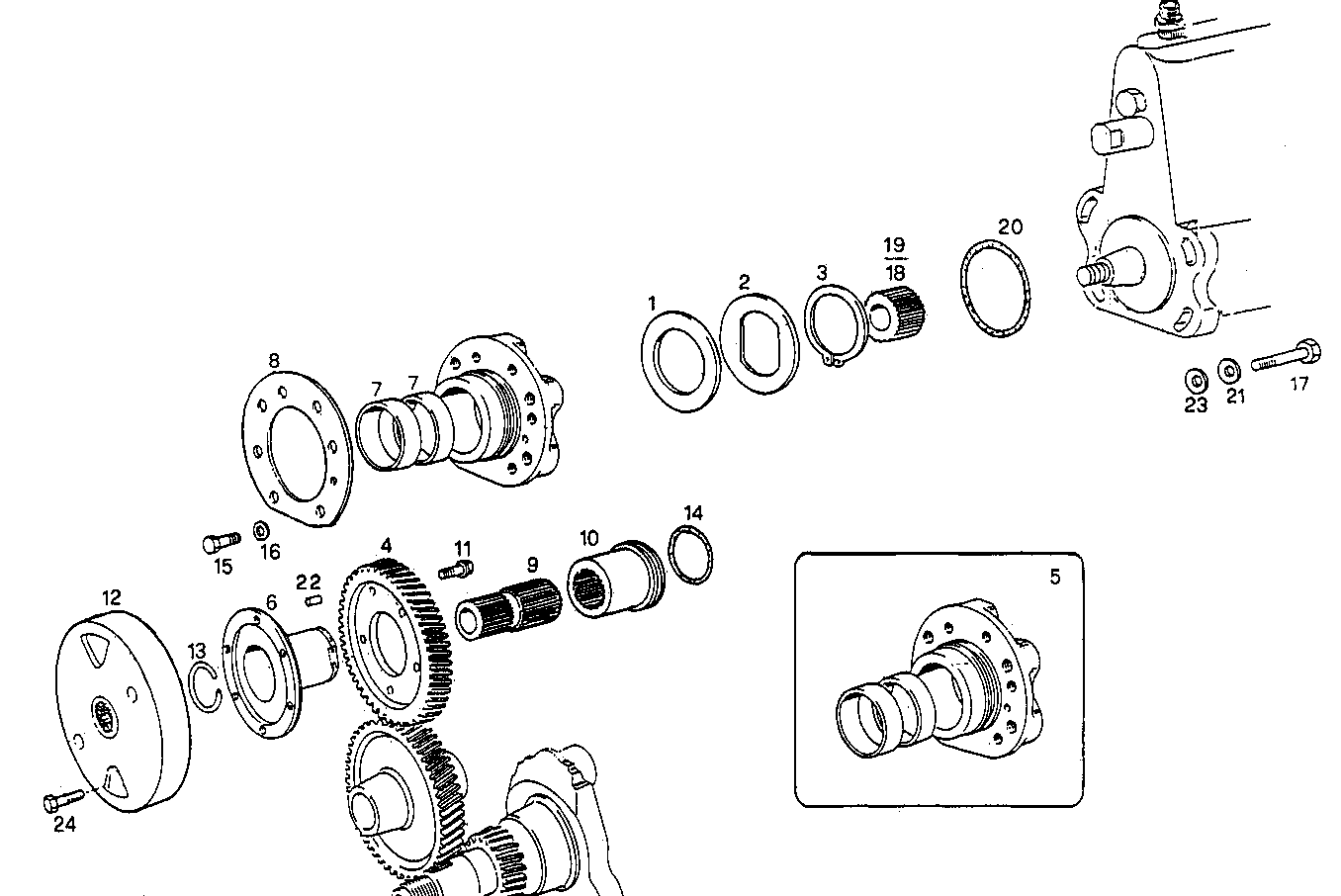

1410.054 INJECTION PUMP DRIVE

Iveco/FPT INJECTION PUMP DRIVE

Item Part number Description
1 4809425 WASHER Ø50 MM
2 4667498 WASHER
3 4708213 CIRCLIP
4 4769422 INJ.PUMP DRIV.GEA
5 4769424 SUPPORT ASSY
6 4769426 INJECT.PUMP SPIND
7 4769427 BUSH VANDERVELL
8 4849996 FLAT ENGINE GASKET
9 4769430 INJECT.PUMP SLEEVE
10 4769431 INJECT.PUMP BUSH
11 4798845 SCREW
12 4779607 ADVANCE UNIT ASSY WEBER ALTECNA
13 17085376 CIRCLIP Ø30 MM
14 17283081 O-RING Ø36,17X2,62 MM
15 16605624 HEXAGON BOLT M8X25 MM (8.8)
16 17094914 WASHER 8x16
17 11234721 HEXAGON BOLT M10X1,25X45 MM
18 4819912 INJECT.PUMP BUSH 144° 30'
19 8012814 INJECT.PUMP BUSH 147° 30'
20 98400793 FLAT ENGINE GASKET
21 17090174 SPRING WASHER Ø10X20 MM
22 17283210 PIN
23 759850 WASHER Ø10X21X2 MM
24 4794007 SCREW
