8061SRM25.12

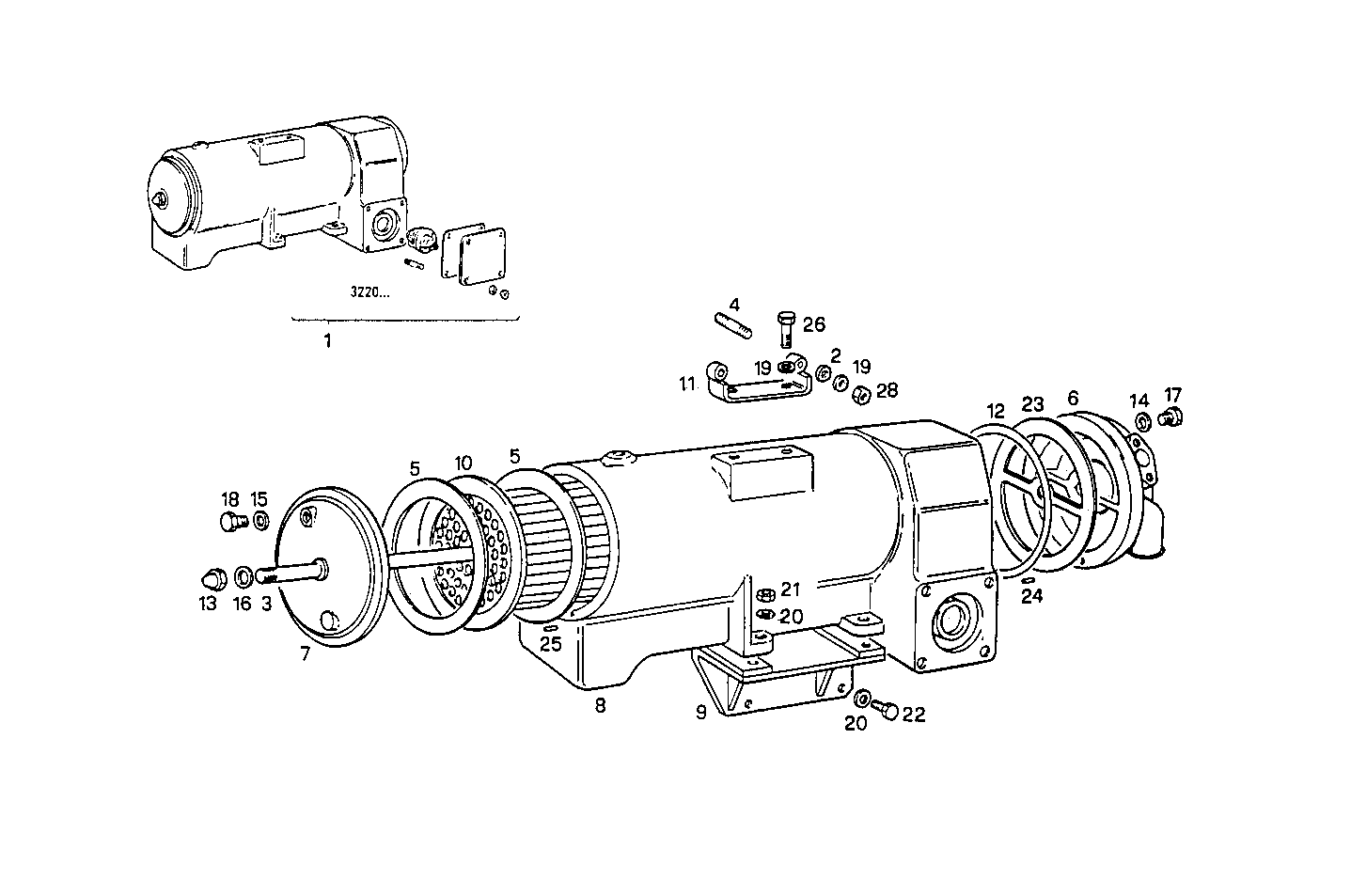

3370.018 FRESH WATER - SEA WATER HEAT EXCHANGER

Iveco/FPT FRESH WATER - SEA WATER HEAT EXCHANGER

Item Part number Description
1 8006757 WATER/SEA WATER HEAT EXCH KIT
2 16665504 WASHER Ø8 MM
3 4918908 TIE ROD
4 8007717 STUD
5 4930157 GASKET
6 8005450 HEAT EXCHANG.COVER REAR
7 8005424 HEAT EXCHANG.COVER FRONT
8 8006666 HEAT EXANGER BODY
9 8100252 SUPPORT
10 4929632 TUBE STACK
11 8006075 RETAINER
12 4918846 O-RING
13 14056240 NUT M12X1,25
14 4858609 WASHER Ø16X22 MM SP=1,5 MM
15 4858606 GASKET Ø10X14X1 MM
16 4858607 WASHER Ø12X17 MM SP=1,5 MM
17 16992440 THREADED PLUG M16X1,5
18 11903140 PLUG M10X1,25
19 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
20 17090174 SPRING WASHER Ø10X20 MM
21 17038221 HEXAGON NUT M10
22 15970521 HEXAGON BOLT M10X20 MM
23 4927193 GASKET
24 17253670 PIN Ø4X14 MM
25 17253870 PIN Ø4X18 MM
26 16605424 SCREW M8X16 MM (8.8)
28 17787321 NUT M8X1,25
