8061SRM25.13

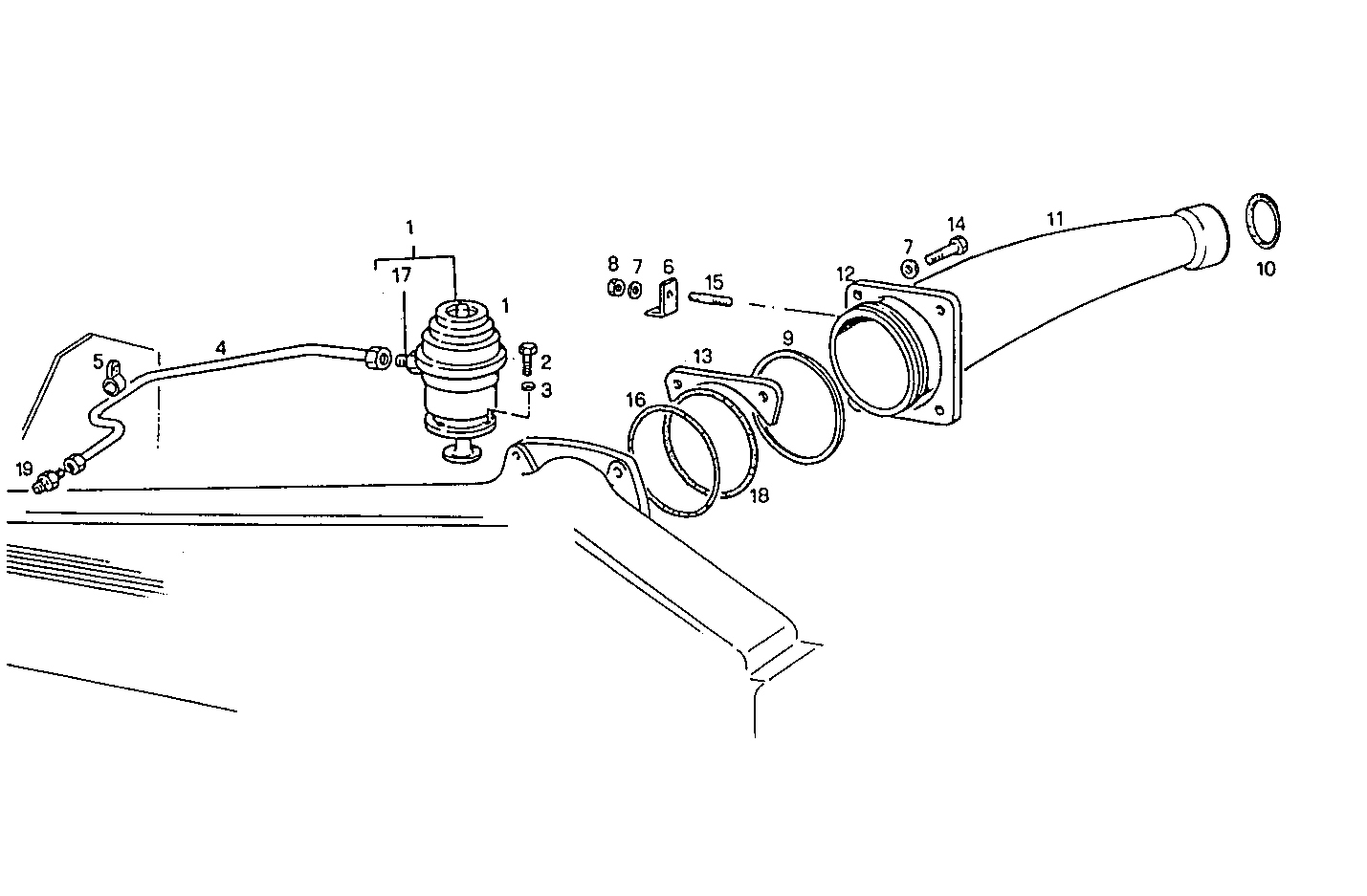

2420.076/02 SUPERCHARGING LINES

Iveco/FPT SUPERCHARGING LINES

Item Part number Description
1 8007504 VALVE WASTE-GATE - ASSY
2 16689134 SOCKET-HEAD SCREW M6X16 MM
3 17088474 WASHER Ø6X12 MM
4 8016872 AIR PIPE/DUCT
5 8006650 CLIP
6 8006653 RETAINER
7 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
8 17037931 HEXAGON NUT M8X1,25
9 8105951 CIRCLIP
10 17289881 O-RING Ø50,3 MM SP=3,5 MM
11 8018895 INTAKE ELBOW [from 01-96]
12 8105950 FLANGE
13 8105952 PLATE
14 16605924 SCREW M8X40 MM
15 16729224 STUD M8X16 MM
16 17291281 O-RING Ø94,84 MM SP=3,53 MM
17 8012465 PIPE SOCKET
18 17290781 O-RING Ø78,97X3,53 MM
19 11211311 PIPE SOCKET M10X1
