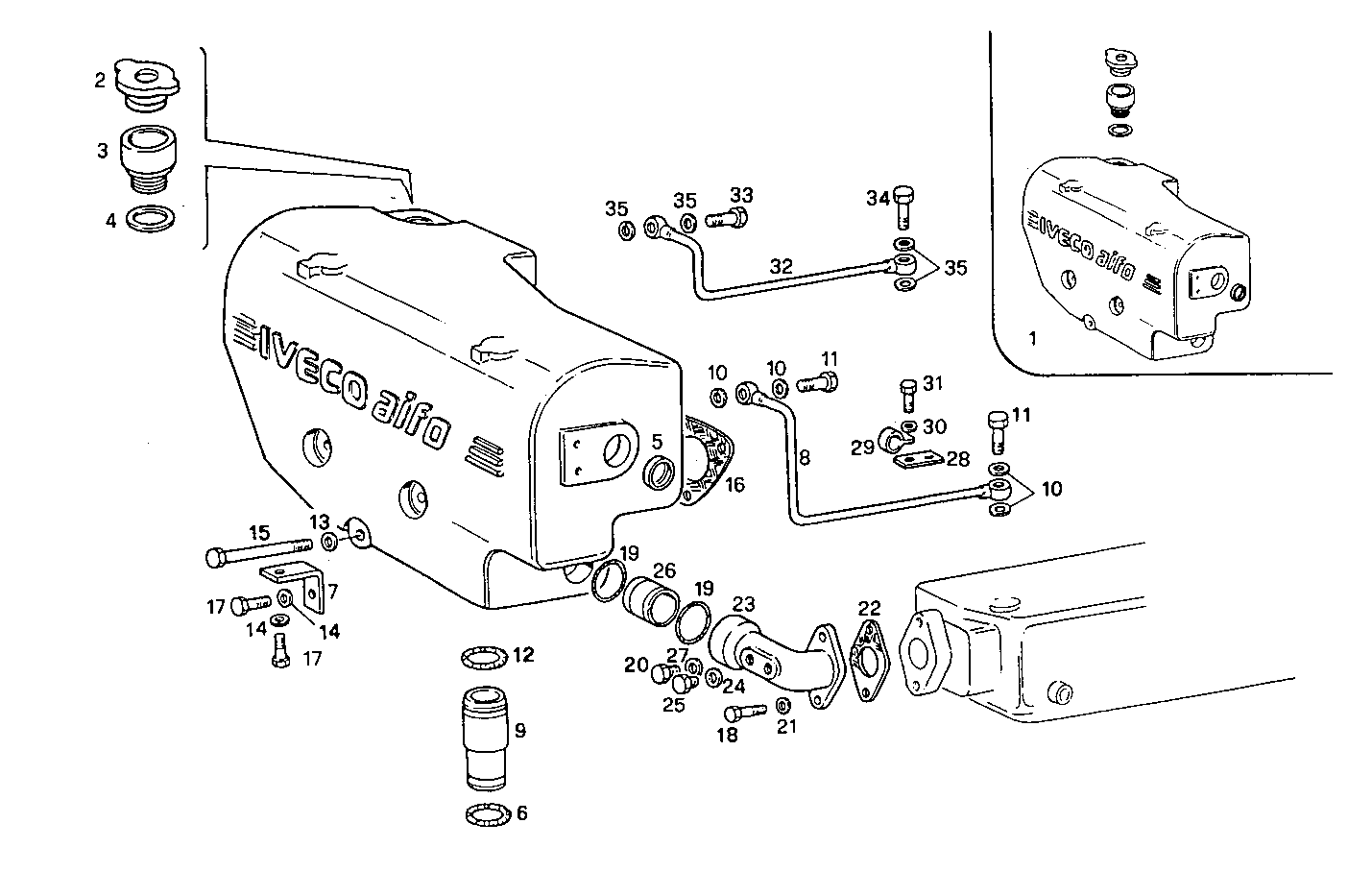

| Item |
Part number |
Description |
|
1 |
8007139 |
WATER EXPANSION TANK ASSY |
|
2 |
4930462 |
PLUG |
|
3 |
8102030 |
FILLER NECK |
|
4 |
10265360 |
SEAL GASKET Ø40X48 MM SP=1,5 MM |
|
5 |
14282770 |
LOCK PLUG Ø36 MM |
|
6 |
98458443 |
O-RING DIA 2.62X25.07 [from 657424] |
|
7 |
8007133 |
RETAINER |
|
8 |
8011617 |
WATER PIPE |
|
9 |
98415712 |
PIPE SOCKET [from 657424] |
|
10 |
98474306 |
WASHER Ø12X20 MM SP=1,9 MM |
|
11 |
8016191 |
BANJO BOLT M12X1,5 |
|
12 |
98458442 |
O-RING Ø24,99 MM SP=3,53 MM [from 657424] |
|
13 |
17095004 |
WASHER Ø10X18X2 MM |
|
14 |
17089774 |
SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
|
15 |
15972621 |
HEXAGON BOLT M10X1,25X140 MM |
|
16 |
4851926 |
FLAT ENGINE GASKET |
|
17 |
16043321 |
HEXAGON BOLT M8X18 MM |
|
18 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
19 |
17289581 |
O-RING Ø40,87X3,53 MM |
|
20 |
16992440 |
THREADED PLUG M16X1,5 |
|
21 |
17094914 |
WASHER 8x16 |
|
22 |
8009640 |
GASKET |
|
23 |
8007096 |
WATER PIPE |
|
24 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
25 |
16992340 |
THREADED PLUG M14X1,5 |
|
26 |
8007092 |
FLEXIBLE COUPLING |
|
27 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
|
28 |
8107203 |
RETAINER |
|
29 |
4804122 |
CLIP |
|
30 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
31 |
16605424 |
SCREW M8X16 MM (8.8) |
|
32 |
8019571 |
WATER PIPE |
|
33 |
4864080 |
SCREW CONNECTOR M10X1,25 |
|
34 |
8009696 |
SCREW CONNECTOR M12X1,5X25 |
|
35 |
98474305 |
WASHER Ø10X17 MM SP=2,3 |
