8061SRM25.42

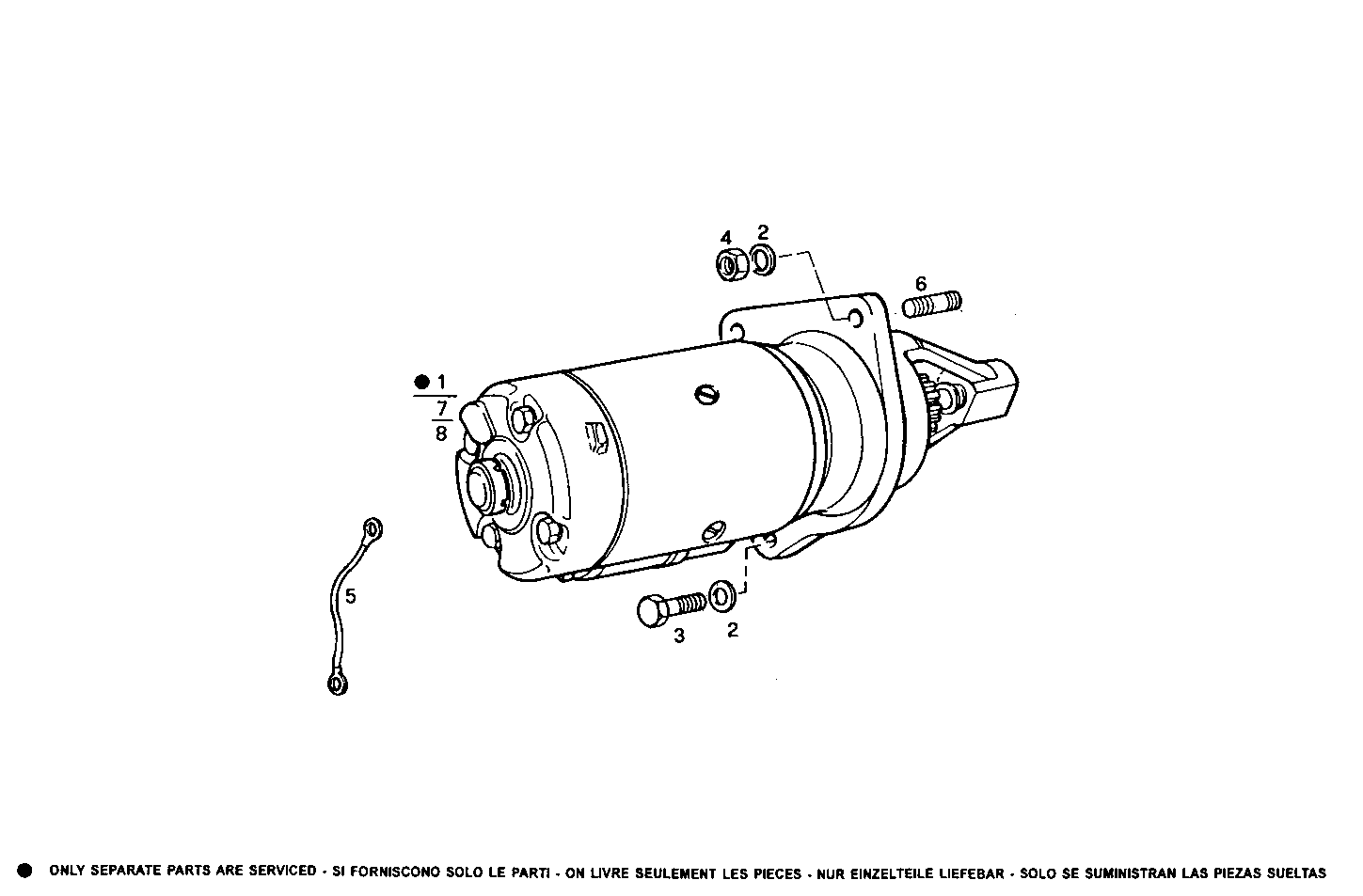

3600.036 STARTER MOTOR
Item | Part number | Description |
---|---|---|
1 | 4807378 | STARTER MOTOR ASSY MARELLI |
2 | 17090174 | SPRING WASHER Ø10X20 MM |
3 | 11306921 | SCREW M10X1,25X30 |
4 | 17038221 | HEXAGON NUT M10 |
5 | 8112529 | EARTH WIRE |
6 | 13449521 | STUD M10X15X25 |
7 | 4755108 | STARTER MOTOR ASSY BOSCH - 24V - OPT. [up to 01-00] |
