8061SRM27.10

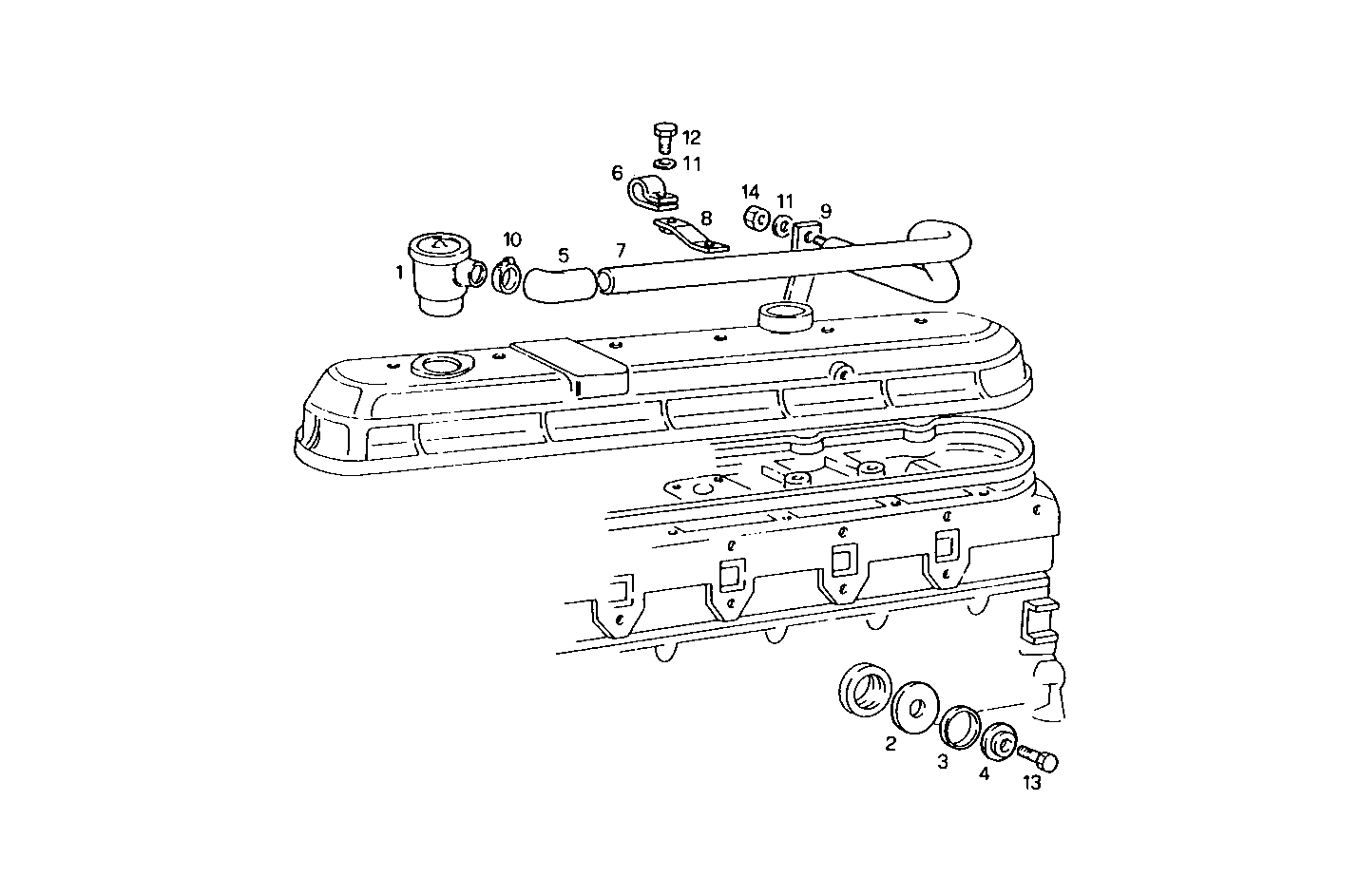

0450.008 ENGINE BREATHERS

Iveco/FPT ENGINE BREATHERS

Item Part number Description
1 4812047 BREATHER
2 4600893 GASKET
3 4811892 COVER
4 4716734 WASHER
5 4605529 RUBBER SLEEVE
6 4763804 FASTENING BRACKET
7 8111599 BREATHER PIPE
8 8107203 RETAINER
9 8111600 RETAINER
10 17764592 CLIP Ø20/32 MM
11 11193879 SPRING WASHER Ø8X16 MM
12 16043221 HEXAGON BOLT M8X16 MM
13 16605924 SCREW M8X40 MM
14 17037931 HEXAGON NUT M8X1,25
