8061SRM27.10

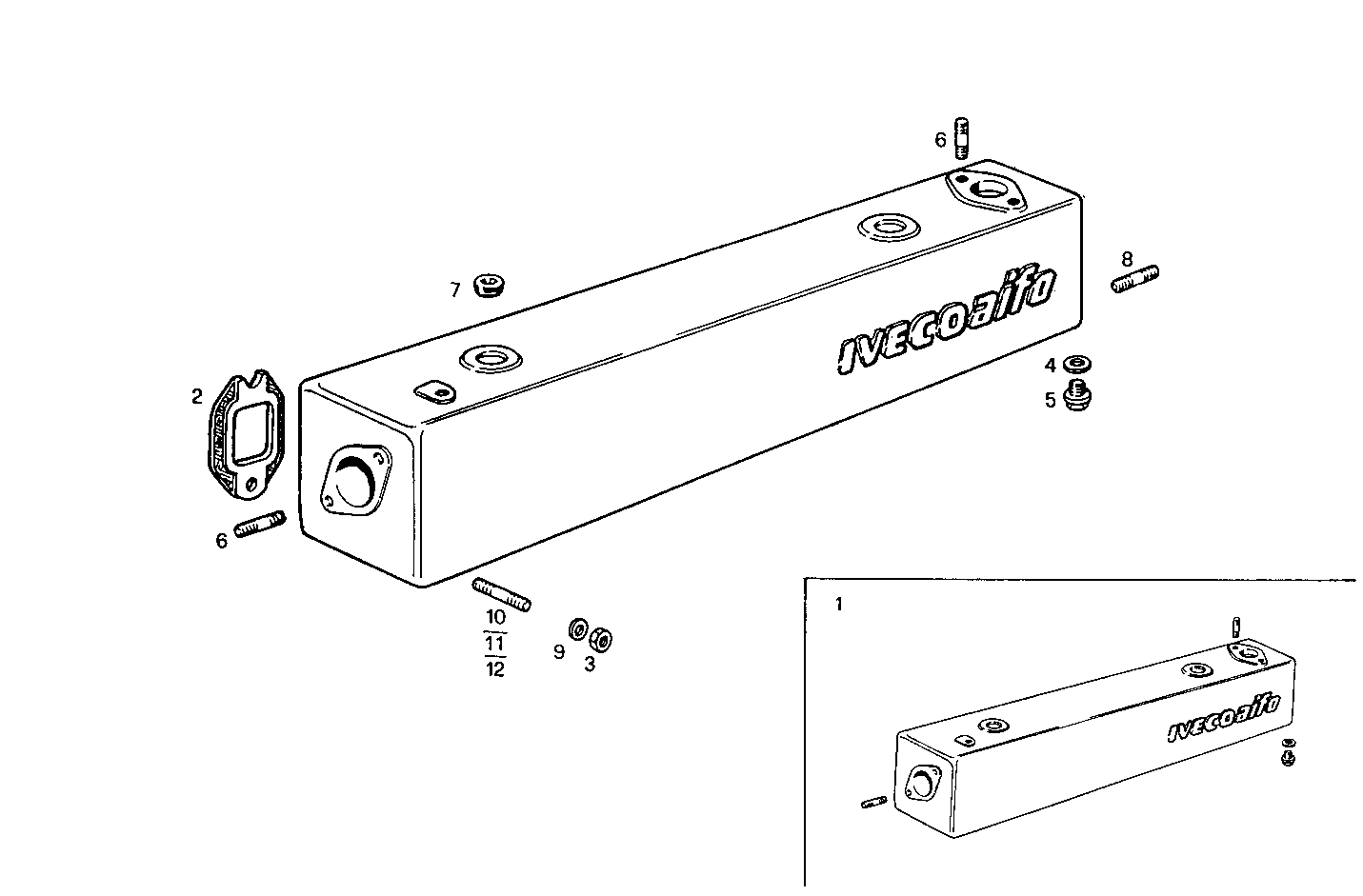

0760.013 EXHAUST MANIFOLD
| Item | Part number | Description |
|---|---|---|
| 1 | 8100193 | COOLED EXHAUST MANIF. ASSY |
| 2 | 4813566 | EXH. MANIFOLD GKT |
| 3 | 16100821 | HEXAGON NUT M8 |
| 4 | 10284460 | SEAL GASKET Ø10X16 MM |
| 5 | 11903140 | PLUG M10X1,25 |
| 6 | 13516821 | STUD M8X12X20 MM |
| 7 | 14282770 | LOCK PLUG Ø36 MM |
| 8 | 13453721 | STUD M10X25X30 |
| 9 | 11194089 | WASHER |
| 10 | 13517330 | STUD M8X12X35 |
| 11 | 13518230 | STUD M8X12X80 |
| 12 | 13952230 | STUD M18X12X85 |
