8061SRM27.10

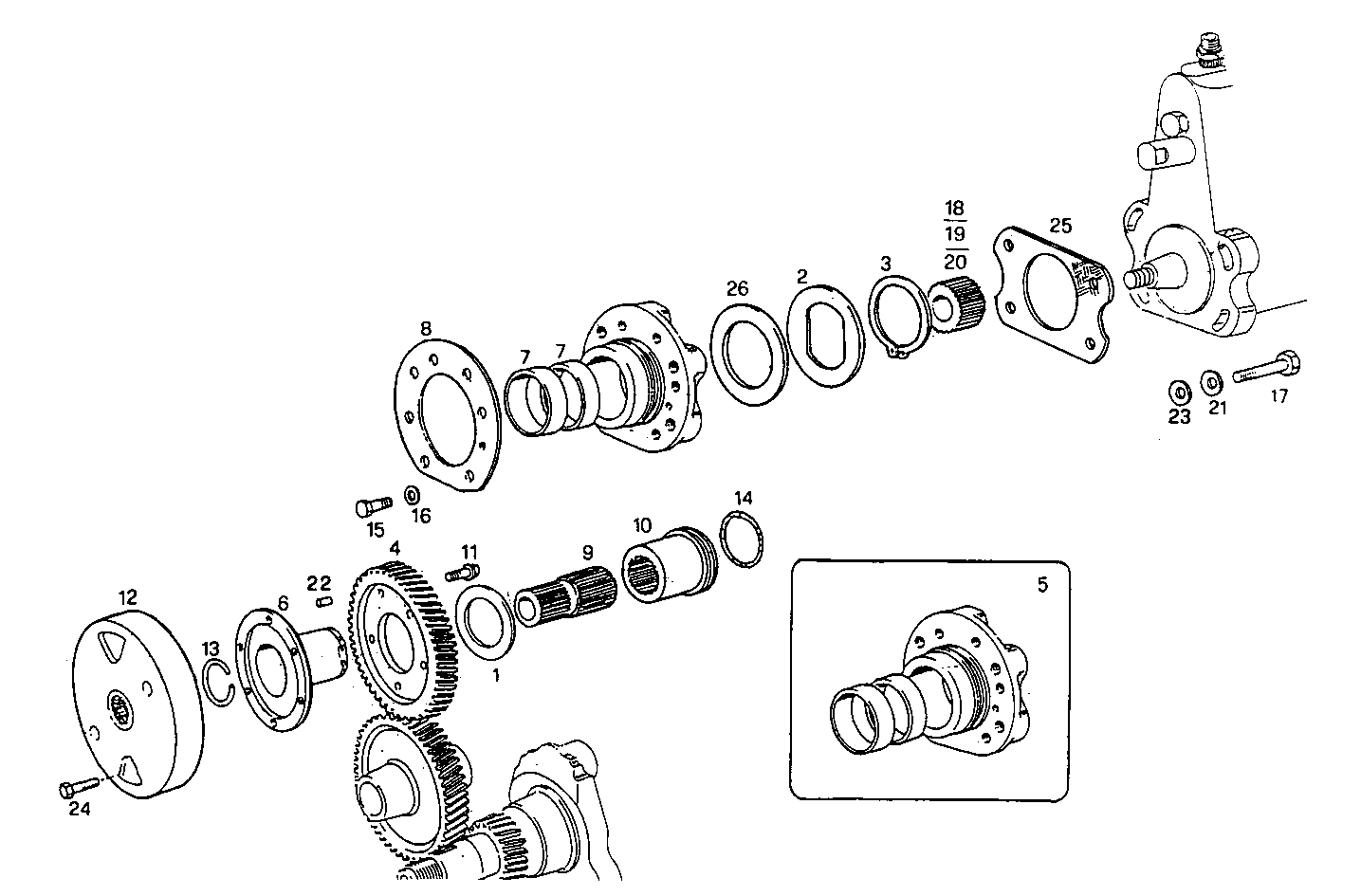

1410.074 INJECTION PUMP DRIVE

Iveco/FPT INJECTION PUMP DRIVE

Item Part number Description
1 4809425 WASHER Ø50 MM
2 4667498 WASHER
3 4708213 CIRCLIP
4 4769422 INJ.PUMP DRIV.GEA
5 4869424 SUPPORT ASSY
6 4769426 INJECT.PUMP SPIND
7 4769427 BUSH VANDERVELL
8 4769429 FLAT ENGINE GASKET
9 4769430 INJECT.PUMP SLEEVE
10 4769431 INJECT.PUMP BUSH
11 4798845 SCREW
12 4779607 ADVANCE UNIT ASSY WEBER ALTECNA
13 13421376 CIRCLIP Ø30 MM
14 14458581 O-RING Ø36,17 MM SP=2,62 MM
15 16043621 HEXAGON BOLT M8X25 MM
16 10519601 WASHER Ø8X17 MM
17 11234721 HEXAGON BOLT M10X1,25X45 MM
18 4782547 INJECT.PUMP BUSH 138° 30'
19 4807015 GEAR 141Ø30'
20 4807016 INJECT.PUMP BUSH 135° 30'
21 11198371 SPRING WASHER Ø10X20 MM
22 10489510 PARALLEL PIN M6X12 MM
23 759850 WASHER Ø10X21X2 MM
24 4794007 SCREW
25 561353 FLAT ENGINE GASKET
26 4604833 WASHER
