8061SRM27.10

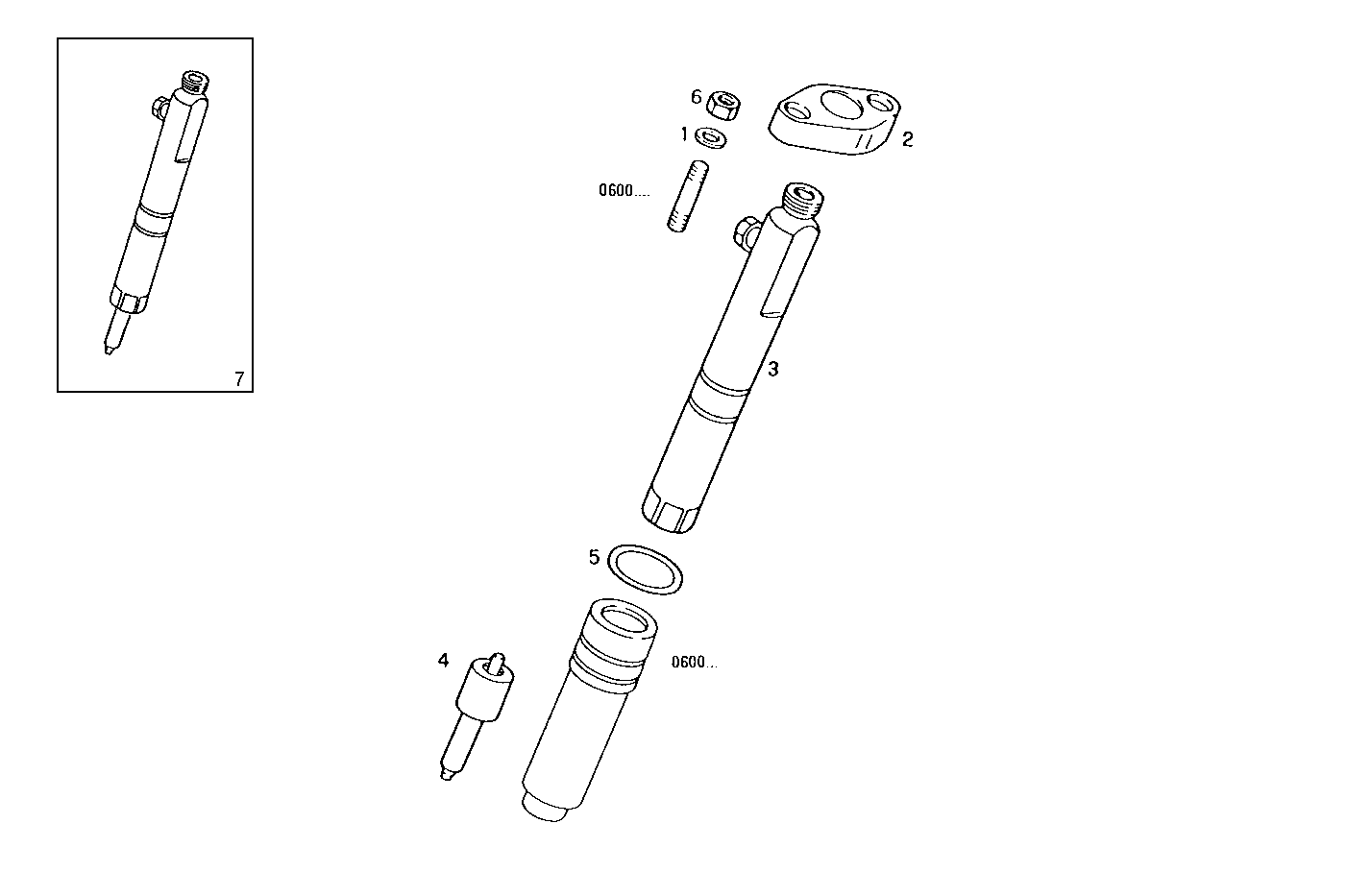

1420.100 INJECTORS
Item | Part number | Description |
---|---|---|
1 | 771326 | WASHER Ø11,5 MM |
2 | 4780612 | FASTENING BRACKET |
3 | 8012621 | NOZZLE HOLDER ASSY STANADYNE |
4 | 8012677 | FUEL NOZZLE |
5 | 17278589 | O-RING Ø18,77 MM SP=1,78 MM |
6 | 17037931 | HEXAGON NUT M8X1,25 |
7 | 8011945 | NOZZLE |
