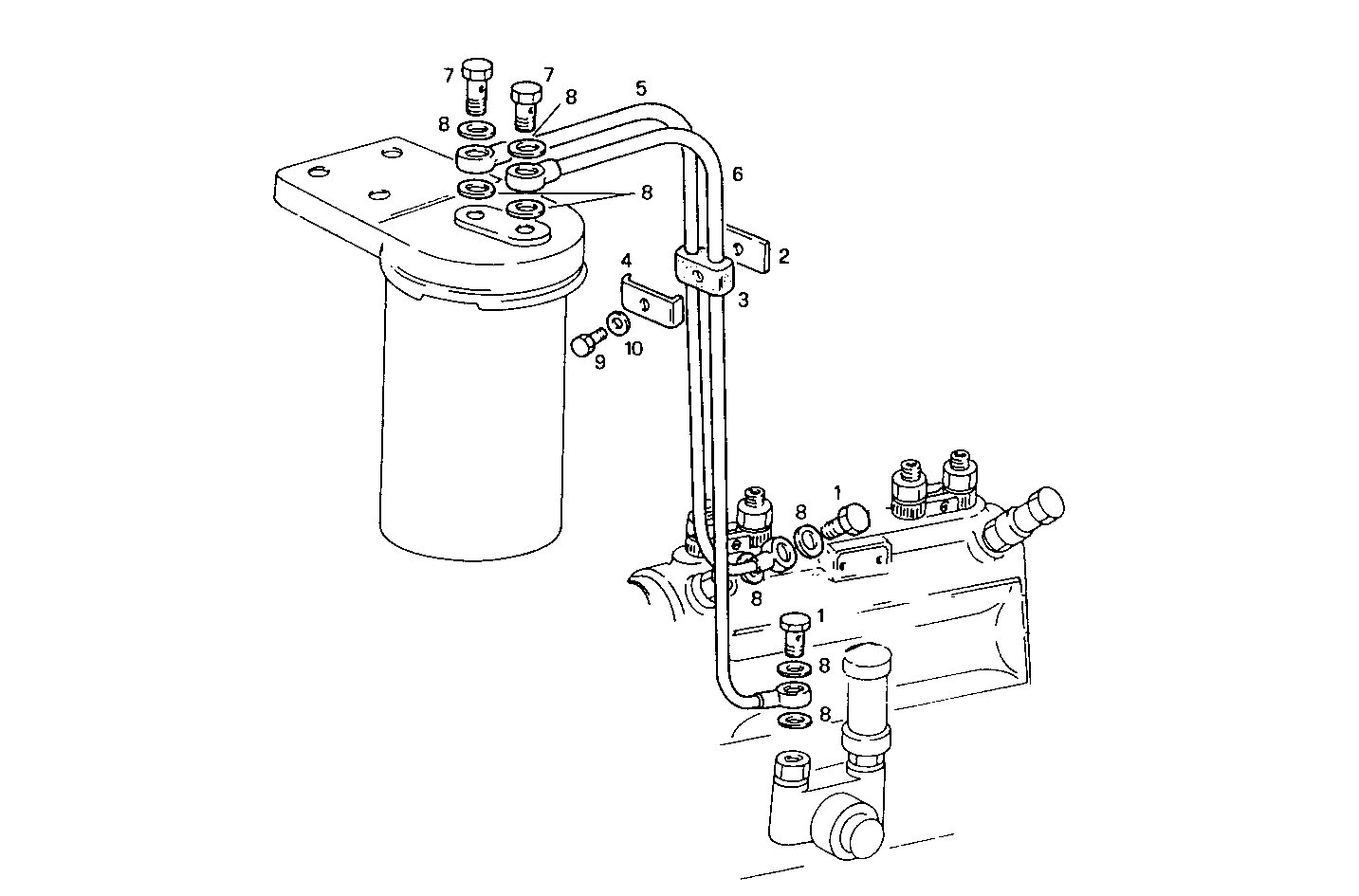

2030.010 FUEL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 705737 | SCREW CONNECTOR |
| 2 | 4659219 | PLATE |
| 3 | 4659217 | DOWEL |
| 4 | 4659218 | CLIP |
| 5 | 8111246 | FUEL LINE |
| 6 | 8111245 | FUEL LINE |
| 7 | 10184317 | SCREW CONNECTOR M14X1,5 |
| 8 | 10280060 | WASHER Ø14X20 MM SP=1,5 MM |
| 9 | 10978221 | HEXAGON BOLT M5X25 MM |
| 10 | 12601179 | WASHER |
