8061SRM27.10

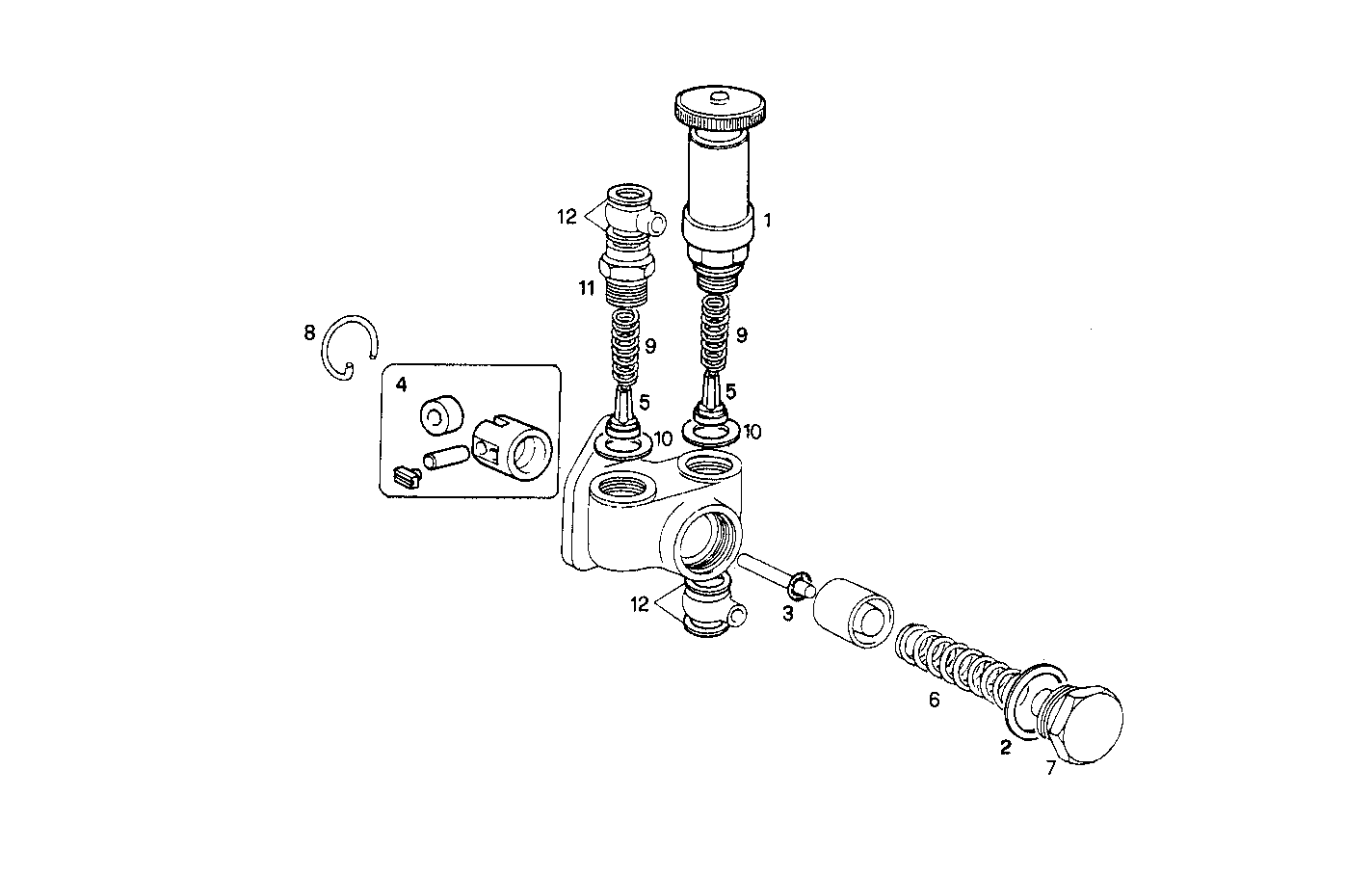

2040.004 FUEL PUMP (COMPONENTS)

Iveco/FPT FUEL PUMP (COMPONENTS)

Item Part number Description
1 774417 PUMP
2 772115 GASKET
3 772117 O-RING
4 775121 ROLLER TAPPET
5 772125 VALVE
6 772114 SPRING
7 773437 THREADED PLUG
8 772124 CIRCLIP
9 772127 SPRING
10 772056 GASKET
11 773442 THREADED UNION
12 746152 GASKET
