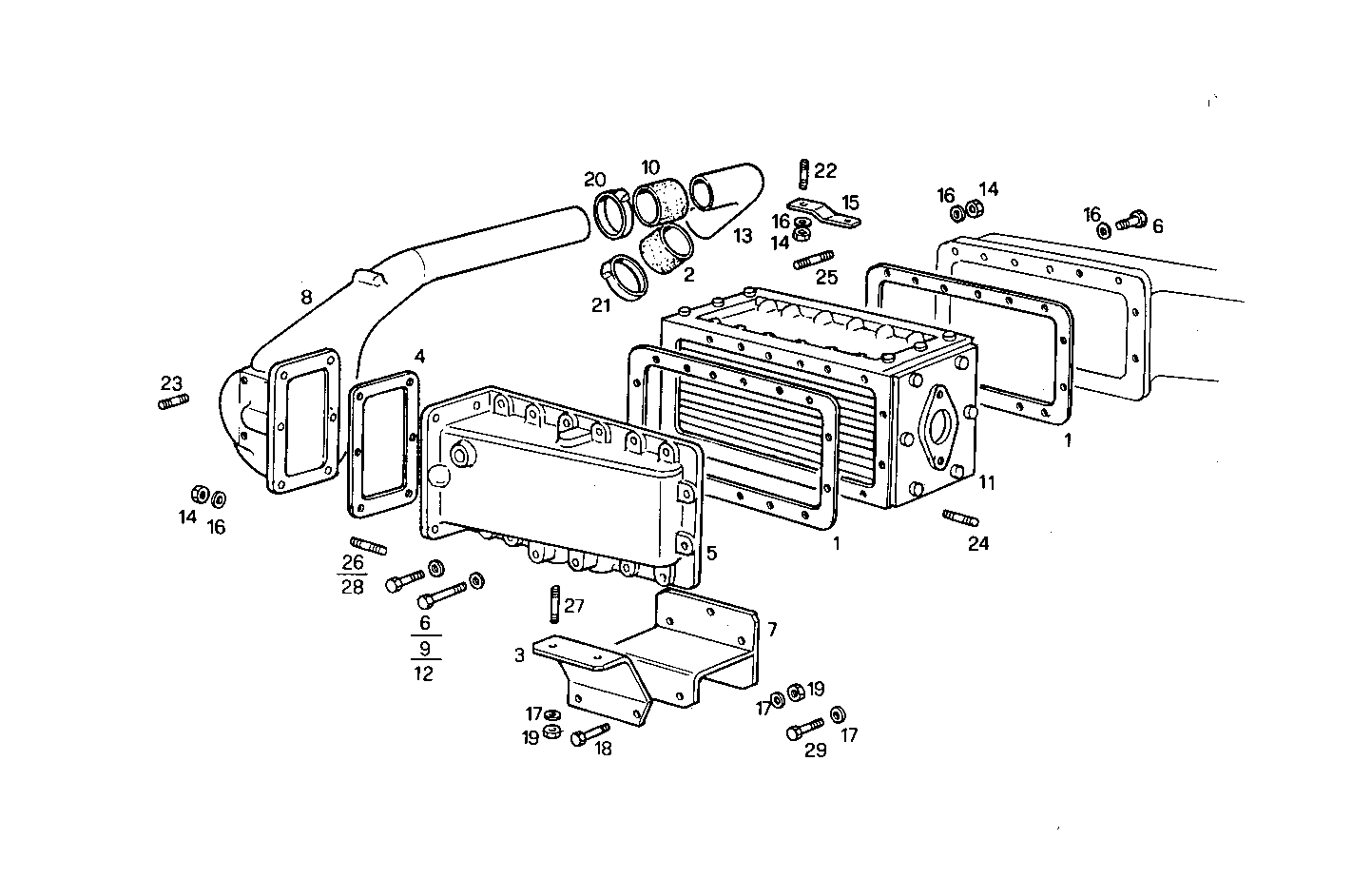

| Item |
Part number |
Description |
|
1 |
8009918 |
GASKET |
|
2 |
4919165 |
WATER HOSE |
|
3 |
4936720 |
SUPPORT |
|
4 |
4936792 |
GASKET |
|
5 |
4936678 |
AIR MANIFOLD |
|
6 |
16605734 |
HEXAGON BOLT M8X30 MM |
|
7 |
8108343 |
SUPPORT |
|
8 |
8110232 |
AIR MANIFOLD |
|
9 |
16606324 |
HEXAGON BOLT M8X60 MM |
|
10 |
8110411 |
RUBBER SLEEVE |
|
11 |
8110529 |
AIR/WATER HEAT EXCHANGER LANGERER |
|
12 |
16606124 |
HEXAGON BOLT M8X50 MM |
|
13 |
8110592 |
INTAKE ELBOW |
|
14 |
17037931 |
HEXAGON NUT M8X1,25 |
|
15 |
8113476 |
RETAINER |
|
16 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
17 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
18 |
11306921 |
SCREW M10X1,25X30 |
|
19 |
17038221 |
HEXAGON NUT M10 |
|
20 |
17765092 |
CLIP Ø60-80 MM |
|
21 |
17765093 |
CLIP Ø60/80 MM |
|
22 |
13516521 |
STUD M8X12 MM |
|
23 |
13516621 |
STUD M8X16 MM |
|
24 |
13516721 |
STUD M8X12X18 MM |
|
25 |
16729324 |
STUD M8X12X20 MM |
|
26 |
13518121 |
STUD M8X12X75 |
|
27 |
13449521 |
STUD M10X15X25 |
|
28 |
13517021 |
STUD M8X25 MM |
|
29 |
15004021 |
HEXAGON BOLT M10X1,25X25 MM |
