8061SRM27.10

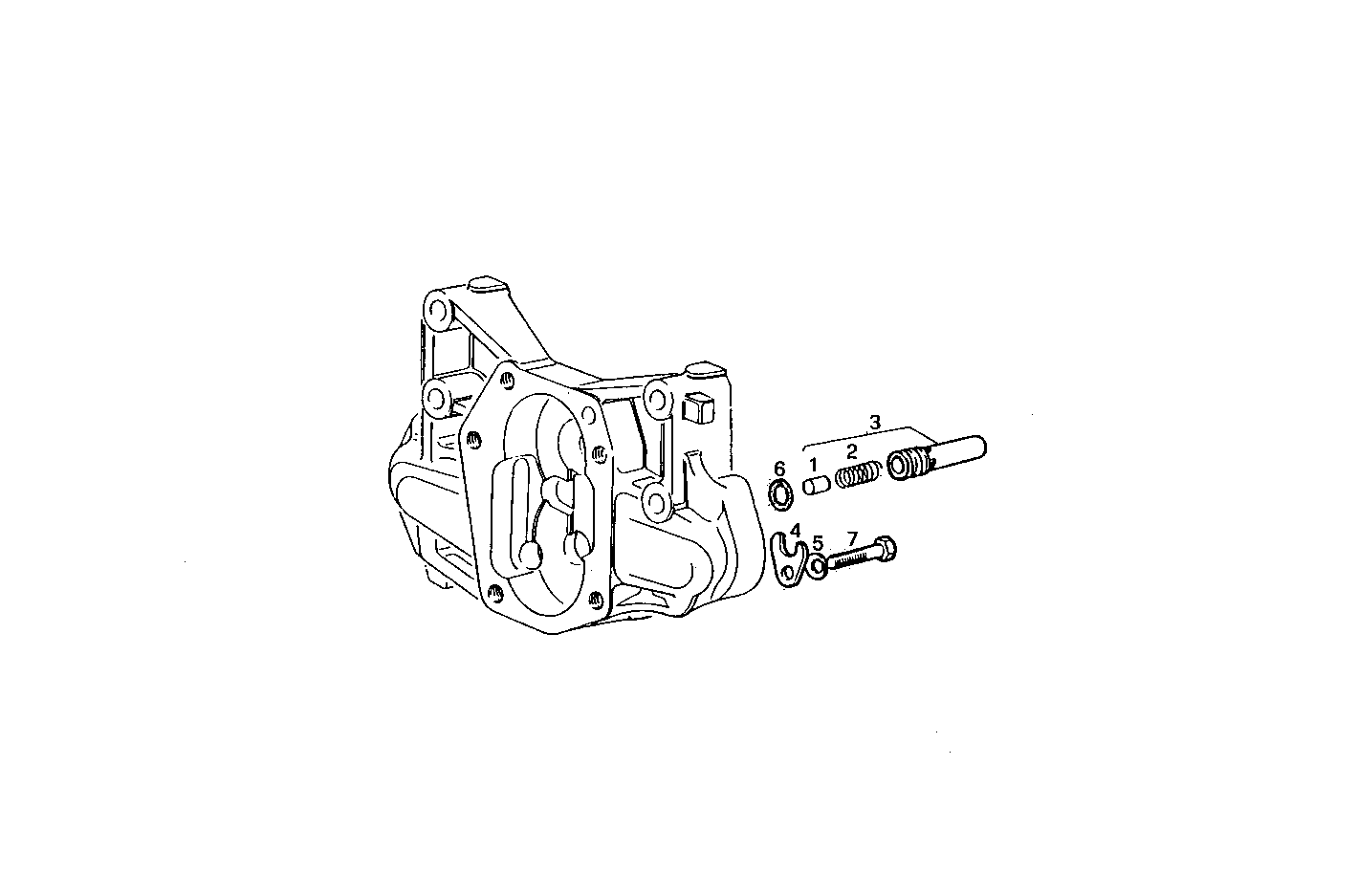

3030.006 OIL PRESSURE VALVE
| Item | Part number | Description |
|---|---|---|
| 1 | 4672842 | VALVE |
| 2 | 4802611 | OIL PUMP VALVE ASSY [from 226132] |
| 4 | 4613353 | CLEVIS |
| 5 | 17089574 | WASHER Ø8X16 MM |
| 6 | 17281781 | O-RING Ø15,5 MM SP=2,6 MM |
| 7 | 16605524 | HEXAGON BOLT M8X20 MM |
