8061SRM27.10

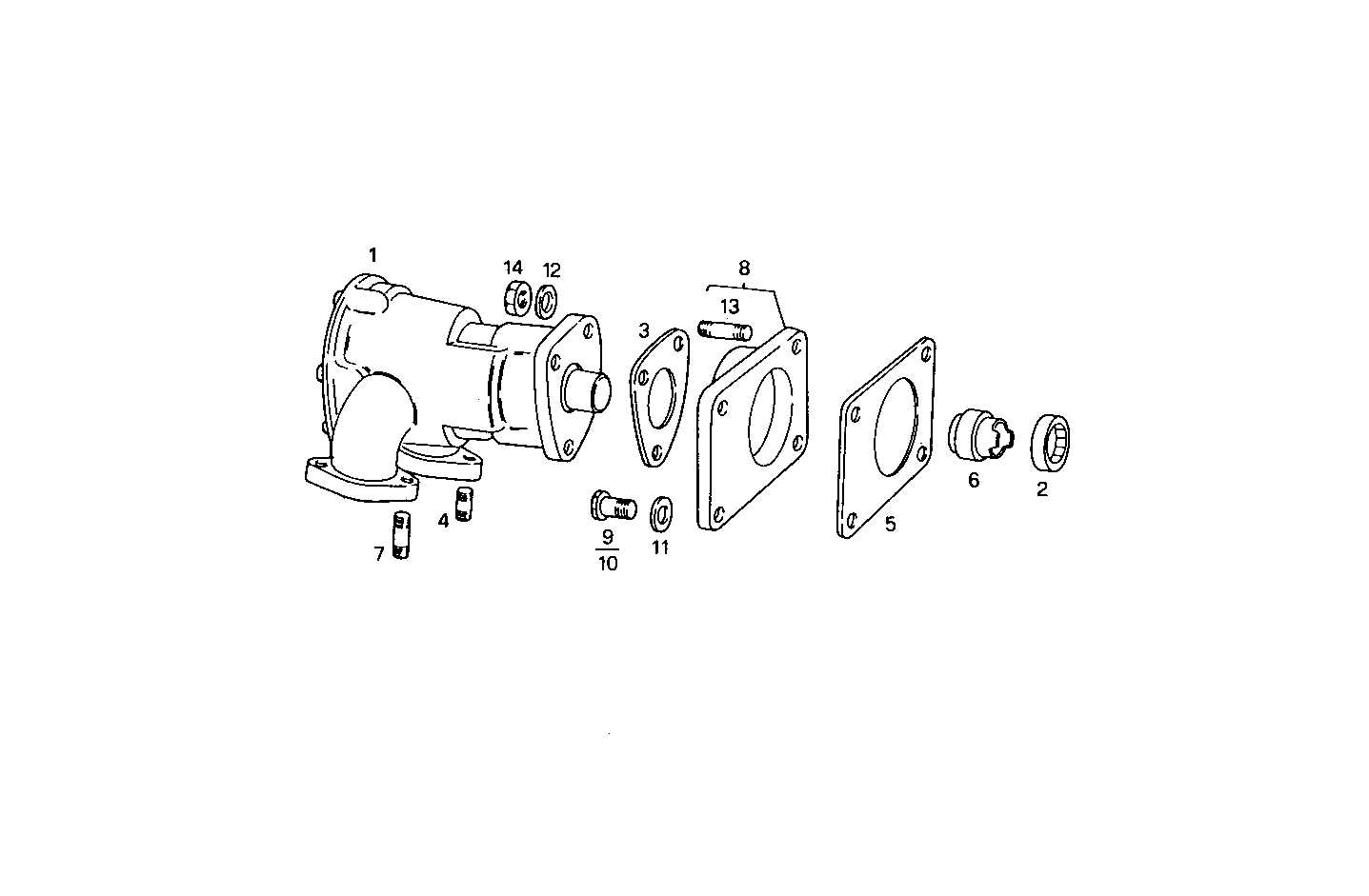

3380.003/01 SEA WATER PUMP - JABSCO

Iveco/FPT SEA WATER PUMP

Item Part number Description
1 4912783 SEA WATER PUMP ASSY JABSCO
2 4621358 RING
3 8008734 GASKET
4 4910007 STUD
5 4850986 FLAT ENGINE GASKET
6 4934315 COUPLER
7 8101122 STUD
8 8101337 SUPPORT ASSY
9 10902421 HEXAGON BOLT M6X20 MM
10 10902621 SCREW M6X25 MM
11 11197779 SPRING WASHER Ø6X12 MM
12 11194079 SPRING WASHER Ø8X16 MM SP=1,9 MM
13 13516821 STUD M8X12X20 MM
14 17037931 HEXAGON NUT M8X1,25
