8061SRM27.10

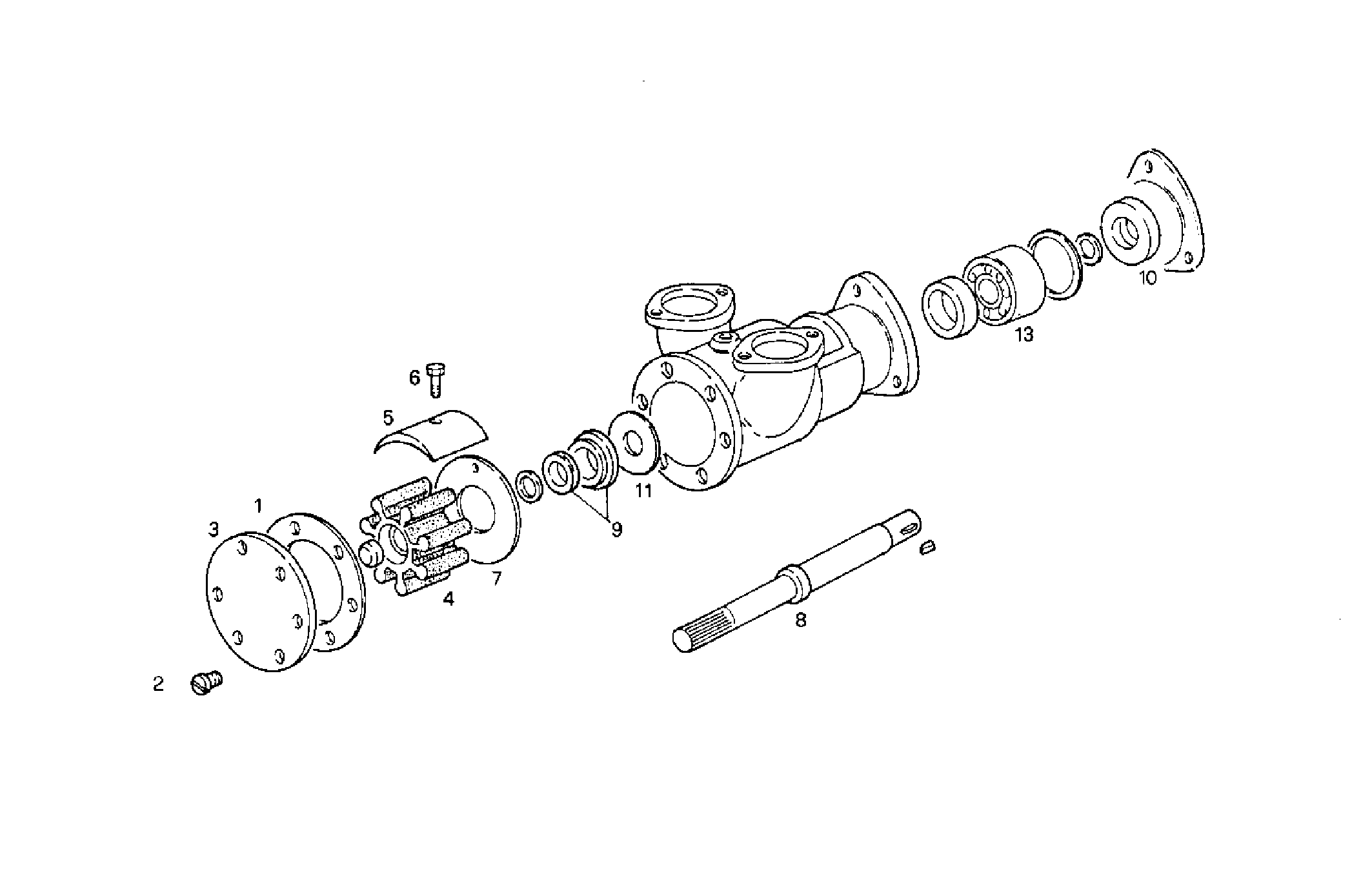

3380.003/02 SEA WATER PUMP - JABSCO
Item | Part number | Description |
---|---|---|
1 | 4914944 | GASKET |
2 | 4914931 | SCREW |
3 | 4914945 | COVER |
4 | 8112172 | SEA WATER PUMP IMPELL. |
5 | 4914942 | RETAINING CAM |
6 | 8093336 | SCREW |
7 | 4914941 | WASHER |
8 | 4914964 | SHAFT |
9 | 8093335 | WASHER |
10 | 4917258 | GASKET |
11 | 4914952 | WASHER |
13 | 8093337 | DRIVE BEARING |
