8061SRM27.10

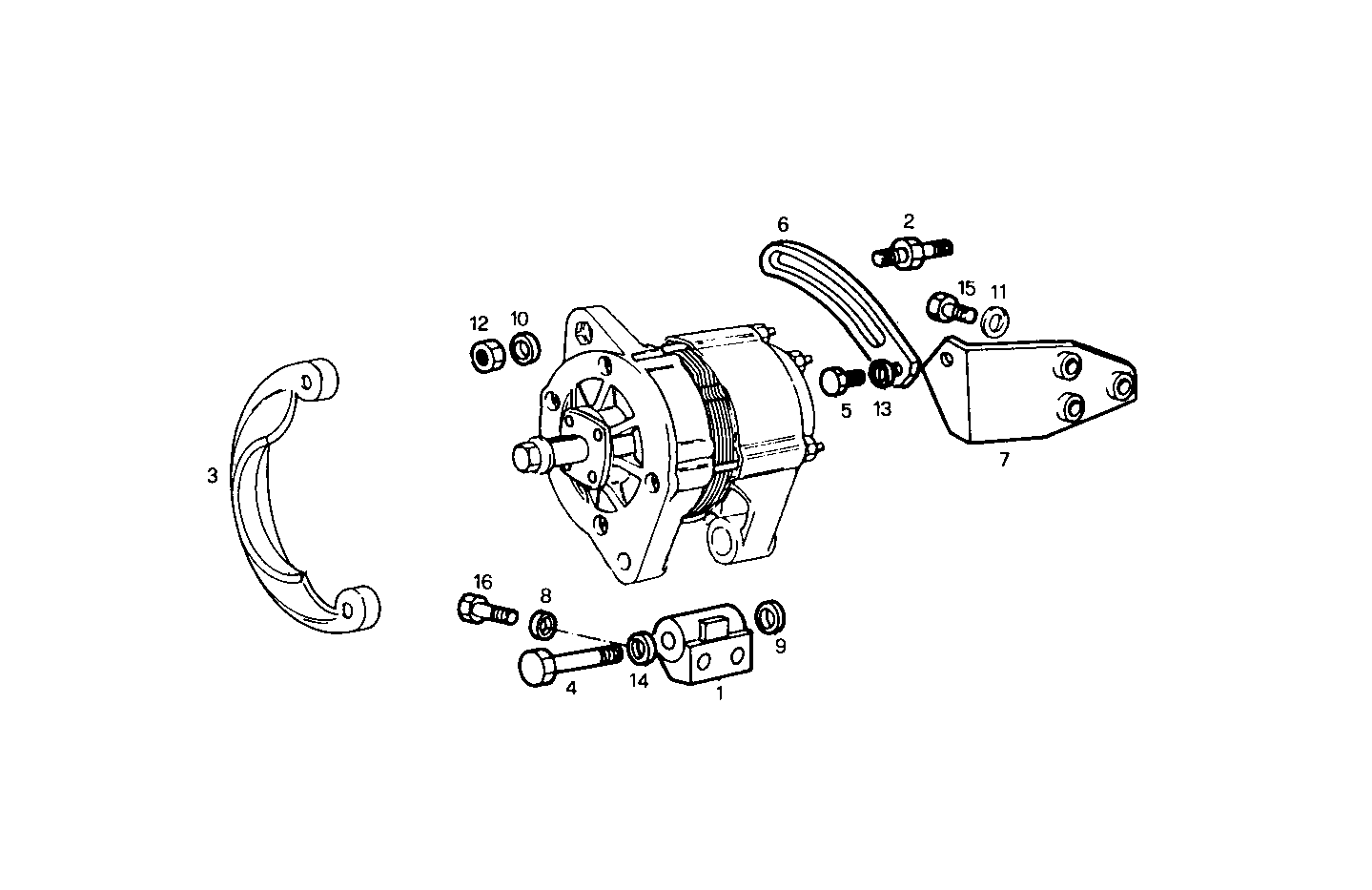

4010.006 MOUNT
| Item | Part number | Description |
|---|---|---|
| 1 | 4600128 | GENERATOR SUPPORT |
| 2 | 4605854 | STUD |
| 3 | 4618825 | PROTECTION |
| 4 | 4936776 | SCREW |
| 5 | 4936777 | STUD |
| 6 | 8100520 | BELT TENSIONER |
| 7 | 8108790 | SUPPORT |
| 8 | 11193879 | SPRING WASHER Ø8X16 MM |
| 9 | 11198679 | SPRING WASHER Ø13 MM |
| 10 | 11198379 | SPRING WASHER Ø10X20 MM SP=2,6 |
| 11 | 11194079 | SPRING WASHER Ø8X16 MM SP=1,9 MM |
| 12 | 12164711 | HEXAGON NUT M10X1,25 |
| 13 | 12646801 | WASHER Ø10,2 MM |
| 14 | 12646901 | WASHER Ø12X28 MM |
| 15 | 16043621 | HEXAGON BOLT M8X25 MM |
| 16 | 16044221 | HEXAGON BOLT M8X50 MM |
