8061SRM27.10

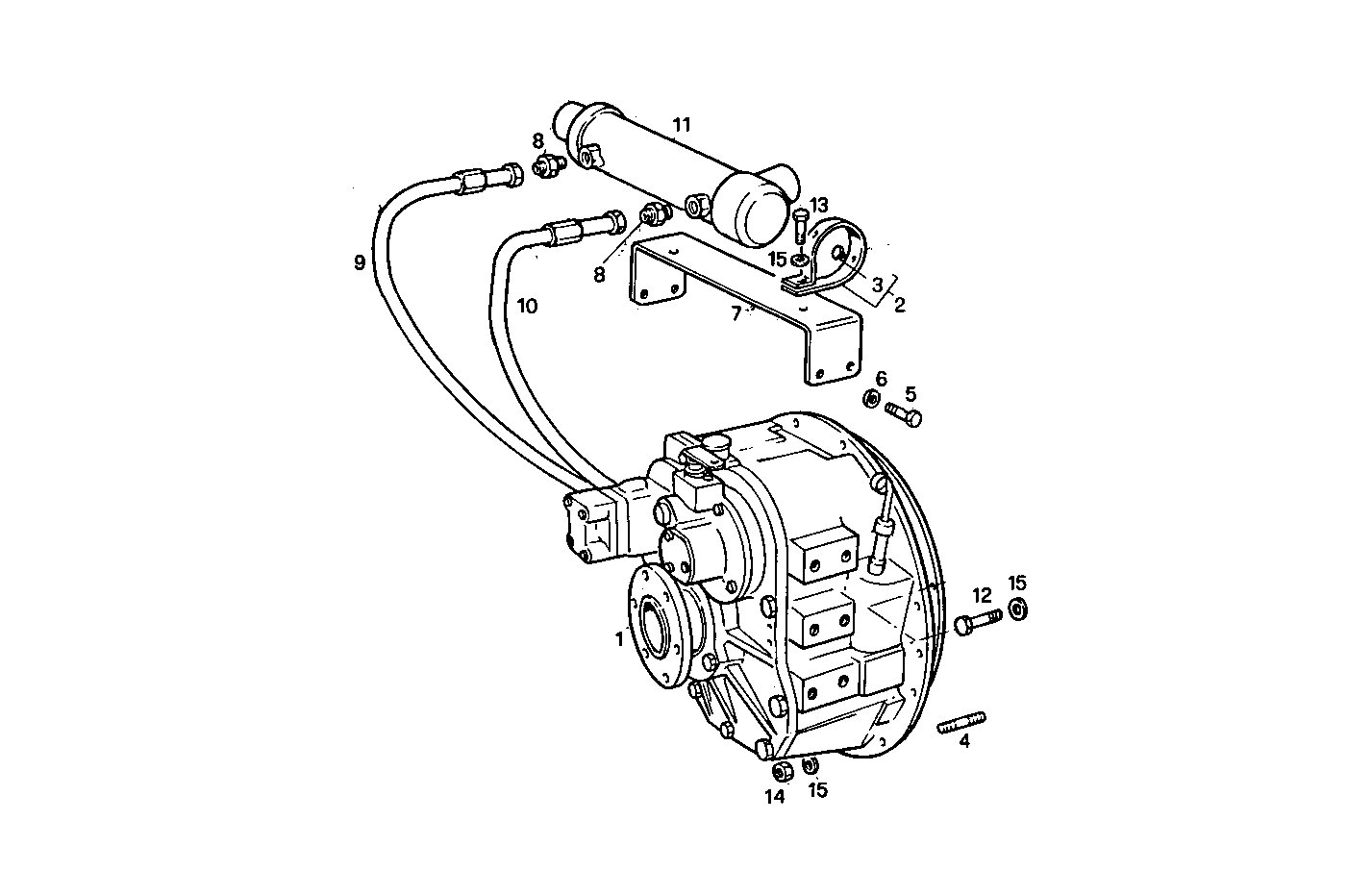

A51140014/01 MARINE GEAR TWIN DISC MG 506-1 - ratio 1.09:1
| Item | Part number | Description |
|---|---|---|
| 1 | 8108637 | MARINE GEAR 1,09:1 |
| 2 | 8013591 | CLIP ASSY [up to 06-93] |
| 3 | 4568427 | RUBBER PAD |
| 4 | 13449521 | STUD M10X15X25 |
| 5 | 4927934 | SCREW |
| 6 | 11198679 | SPRING WASHER Ø13 MM |
| 7 | 8100258 | RETAINER |
| 8 | 4935465 | PIPE SOCKET |
| 9 | 8108752 | OIL HOSE |
| 10 | 4935780 | OIL HOSE |
| 11 | 4919188 | MARINE GEAR OIL HEAT EXCH ASSY |
| 12 | 15970921 | HEXAGON BOLT M10X1,25X35 MM |
| 13 | 15970421 | HEXAGON BOLT M10X18 MM |
| 14 | 12164711 | HEXAGON NUT M10X1,25 |
| 15 | 11198379 | SPRING WASHER Ø10X20 MM SP=2,6 |
