8061SRM27.10

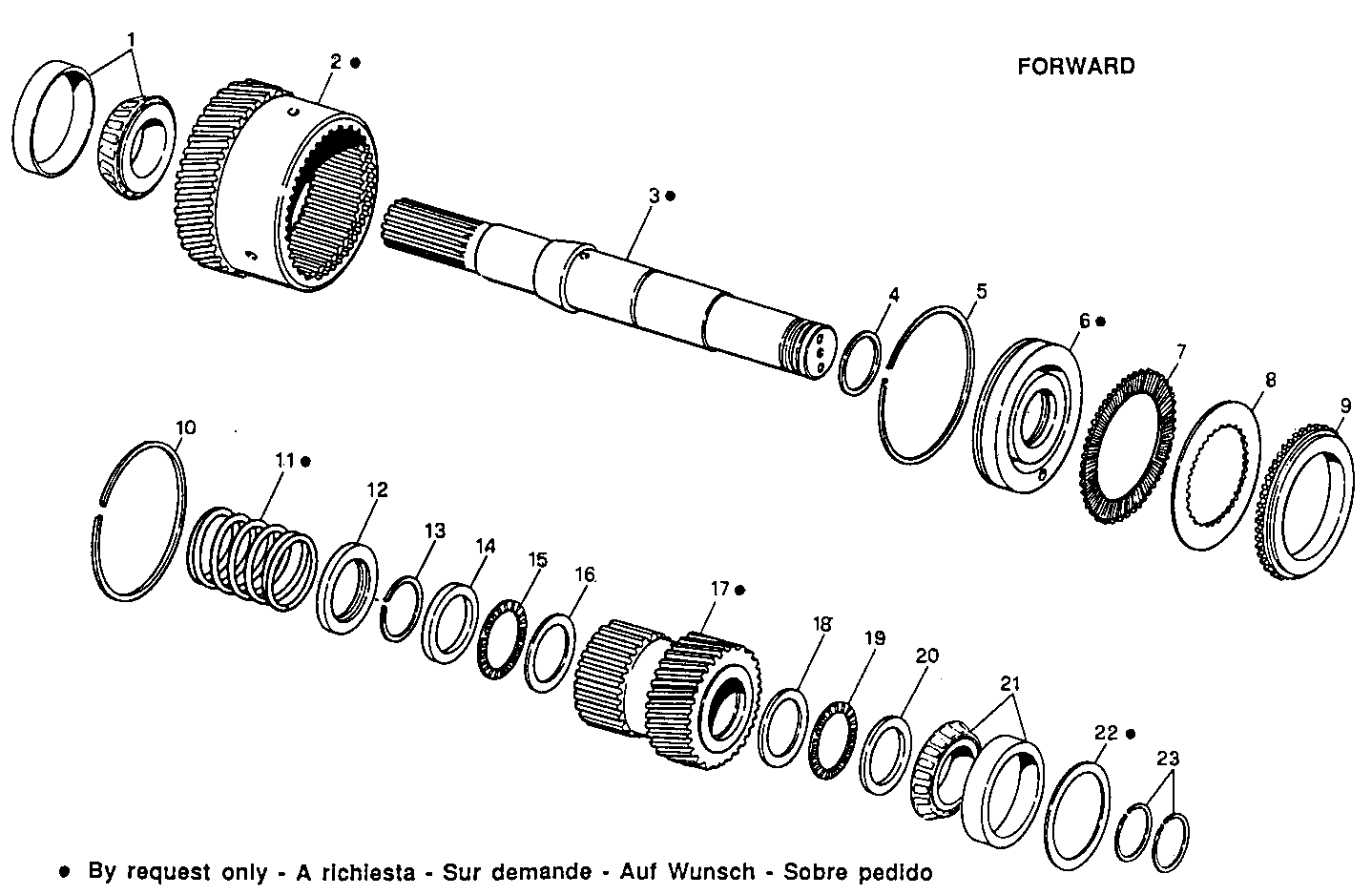

T5113001/04 MARINE GEAR - (components)
Item | Part number | Description |
---|---|---|
1 | 8090571 | DRIVE BEARING |
4 | 8090572 | RING |
5 | 8090573 | CIRCLIP |
7 | 8090574 | RING |
7 | 8090691 | RING SINTERED ONE SIDE |
8 | 8090575 | RING |
9 | 8090576 | RING |
10 | 8090577 | CIRCLIP |
12 | 8090578 | WASHER |
13 | 8090579 | CIRCLIP |
14 | 8090580 | WASHER |
15 | 8090472 | DRIVE BEARING |
16 | 8090581 | WASHER |
20 | 8090582 | WASHER |
21 | 8090583 | DRIVE BEARING |
23 | 8090473 | CIRCLIP |
