8061SRM30.10

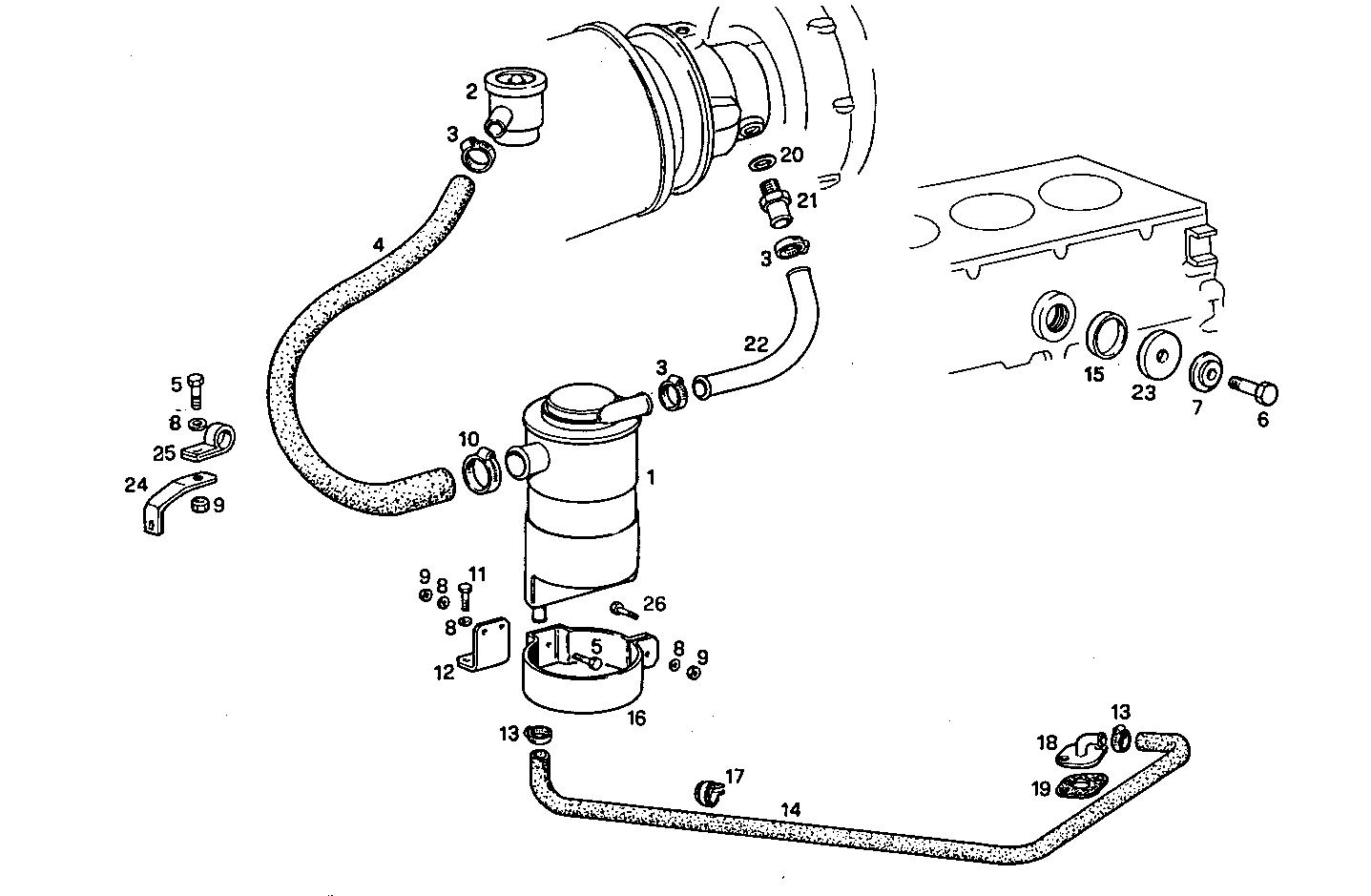

0450.054 ENGINE BREATHERS
Item | Part number | Description |
---|---|---|
1 | 7303441 | BREATHER [up to 03-97] |
2 | 4812047 | BREATHER |
3 | 17764593 | CLIP Ø20/32 MM |
4 | 8014439 | AIR HOSE [up to 03-97] |
5 | 16605524 | HEXAGON BOLT M8X20 MM |
6 | 16605924 | SCREW M8X40 MM |
7 | 4716734 | WASHER |
8 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
9 | 17037931 | HEXAGON NUT M8X1,25 |
10 | 17764693 | CLIP Ø25/40 MM |
11 | 16605424 | SCREW M8X16 MM (8.8) |
12 | 8013324 | SUPPORT [up to 03-97] |
13 | 18088392 | CLIP Ø16/25 MM |
14 | 8013352 | OIL HOSE [up to 03-97] |
15 | 4811892 | COVER |
16 | 4860370 | SUPPORT [up to 03-97] |
17 | 4936277 | CLIP [up to 03-97] |
18 | 8013356 | FLANGE [up to 03-97] |
19 | 98418621 | GASKET |
20 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
21 | 8012720 | PIPE SOCKET |
22 | 8013466 | WATER HOSE [up to 03-97] |
23 | 4600893 | GASKET |
24 | 8007133 | RETAINER |
25 | 4751576 | RETAINER |
26 | 16605734 | HEXAGON BOLT M8X30 MM |
