8061SRM30.10

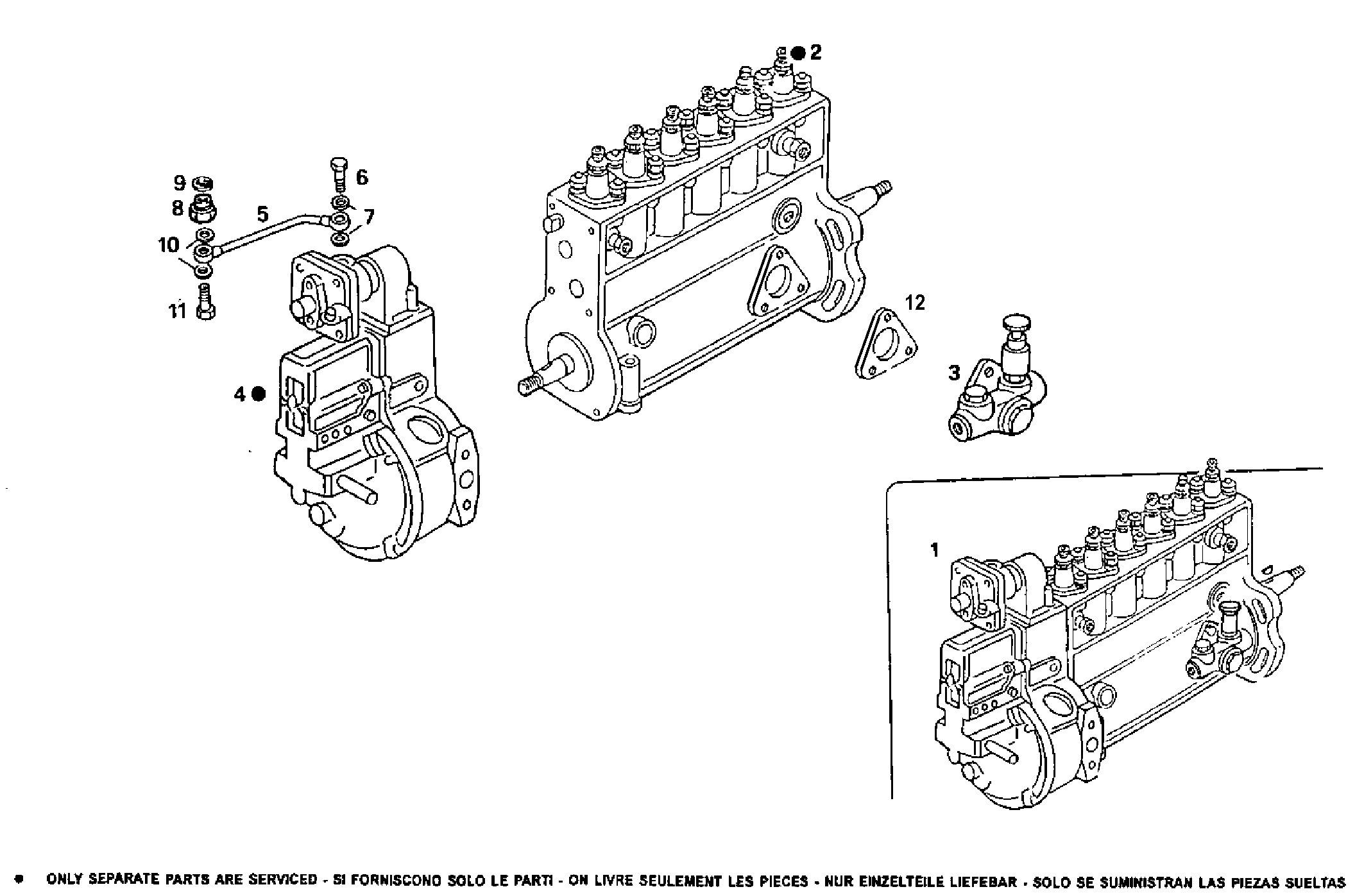

1400.288 INJECTION PUMP ASSY [D 10-1993] [from10-1993]
| Item | Part number | Description |
|---|---|---|
| 1 | 8011600 | INLINE INJECT.PUMP ASSY |
| 3 | 8092817 | FUEL PUMP |
| 5 | 8018669 | HOSE L=700 MM |
| 6 | 4864082 | BANJO BOLT M12X1,5X25 MM |
| 7 | 98474306 | WASHER Ø12X20 MM SP=1,9 MM |
| 8 | 8111352 | PIPE SOCKET |
| 9 | 4854610 | GASKET |
| 10 | 98474308 | SEAL GASKET Ø14X22 MM |
| 11 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
| 12 | 93191164 | SEAL GASKET |
